H05VV-F/ H05VVH2-F

Understanding H05VV-F and H05VVH2-F German Standard (VDE) Industrial Cables

H05VV-F/ H05VVH2-F

Application and Description

These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications.

These cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts.

They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct system, max operating voltage is Uo/U 413/825 volts.

Standard and Approval

  • CEI 20-20/5 / 20-35 (EN60332-1) /20-52,

  • 0.5 - 2.5mm^2 to BS6500, 4.0mm^2 to BS7919, 6.0mm^2 generally to BS7919,

  • CENELEC HD21.5, CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant

Cable Construction

Technical Characteristics

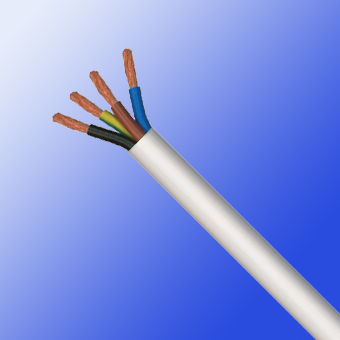

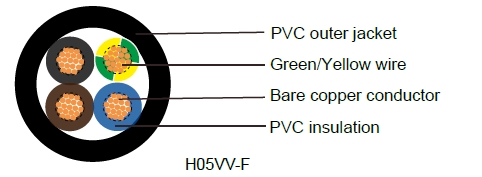

Bare copper fine wire conductor

Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383

PVC core insulation TI2 to VDE-0281 Part 1

Color coded to VDE-0293-308

Green-yellow grounding (3 conductors and above)

PVC outer jacket TM2



Working voltage

300/500 volts

Test voltage

2000 volts

Flexing bending radius

7.5 x O

Static bending radius

4 x O

Flexing temperature

-5oC to +70oC

Static temperature

-40oC to +70oC

Short circuit temperature

+160oC

Flame retardant

IEC 60332.1

Insulation resistance

20 MΩ x km

Cable Parameter

AWG

No. of Cores x Nominal Cross Sectional Area

Nominal Thickness of Insulation

Nominal Thickness of Sheath

Nominal Overall Diameter

Nominal Copper Weight

Nominal Weight



# x mm^2

mm

mm

mm

kg/km

kg/km

H05VV-F

18(24/32)

2 x 0.75

0.6

0.8

6.4

14.4

57

18(24/32)

3 x 0.75

0.6

0.8

6.8

21.6

68

18(24/32)

4 x 0.75

0.6

0.8

7.4

29

84

18(24/32)

5 x 0.75

0.6

0.9

8.5

36

106

17(32/32)

2 x 1.00

0.6

0.8

6.8

19

65

17(32/32)

3 x 1.00

0.6

0.8

7.2

29

79

17(32/32)

4 x 1.00

0.6

0.9

8.0

38

101

17(32/32)

5 x 1.00

0.6

0.9

8.8

48

123

16(30/30)

2 x 1.50

0.7

0.8

7.6

29

87

16(30/30)

3 x 1.50

0.7

0.9

8.2

43

111

16(30/30)

4 x 1.50

0.7

1.0

9.2

58

142

16(30/30)

5 x 1.50

0.7

1.1

10.5

72

176

14(50/30)

2 x 2.50

0.8

1.0

9.2

48

134

14(50/30)

3 x 2.50

0.8

1.1

10.1

72

169

14(50/30)

4 x 2.50

0.8

1.1

11.2

96

211

14(50/30)

5 x 2.50

0.8

1.2

12.4

120

262

12(56/28)

3 x 4.00

0.8

1.2

11.3

115

233

12(56/28)

4 x 4.00

0.8

1.2

12.5

154

292

12(56/28)

5 x 4.00

0.8

1.4

13.7

192

369

10(84/28)

3 x 6.00

0.8

1.1

13.1

181

328

10(84/28)

4 x 6.00

0.8

1.3

13.9

230

490

H05VVH2-F

18(24/32)

2 x 0.75

0.6

0.8

4.2 x 6.8

14.4

48

17(32/32)

2 x 1.00

0.6

0.8

4.4 x 7.2

19.2

57

What Are H05VV-F and H05VVH2-F Cables?

H05VV-F and H05VVH2-F cables are flexible, PVC-insulated power cables designed for use in damp and wet environments. The "H" in their designation indicates they are harmonized European cables, while "05" refers to their voltage rating of 300/500 volts. The "VV" signifies PVC insulation and sheathing, and the "F" indicates a flexible, fine-wire conductor. The H05VVH2-F variant is a flat cable, distinguished by its "H2" designation, which makes it suitable for specific applications where a flat profile is advantageous.

These cables are commonly used in household appliances such as refrigerators, washing machines, and spin dryers, provided they meet equipment specifications. They are also suitable for fixed installations in furniture, partition walls, and prefabricated building components. However, they are not designed for outdoor use, industrial applications (except clothing manufacture), or farming environments.

Standards and Approvals

H05VV-F and H05VVH2-F cables comply with rigorous European standards, ensuring safety and performance:

  • CEI 20-20/5, 20-35 (EN60332-1), 20-52: Italian standards for cable construction and fire resistance.

  • BS6500 (0.5–2.5 mm²), BS7919 (4.0–6.0 mm²): British standards for flexible cables.

  • CENELEC HD21.5: European harmonized standard for PVC-insulated cables.

  • CE Low Voltage Directive (73/23/EEC & 93/68/EEC): Ensures compliance with EU safety requirements.

  • RoHS Compliance: Restricts hazardous substances, making the cables environmentally friendly.

These standards make the cables suitable for use across Europe and in regions like South Africa, where international standards are often adopted.

Applications of H05VV-F and H05VVH2-F Cables

These cables are versatile, with applications in both domestic and commercial settings:

  • Household Appliances: Used in refrigerators, washing machines, and spin dryers, where flexibility and resistance to moisture are crucial.

  • Cooking and Heating Apparatus: Suitable provided they do not contact hot surfaces directly.

  • Fixed Installations: Ideal for wiring in furniture, partition walls, decorative coverings, and prefabricated building parts.

  • Limitations: Not suitable for outdoor use, industrial applications (except clothing manufacture), or farming due to their specific design constraints.

The flat H05VVH2-F variant is particularly useful in applications requiring a low-profile cable, such as under carpets or in tight spaces.

Frequently Asked Questions (FAQs)

1. What is the difference between H05VV-F and H05VVH2-F cables?

H05VV-F is a round cable, while H05VVH2-F is a flat cable. The flat design of H05VVH2-F is ideal for applications requiring a low profile, such as under carpets or in tight spaces.

2. Can these cables be used outdoors?

No, H05VV-F and H05VVH2-F cables are not suitable for outdoor use due to their design, which is optimized for indoor, damp, or wet environments.

3. Are these cables safe for high-temperature environments?

They can be used in cooking or heating appliances but must not contact hot surfaces directly. They withstand short-circuit temperatures up to +160°C.

4. How do these cables comply with South African regulations?

While South Africa has its own standards (e.g., SANS 10142-1), H05VV-F and H05VVH2-F cables meet international standards like CE and RoHS, which are widely accepted in South Africa.

5. What is the significance of VDE certification?

VDE (Verband der Elektrotechnik) certification ensures cables meet stringent German safety and performance standards, widely recognized globally for quality.

H05VV-F and H05VVH2-F cables are vital components in modern electrical systems, offering flexibility, safety, and compliance with international standards. Their applications in household appliances and fixed installations make them indispensable in both domestic and commercial settings. In South Africa, these cables support the growing appliance manufacturing and prefabricated housing sectors while addressing safety and sustainability concerns. By understanding their technical specifications and applications, consumers and professionals can make informed choices, ensuring reliable and safe electrical installations.
