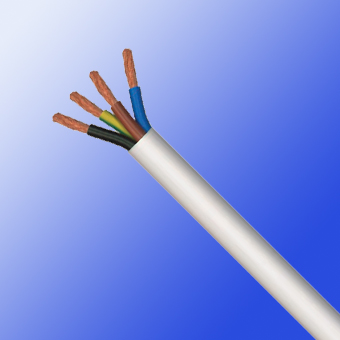

H05VV-F/H05VVH2-F
Application and Description
These cables are suited for medium mechanical stress in damp and wet environments such as refrigerators, washing machines, spin dryers and other appliances, as long as it meets applicable equipment specifications. These cables are also suited for cooking and heating apparatus, provided that the cable does not come into direct contact with the hot parts of the apparatus or with any other heat source. Further applications of this cable include: Fixed installation in furniture, partition walls, decorative covering, and in the hollow spaces of prefabricated building parts. They are not suitable for outdoor use, industrial (except clothing manufacture) or farming applications. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct system, max operating voltage is Uo/U 413/825 volts.
Standard and Approval
CEI 20-20/5 / 20-35 (EN60332-1) /20-52,
0.5 - 2.5mm² to BS6500, 4.0mm² to BS7919, 6.0mm² generally to BS7919,
VDE0281, CENELEC HD21.5, CE low voltage directive 73/23/EEC & 93/68/EEC, ROHS compliant

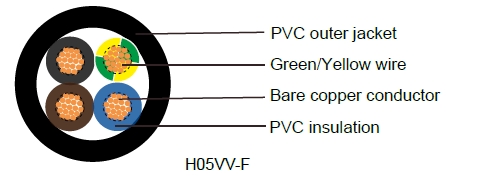

Cable Construction
- Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T12 to VDE-0281 Part 1
- Color coded to VDE-0293-308
- Green-yellow grounding (3 conductors and above)
- PVC outer jacket TM2
Technical Characteristics
- Working voltage : 300/500 volts
- Test voltage : 2000 volts
- Flexing bending radius : 7.5 x Ø
- Static bending radius : 4 x Ø
- Flexing temperature : -5º C to +70º C
- Static temperature : -40º C to +70º C
- Short circuit temperature : +160º C
- Flame retardant : IEC 60332.1
- Insulation resistance : 20 MΩ x km
Cable Parameter
AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
|---|---|---|---|---|---|---|
# × mm² | mm | mm | mm | kg/km | kg/km | |
H05VV-F | ||||||
18(24/32) | 0.6 | 0.8 | 6.4 | 14.4 | 57 | |
18(24/32) | 0.6 | 0.8 | 6.8 | 21.6 | 68 | |
18(24/32) | 0.6 | 0.8 | 7.4 | 29 | 84 | |
18(24/32) | 0.6 | 0.9 | 8.5 | 36 | 106 | |
17(32/32) | 0.6 | 0.8 | 6.8 | 19 | 65 | |
17(32/32) | 0.6 | 0.8 | 7.2 | 29 | 79 | |
17(32/32) | 0.6 | 0.9 | 8.0 | 38 | 101 | |
17(32/32) | 0.6 | 0.9 | 8.8 | 48 | 123 | |
16(30/30) | 0.7 | 0.8 | 7.6 | 29 | 87 | |
16(30/30) | 0.7 | 0.9 | 8.2 | 43 | 111 | |
16(30/30) | 0.7 | 1.0 | 9.2 | 58 | 142 | |
16(30/30) | 0.7 | 1.1 | 10.5 | 72 | 176 | |
14(50/30) | 0.8 | 1.0 | 9.2 | 48 | 134 | |
14(50/30) | 0.8 | 1.1 | 10.1 | 72 | 169 | |
14(50/30) | 0.8 | 1.1 | 11.2 | 96 | 211 | |
14(50/30) | 0.8 | 1.2 | 12.4 | 120 | 262 | |
12(56/28) | 0.8 | 1.2 | 11.3 | 115 | 233 | |
12(56/28) | 0.8 | 1.2 | 12.5 | 154 | 292 | |
12(56/28) | 0.8 | 1.4 | 13.7 | 192 | 369 | |
10(84/28) | 0.8 | 1.1 | 13.1 | 181 | 328 | |
10(84/28) | 0.8 | 1.3 | 13.9 | 230 | 490 | |
10(84/28) | 0.8 | 1.4 | 15.9 | 289 | 548 | |
H05VVH2-F | ||||||
18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 4.2 x 6.8 | 14.4 | 48 |
17(32/32) | 2 x 1.00 | 0.6 | 0.8 | 4.4 x 7.2 | 19.2 | 57 |
Introduction to H05VV-F/H05VVH2-F Cables
In South Africa, where reliable and safe electrical solutions are critical for homes, businesses, and industries, the H05VV-F and H05VVH2-F harmonized code industrial cables stand out as versatile and robust options. These cables, designed for medium mechanical stress, are widely used in appliances, fixed installations, and various indoor settings. With compliance to international standards like VDE, CEI, and BS, they ensure safety and performance in demanding environments.
What Are H05VV-F/H05VVH2-F Cables?
The H05VV-F and H05VVH2-F cables are flexible, PVC-insulated power cables designed for medium-duty applications. The "H" in their designation stands for harmonized, indicating compliance with European standards, while "05" refers to their voltage rating of 300/500 volts. The "VV" signifies PVC insulation and sheathing, and the "F" indicates a flexible, fine-wire copper conductor. The H05VVH2-F variant is a flat cable, ideal for specific applications requiring a lower profile.
These cables are built to withstand damp and wet environments, making them suitable for appliances like refrigerators, washing machines, and spin dryers. However, they are not designed for outdoor use, industrial settings (except clothing manufacture), or farming applications. Their versatility and compliance with stringent standards make them a preferred choice in South African households and select commercial settings.
Applications in South Africa
The H05VV-F and H05VVH2-F cables are ideal for a range of applications in South Africa, particularly in indoor settings with medium mechanical stress. Common uses include:
Household Appliances: These cables power appliances like washing machines, refrigerators, and spin dryers in South African homes, provided they meet equipment specifications.
Cooking and Heating Apparatus: They are suitable for devices like ovens and heaters, as long as the cable avoids direct contact with hot surfaces or other heat sources.
Fixed Installations: The cables are used in furniture, partition walls, decorative coverings, and prefabricated building components, making them popular in modern South African home designs and office fit-outs.
Specialised Settings: The H05VVH2-F’s flat design is particularly useful in tight spaces, such as under carpets or in wall-mounted installations.
However, these cables are not suitable for outdoor use, heavy industrial applications, or farming environments due to their design limitations.
Case Study: Cape Town Residential Development
In a recent residential project in Cape Town, a developer used H05VV-F cables for wiring built-in kitchen appliances across a 50-unit apartment complex. The cables’ flexibility and compliance with CE low voltage directives ensured safe and reliable connections for refrigerators and washing machines. The project’s success highlighted the cables’ suitability for modern South African homes, where space constraints and safety are paramount.
Case Study: Johannesburg Office Renovation
A Johannesburg-based architecture firm incorporated H05VV-F cables into the fixed installations of a corporate office renovation. The cables were installed within partition walls and decorative panels to power lighting and small appliances. The project met all safety standards, and the cables’ durability ensured long-term performance in a high-traffic environment.
Advantages of H05VV-F/H05VVH2-F Cables
These cables offer several benefits, making them a top choice for South African applications:
Flexibility: The fine-wire copper conductor and PVC insulation allow the cables to bend easily, ideal for complex installations.
Safety: Compliance with international standards (e.g., IEC 60332.1 for flame retardancy) ensures safe operation in damp or wet environments.
Durability: The PVC outer jacket provides resistance to wear and tear, extending the cable’s lifespan.
Versatility: Available in various core counts and cross-sectional areas, these cables suit a wide range of applications, from small appliances to fixed installations.
Cost-Effectiveness: Their robust design reduces maintenance costs, making them economical for residential and commercial projects.
Frequently Asked Questions (FAQs)
1. Can H05VV-F cables be used outdoors in South Africa?
No, these cables are not suitable for outdoor use due to their design, which is optimised for indoor environments with medium mechanical stress.
2. What appliances can safely use these cables?
They are ideal for appliances like refrigerators, washing machines, and spin dryers, provided the cable does not come into contact with hot surfaces or other heat sources.
3. Are these cables compliant with South African regulations?
Yes, they comply with international standards like CEI, VDE, and BS, which align with South African electrical safety requirements.
4. What is the difference between H05VV-F and H05VVH2-F cables?
The H05VV-F is a round cable, while the H05VVH2-F is a flat cable, making it suitable for applications requiring a lower profile, such as under carpets or in tight spaces.
5. Where can I source these cables in South Africa?
These cables are available from major electrical suppliers in South Africa, such as Voltex, ARB Electrical Wholesalers, and online platforms. Always ensure the supplier provides cables meeting the required standards.
