H07RN-F

What is the H07RN-F Cable?

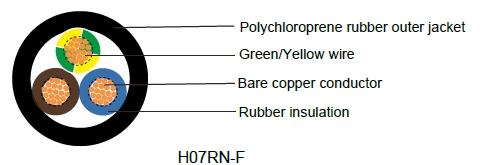

The H07RN-F is a type of heavy-duty flexible rubber cable that's engineered for demanding tasks where ordinary cables would pack up and go home. At its core, it's made from fine bare copper strands twisted together for maximum flexibility – think of it like a bunch of strong, skinny wires braided to bend without breaking. These strands follow strict standards like VDE-0295 Class-5 and IEC 60228 Class-5, ensuring they're top-notch quality.

The insulation around each core is a special rubber called EI4, which protects against electrical leaks and wear. For cables with three or more conductors, there's a green-yellow grounding wire for safety, following the VDE-0293-308 colour code. Wrapping it all up is a tough polychloroprene rubber jacket (often called neoprene), labelled EM2, which acts like armour against the elements.

This cable isn't just tough; it's compliant with international standards like CEI 20-19/4, IEC 60245-4, and EU directives for low voltage and ROHS (meaning it's free from nasty chemicals). In essence, the H07RN-F is designed to be your reliable mate in environments where weather, chemicals, and rough handling are part of the daily grind.

Application Scenarios

The H07RN-F shines in spots where other cables would falter. It's perfect for mobile power supplies on worksites, handling equipment like cranes, or even stage and audio-visual setups at festivals. In ports and dams, it powers pumps and lights amid salty air and water splashes. It's also great for drainage systems, water treatment plants, and cold storage – anywhere with oils, greases, mechanical knocks, or thermal swings.

For fixed installs, think temporary buildings, residential barracks, or plastered walls. In severe industrial spots, its resistance to acids, oils, and flames keeps things running safely. In South Africa, you'll spot these cables powering mining operations in Gauteng, where dust and vibrations are relentless, or in Cape Town's shipyards for temporary rigging during repairs.

Advantages of the H07RN-F Cable

What sets the H07RN-F apart? First off, its high flexibility means it doesn't kink or crack under constant movement – ideal for dragging across rough terrain. The neoprene jacket laughs off weather, oils, and chemicals, preventing penetration that could cause shorts or fires.

Safety is massive: flame retardancy reduces fire risks, and high voltage ratings mean fewer breakdowns. It's eco-friendly too, thanks to ROHS compliance. Cost-wise, its durability means less replacement, saving bucks in the long run. Compared to standard PVC cables, the H07RN-F handles extremes better, making it a no-brainer for tough jobs.

In South African contexts, its cold tolerance is a boon for highveld winters, and oil resistance suits our petrochemical hubs like Secunda.

Frequently Asked Questions (FAQs)

Q: Is the H07RN-F suitable for outdoor use in South Africa?

A: Absolutely! Its weather and UV resistance make it ideal for our sunny summers and chilly winters. Just ensure proper installation to avoid direct burial without protection.

Q: What's the difference between H07RN-F and standard extension cables?

A: Standard ones are lighter-duty; H07RN-F is heavy-duty with better flex, chemical resistance, and higher voltage handling – perfect for industrial or portable power needs.

Q: Can I use it for home DIY projects?

A: Yes, for things like powering tools in the garage or garden, but check the size and voltage ratings to match your needs. It's overkill for simple indoor wiring, though.

Q: How do I choose the right size?

A: Look at the number of cores, cross-sectional area (e.g., 1.5 mm² for lighter loads), and consult an electrician. Factors like length and current draw matter.

Q: Is it available locally?

A: Ja, most electrical suppliers in Joburg, Cape Town, or Durban stock it. Brands complying with SABS standards often carry equivalents.
