H07RN-F

Introduction

In the realm of electrical engineering and industrial applications, the H07RN-F harmonised code industrial cable stands out as a paragon of durability and versatility. This heavy-duty rubber-insulated cable, often referred to simply as H07RN-F cable, is engineered to endure extreme conditions that would compromise lesser wiring solutions. Its design incorporates polychloroprene rubber (neoprene) sheathing and ethylene propylene rubber (EPR) insulation, making it resistant to weather, oils, greases, mechanical stresses, and thermal variations. As industries across the globe, including those in South Africa, push for more reliable power distribution in harsh settings, the H07RN-F cable has become indispensable.

Originating from European harmonised standards, the H07RN-F designation breaks down as follows: 'H' indicates harmonised approval, '07' specifies a voltage rating of 450/750 V, 'R' denotes rubber insulation, 'N' signifies neoprene outer sheath, and 'F' refers to fine-stranded flexible conductors. This cable is particularly suited to South Africa's diverse industrial landscape, from mining operations in the Witwatersrand to construction projects in coastal ports like Durban. With the country's emphasis on resource extraction and infrastructure development, the H07RN-F's ability to withstand abrasion, chemicals, and temperature fluctuations aligns perfectly with local needs.

Overview and Applications

The H07RN-F cable is designed for high flexibility, enabling it to handle dynamic movements without compromising integrity. Its primary applications span environments where reliability is paramount. In handling equipment, such as cranes and forklifts, the cable powers motors under constant flexing. Mobile power supplies, including generator sets, benefit from its oil and grease resistance, preventing degradation in mechanical workshops or field operations.

In South Africa, where worksites often involve rugged terrains, the H07RN-F excels in construction and mining. It is ideal for temporary power setups on building sites, connecting tools like drills and saws. Stage and audio-visual equipment in events or film productions rely on its flame-retardant properties, while port areas and dams use it for submersible pumps and lighting in wet conditions. The cable's suitability for drainage and water treatment stems from its AD8 water resistance rating, allowing submersion in fresh water up to certain depths.

Furthermore, in cold environments—common in South African highlands during winter—the H07RN-F maintains performance down to -25°C when flexing. Severe industrial settings, such as chemical plants or agricultural facilities, appreciate its acid and oil penetration resistance. For fixed installations, like on plaster in temporary buildings or residential barracks, it supports higher voltages up to 600/1000 V when protected.

Compared to PVC cables, the H07RN-F's rubber composition offers superior mechanical protection. It does not become brittle in cold or helix-coil prone like some alternatives, making it a preferred choice for outdoor and mobile uses. In essence, this industrial rubber cable bridges the gap between flexibility and robustness, ensuring uninterrupted power in demanding scenarios.

In-Depth Analysis

Delving deeper, the H07RN-F's advantages lie in its material synergy. The EPR insulation (EI4) offers high thermal stability and electrical properties, resisting ozone and ageing. Neoprene's molecular structure provides elasticity, absorbing mechanical shocks—crucial in applications with medium stress levels.

Performance in harsh environments is exemplary. In oil rigs or chemical plants, it resists penetration, maintaining conductivity. UV and weather resistance prevent cracking, unlike PVC alternatives. Mechanically, the fine stranding distributes stress, reducing fatigue failures.

Comparatively, while H07RN8-F suits permanent submersion, H07RN-F excels in versatile mobile uses. In South Africa, where SANS standards align with IEC, it integrates seamlessly into local grids. Economic analysis shows lower lifecycle costs due to durability, reducing downtime.

Limitations include unsuitability for extreme chemicals or continuous deep submersion without variants. However, innovations like enhanced flexibility (e.g., Prysmian's 50% more flexible version) address this.

Overall, the H07RN-F represents a balanced engineering solution, optimising flexibility, safety, and endurance for industrial demands.

Frequently Asked Questions

What is H07RN-F cable?

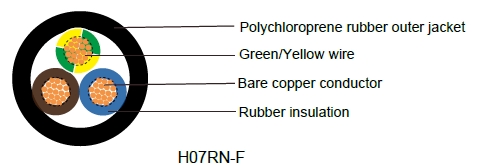

The H07RN-F is a harmonised rubber insulated cable with neoprene jacket, designed for flexible industrial use. It features fine copper conductors, EPR insulation, and polychloroprene sheath, rated at 450/750 V.

What are the main applications of H07RN-F cable?

It is used in handling equipment, mobile power supplies, worksites, stage equipment, ports, dams, drainage, and severe industrial environments, offering resistance to weather, oils, and stresses.

What standards does H07RN-F cable meet?

It complies with HD22.4 S3, VDE-0282 Part-4, CEI 20-19/4, IEC 60245-4, CE directives, and is ROHS compliant, ensuring flame retardancy and low voltage safety.

Can H07RN-F cable be used outdoors?

Yes, its neoprene jacket provides excellent weather, UV, and oil resistance, making it ideal for outdoor and mobile applications, including in cold or wet conditions.

What is the difference between H07RN-F and H05RN-F?

H07RN-F has a higher voltage rating (450/750 V) and thicker insulation for heavy-duty use, while H05RN-F (300/500 V) suits lighter applications with smaller diameters.

The H07RN-F harmonised code industrial cable exemplifies resilient engineering, blending flexibility with robustness for challenging environments. From South Africa's mines to global industries, its attributes ensure reliable power delivery. As technology advances, its role will only grow, supporting sustainable development.
