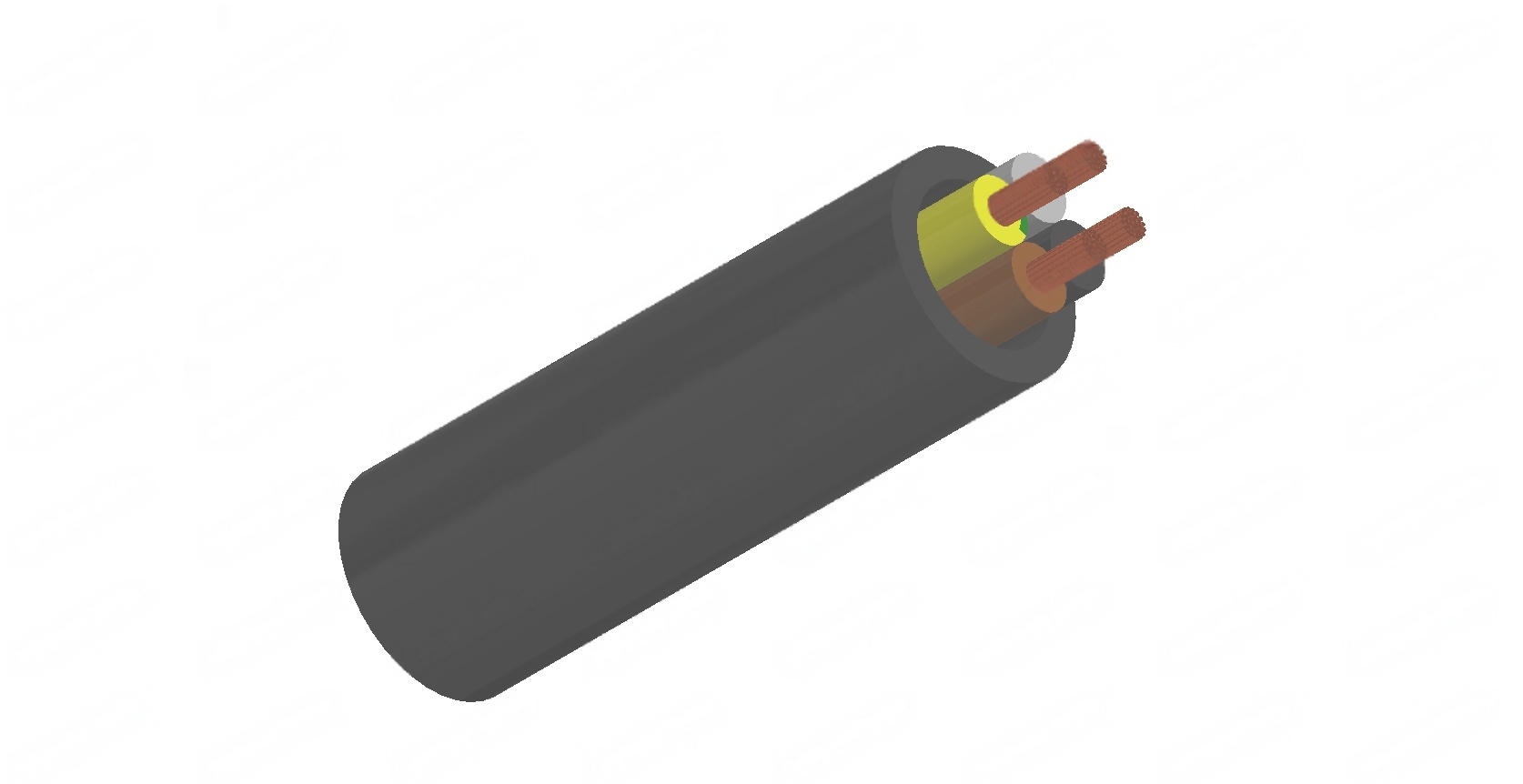

H07ZZ-F & UL/CSA 600V EPR/XLEVA Torsion Resistant Cable
Application
These halogen free cables with increased tolerance to torsion application, improved behaviour against abrasion and extended temperature, UV and ozone resistant are specially designed for wind turbines.
Standards
UL/CSA 22.2
UL 758
HD 22.13
Construction
Conductor | Stranded annealed bare copper, class 5 according to DIN VDE 0295/HD 383/IEC 60228. |
Insulation | Special thermoset EPR for high temperature. Special cross-linked improved for EI8 and EI7 base on EPDM can be offered upon request. |
Sheath | Special halogen free thermoset XLEVA. High mechanical performance special crosslinked EM8 synthetic halogen free rubber based on CPE can be offered upon request. |
Technical Data
RATED VOLTAGE U0/U (UM) | CENELEC 450/750V; UL/CSA 600V |
|---|---|
OPERATING TEMPERATURES | -40℃~+90℃ |
MAXIMUM PERMISSIBLE TENSILE LOAD | 15 N/mm^2 |
MINIMUM BENDING RADIUS | flexing: 6×OD; fixed: 4×OD |
TORSION APPLICATION | +/-150°/m |
SHORT-CIRCUIT TEMPERATURE | 250℃ |
FLAME RETARDANT | IEC 60332-1/IEC 60332-3 |
HALOGEN FREE | IEC 60754 |
SMOKE DENSITY | LSF EN 61034/IEC 61034 |
OIL RESISTANT | Yes |
OZONE RESISTANT | Yes |
UV RESISTANT | Yes |
WATER RESISTANT | Yes |
IMPACT RESISTANT | Yes |
Dimensions and Weight
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×25 | 13.5 | 371 |
1×35 | 15.0 | 482 |
1×50 | 18.7 | 730 |
1×70 | 19.3 | 888 |
1×95 | 23.0 | 1220 |
1×120 | 25.5 | 1540 |
1×150 | 28.8 | 1810 |
1×185 | 31.4 | 2210 |
1×240 | 33.8 | 2750 |
1×300 | 37.7 | 3520 |
1×400 | 41.4 | 4510 |
3×120 | 56.0 | 5200 |
3×150 | 61.5 | 6400 |
3×240 | 72.0 | 9780 |
3×25 | 30.0 | 1420 |
3×35 | 35.3 | 1850 |
3×50 | 39.8 | 2480 |
3×70 | 43.8 | 3180 |
3×95 | 49.0 | 4260 |
3×120 | 52.8 | 5490 |
4G25 | 32.8 | 1870 |
4G35 | 36.3 | 2320 |
4G50 | 42.5 | 3150 |
4G70 | 48.2 | 4240 |
4G95 | 53.5 | 5480 |
4G120 | 58.3 | 6950 |
G: with green-yellow earth core ×: without green-yellow earth core
