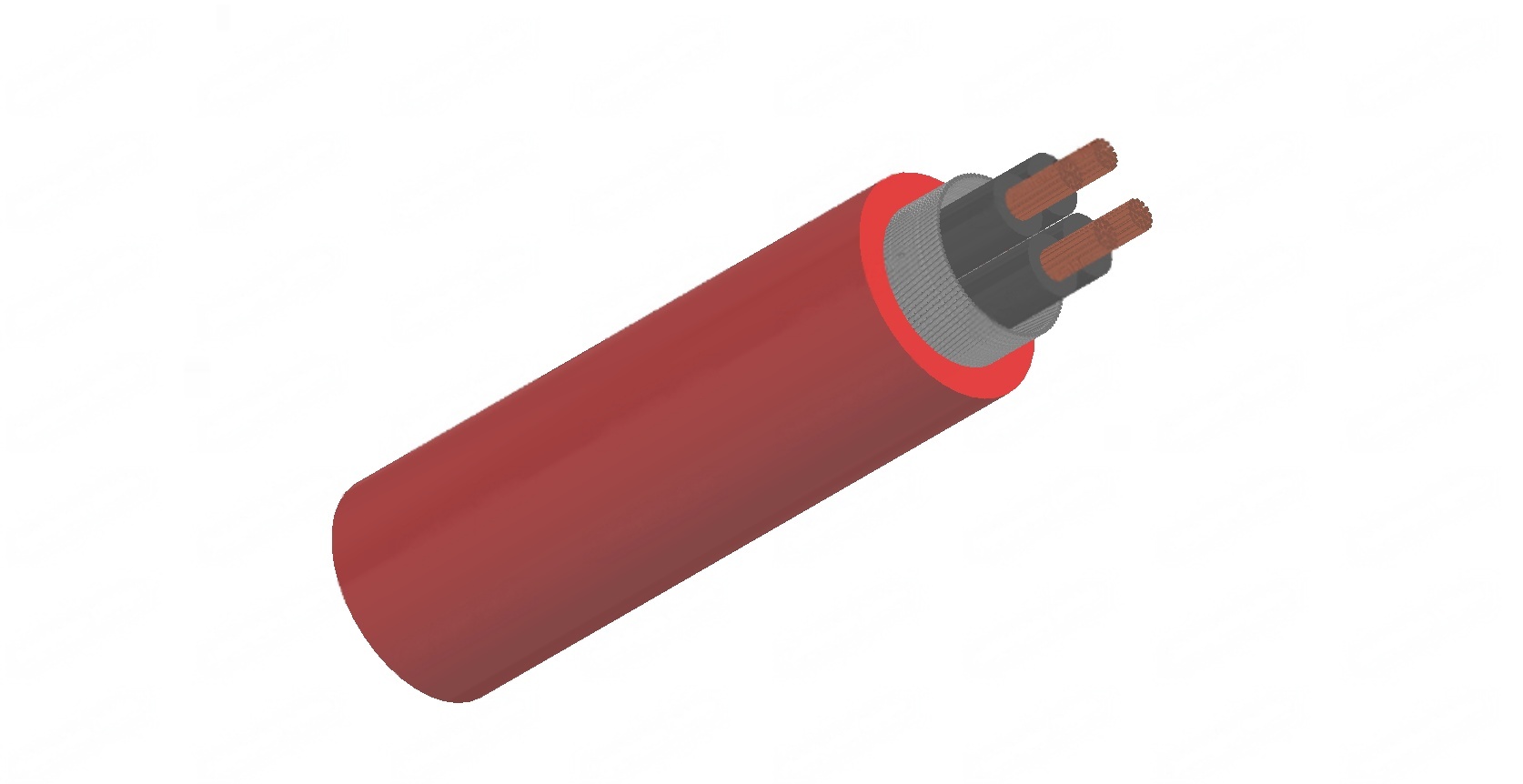

Halogen Free Torsion Resistant Fire Alarm Cable 24V
Application
These fire alarm cables are designed for the torsion applications in the loop section of wind turbines.
Standards
IEC 60502
DIN VDE 0250

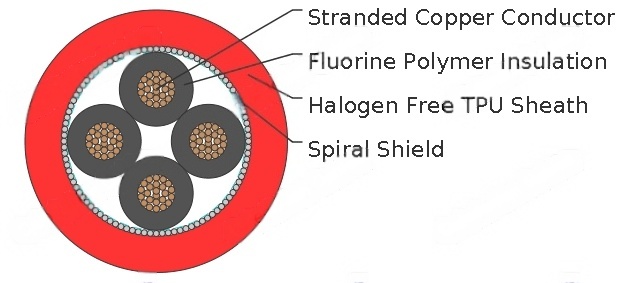

Construction
Conductor | Stranded copper wires, class 6 according to DIN VDE 0295/ IEC 60228 |
Insulation | Fluorine polymer |
Screen | Tinsel braid or spiral shield |
Sheath | Flame retardant halogen-free TPU |
Technical Data
Rated Voltage U0/U(Um) | 24V |
Operating Temperatures | -50℃~+90℃ |
Minimum Bending Radius | 7.5×OD |
Torsion Application | +/-1080°/5m |
Flame Retardant | IEC 60332-3 |
Halogen Free | IEC 60754 |
Oil Resistant | Yes |
Abrasion Resistant | Yes |
Dimensions and Weight
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
4×0.75 | 6.6 | 82 |
