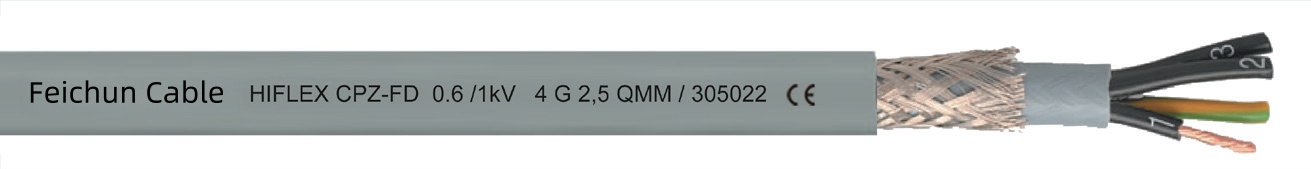

HIFLEX CPZ-FD 0.6/1KV
Rated voltage:Uo/U 600/1000V
Test voltage:4000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary :10 x cable diameterØ
flexible:10 x cable diameterØ
Temperature range:
flexible:-30°C - 80°C
stationary:-50°C - 90°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
Material list

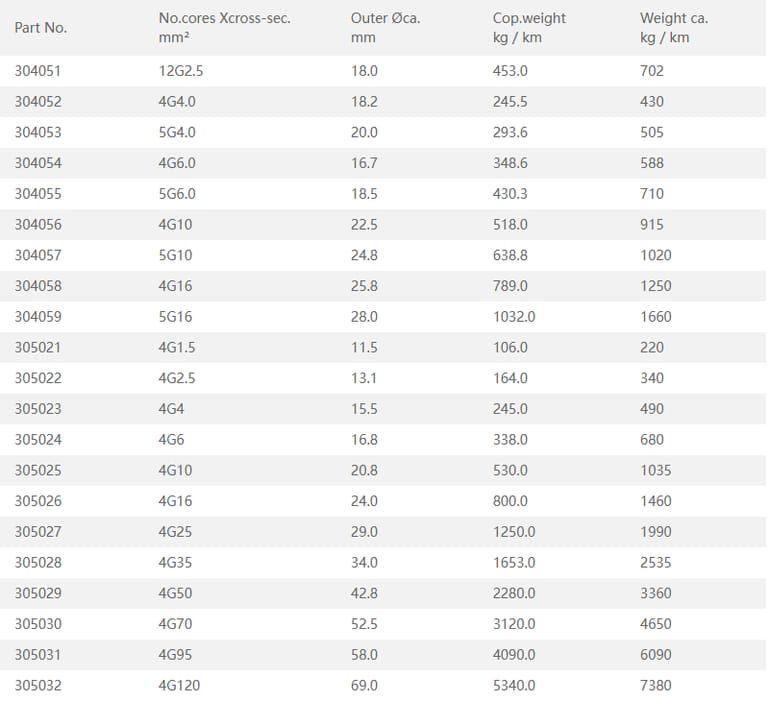

Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
304001 | 2x0.5 OZ | 7.6 | 48.0 | 91 |
304002 | 3G0.5 | 8.6 | 53.0 | 104 |
304003 | 4G0.5 | 8.9 | 61.0 | 120 |
304004 | 5G0.5 | 9.5 | 66.0 | 131 |
304005 | 7G0.5 | 10.7 | 85.0 | 172 |
304006 | 12G0.5 | 13.0 | 117.0 | 250 |
304007 | 18G0.5 | 14.7 | 157.0 | 321 |
304008 | 20G0.5 | 15.5 | 168.0 | 350 |
304009 | 25G0.5 | 17.7 | 228.0 | 445 |
304010 | 27G0.5 | 18.0 | 237.0 | 453 |
304011 | 30G0.5 | 18.6 | 274.0 | 509 |
304012 | 36G0.5 | 20.0 | 306.0 | 580 |
304013 | 2x0.75 OZ | 7.8 | 53.0 | 105 |
304014 | 3G0.75 | 8.8 | 63.0 | 119 |
304015 | 4G0.75 | 9.8 | 77.0 | 143 |
304016 | 5G0.75 | 10.4 | 87.0 | 157 |
304017 | 7G0.75 | 11.7 | 107.0 | 205 |
304018 | 12G0.75 | 13.6 | 156.0 | 304 |
304019 | 18G0.75 | 15.5 | 235.0 | 418 |
304020 | 20G0.75 | 16.5 | 250.0 | 449 |
304021 | 25G0.75 | 18.9 | 313.0 | 579 |
304022 | 30G0.75 | 19.5 | 351.0 | 629 |
304023 | 36G0.75 | 21.0 | 400.0 | 740 |
304024 | 2x1.0 OZ | 8.3 | 60.0 | 116 |
304025 | 3G1.0 | 9.2 | 71.0 | 133 |
304026 | 4G1.0 | 9.7 | 88.0 | 160 |
304027 | 5G1.0 | 10.4 | 99.0 | 187 |
304028 | 7G1.0 | 12.6 | 125.0 | 235 |
304029 | 12G1.0 | 14.8 | 186.0 | 357 |
304030 | 18G1.0 | 16.8 | 280.0 | 496 |
304031 | 20G1.0 | 18.5 | 322.0 | 563 |
304032 | 25G1.0 | 20.9 | 378.0 | 677 |
304033 | 27G1.0 | 21.2 | 397.0 | 694 |
304034 | 30G1.0 | 21.5 | 429.0 | 770 |
304035 | 36G1.0 | 23.5 | 516.0 | 893 |
304036 | 2x1.5 Oz | 10.0 | 79.0 | 141 |
304037 | 3G1.5 | 10.8 | 94.0 | 164 |
304038 | 4G1.5 | 11.7 | 118.0 | 205 |
304039 | 5G1.5 | 11.9 | 129.0 | 233 |
304040 | 7G1.5 | 13.8 | 170.0 | 323 |
304041 | 12G1.5 | 17.1 | 279.0 | 481 |
304042 | 18G1.5 | 20.3 | 394.0 | 672 |
304043 | 25G1.5 | 24.0 | 533.0 | 927 |
304044 | 27G1.5 | 24.3 | 562.0 | 952 |
304045 | 30G1.5 | 25.0 | 608.1 | 1022 |
304046 | 36G1.5 | 27.3 | 703.0 | 1206 |
304047 | 3G2.5 | 11.7 | 137.4 | 251 |
304048 | 4G2.5 | 12.6 | 164.2 | 330 |
304049 | 5G2.5 | 13.5 | 190.2 | 398 |
304050 | 7G2.5 | 16.0 | 262.0 | 503 |
