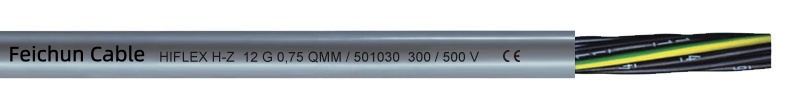

HIFLEX H-Z
Rated voltage:Uo/U 300/500V
Test voltage:4000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary :15 x cable diameterØ
flexible:-15°C - 70°C
stationary:-40°C - 70°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
Features:
● Flame retardant
● Low smoke
● Low corrosion
Material list
Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
501001 | 2x0,5 OZ | 4,8 | 9,6 | 40 |
501002 | 3G0,5 | 5,1 | 14,4 | 47 |
501003 | 3x0,5 OZ | 5,1 | 14,4 | 47 |
501004 | 4G0,5 | 5,7 | 19,2 | 57 |
501005 | 4x0,5 OZ | 5,7 | 19,2 | 57 |
501006 | 5G0,5 | 6,2 | 24,0 | 66 |
501007 | 7G0,5 | 6,8 | 33,6 | 85 |
501008 | 8G0,5 | 7,5 | 38,0 | 110 |
501009 | 10G0,5 | 8,6 | 48,0 | 142 |
501010 | 12G0,5 | 8,9 | 58,0 | 133 |
501011 | 16G0,5 | 10,2 | 76,0 | 198 |
501012 | 18G0,5 | 10,5 | 86,0 | 216 |
501013 | 20G0,5 | 11,0 | 96,0 | 231 |
501014 | 25G0,5 | 12,6 | 120,0 | 257 |
501015 | 34G0,5 | 14,5 | 163,0 | 398 |
501016 | 42G0,5 | 16,0 | 202,0 | 471 |
501017 | 50G0,5 | 18,0 | 240,0 | 510 |
501018 | 61G0,5 | 19,5 | 293,0 | 670 |
501019 | 2x0,75 OZ | 5,4 | 14,4 | 43 |
501020 | 3G0,75 | 5,7 | 22,0 | 61 |
501021 | 3x0,75 OZ | 5,7 | 22,0 | 61 |
501022 | 4G0,75 | 6,5 | 28,8 | 75 |
501023 | 4x0,75 OZ | 6,5 | 28,8 | 75 |
501024 | 5G0.75 | 6.8 | 36.0 | 100 |
501025 | 5x0,75 OZ | 6,8 | 36,0 | 100 |
501026 | 7G0,75 | 7,5 | 50,4 | 125 |
501027 | 7x0,75 OZ | 7,5 | 50,4 | 125 |
501028 | 8G0,75 | 8,0 | 58,0 | 140 |
501029 | 10G0,75 | 9,0 | 72,0 | 172 |
501030 | 12G0,75 | 9,9 | 86,4 | 210 |
501031 | 16G0,75 | 11,0 | 115,0 | 253 |
501032 | 18G0,75 | 11,7 | 130,0 | 270 |
501033 | 20G0,75 | 12,5 | 144,0 | 310 |
501034 | 25G0,75 | 14,2 | 180,0 | 370 |
501035 | 34G0,75 | 15,9 | 245,0 | 512 |
501036 | 42G0,75 | 17,8 | 302,0 | 590 |
501037 | 50G0,75 | 19,1 | 360,0 | 640 |
501038 | 61G0,75 | 20,5 | 439,0 | 775 |
501039 | 2x1,0 OZ | 5,7 | 19,2 | 57 |
501040 | 3G1,0 | 6,0 | 28,8 | 80 |
501041 | 3x1,0 OZ | 6,0 | 28,8 | 80 |
501042 | 4G1,0 | 6,7 | 38,4 | 106 |
501043 | 4x1,0 OZ | 6,7 | 38,4 | 106 |
501044 | 5G1,0 | 7,3 | 48,0 | 123 |
501045 | 7G1,0 | 8,2 | 67,2 | 149 |
501046 | 8G1,0 | 8,8 | 77,0 | 175 |
501047 | 10G1,0 | 10,2 | 96,0 | 220 |
501048 | 12G1,0 | 10,5 | 115,2 | 260 |
501049 | 16G1,0 | 12,0 | 154,0 | 320 |
501050 | 18G1,0 | 12,7 | 172,8 | 350 |
