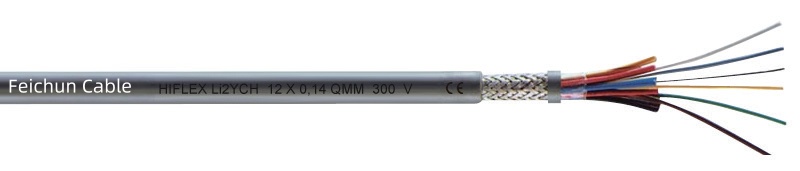

HIFLEX Li2YCH

Rated voltage:Uo/U 300/0V

Test voltage:1200V

Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km

Bending radius:

stationary :15 x cable diameterØ

flexible:-5°C - 70°C

stationary:-40°C - 70°C

Radiation resistance:≤80×10cJ/kg

Flame retardant:IEC 60332-3

Other outer sheath colors are available, depending on electrical safety regulations, such as RAL 5015.

Features:

● Flame retardant

● Low smoke emission

● No corrosive gases

● Comparatively good capacitance

Part No.	No.cores Xcross-sec. mm²	Outer Øca. mm	Cop.weight kg / km	Weight ca. kg / km
521001	2x0.14	3.9	12.4	18
521002	3x0.14	4.1	14.0	22
521003	4x0.14	4.2	15.8	26
521004	5x0.14	4.6	19.5	31
521005	7x0.14	5.1	23.0	36
521006	10x0.14	6.6	29.0	49
521007	12x0.14	6.9	31.0	56
521008	14x0.14	7.2	37.0	61
521009	16x0.14	7.5	43.0	70
521010	18x0.14	8.0	52.0	84
521011	21x0.14	8.3	62.0	94
521012	25x0.14	9.5	76.0	105
521013	30x0.14	10.0	93.0	125
521014	34x0.14	10.5	121.0	150
521015	40x0.14	11.0	126.0	155
521016	2x0.25	4.5	15.0	20
521017	3x0.25	4.6	18.0	25
521018	4x0.25	4.7	22.0	34
521019	5x0.25	5.3	25.0	41
521020	7x0.25	5.7	32.0	49
521021	10x0.25	7.3	42.0	72
521022	12x0.25	7.5	50.0	82
521023	14x0.25	7.9	58.0	100
521024	16x0.25	8.6	62.0	113
521025	18x0 25	9.0	80.0	120
521026	21x0.25	9.5	95.0	135
521027	25x0.25	10.3	118.0	146
521028	30x0 25	11.0	130.0	168
521029	34x0.25	11.7	145.0	214
521030	40x0 25	12.5	163.0	230
521031	2x0.34	5.0	17.0	28
521032	3x0 34	5.2	21.0	34
521033	4x0.34	5.6	24.0	41
521034	5x0.34	6.2	30.0	49
521035	7x0.34	6.9	42.0	63
521036	10x0 34	9.0	62.0	103
521037	12x0.34	9.2	69.0	114
521038	14x0 34	9.5	82.0	135
521039	16x0.34	10.0	90.0	140
521040	18x0.34	10.5	107.5	162
521041	21x0.34	11.3	130.0	182
521042	25x0.34	12.5	144.0	210
521043	30x0 34	13.1	163.0	250
521044	34x0.34	13.9	179.0	270
521045	40x0.34	14.8	203.0	317
521046	2x0.50	5.2	29.0	32
521047	3x0 50	5.5	35.0	41
521048	4x0.50	6.2	39.0	49
521049	5x0.50	7.0	57.0	60
521050	7x0.50	7.4	72.0	76
