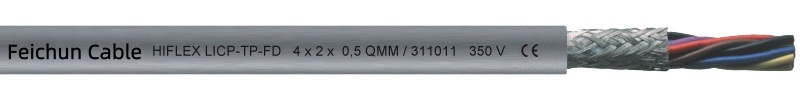

HIFLEX LiCP-TP-FD
Rated voltage:Uo/U 350/0V
Test voltage:1500V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary :4 x cable diameterØ
flexible:7.5 x cable diameterØ
Temperature range:
flexible:-40°C - 80°C
stationary:-50°C - 80°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
Material list
Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
311029 | 2x2x0,14 | 6,0 | 19,4 | 42 |
311030 | 3x2x0,14 | 6,5 | 23,4 | 53 |
311031 | 4x2x0,14 | 7,0 | 27,1 | 59 |
311032 | 5x2x0,14 | 7,6 | 37,4 | 75 |
311033 | 6x2x0,14 | 7,8 | 49,4 | 91 |
311034 | 8x2x0,14 | 9,1 | 54,8 | 109 |
311035 | 10x2x0,14 | 10,5 | 60,1 | 120 |
311043 | 1x 2x 0,25 | 4,7 | 14,0 | 28 |
311001 | 2x2x0,25 | 7,0 | 34,0 | 60 |
311002 | 3x2x0,25 | 7,9 | 46,0 | 70 |
311003 | 4x2x0,25 | 8,4 | 50,0 | 85 |
311004 | 5x2x0,25 | 9,5 | 57,0 | 100 |
311005 | 6x2x0,25 | 10,2 | 71,0 | 110 |
311006 | 8x2x0,25 | 12,0 | 79,0 | 150 |
311007 | 10x2x0,25 | 13,5 | 95,0 | 175 |
311008 | 14x2x0,25 | 14,0 | 118,0 | 210 |
311036 | 1x2x0,34 | 5,6 | 20,0 | 36 |
311037 | 2x2x0,34 | 8,2 | 41,0 | 81 |
311038 | 3x2x0,34 | 8,7 | 52,0 | 101 |
311039 | 4x2x0,34 | 9,5 | 59,0 | 119 |
311040 | 6x2x0,34 | 11,0 | 86,0 | 165 |
311041 | 8x2x0,34 | 12,8 | 107,3 | 221 |
311042 | 10x2x0,34 | 14,9 | 131,1 | 274 |
311044 | 1x 2x0,50 | 5,5 | 22,0 | 47 |
311009 | 2x2x0,50 | 7,8 | 52,0 | 88 |
311010 | 3x2x0,50 | 9,8 | 70,0 | 110 |
311011 | 4x2x0,50 | 11,1 | 75,0 | 135 |
311012 | 5x2x0,50 | 11,5 | 90,0 | 160 |
311013 | 6x2x0,50 | 12,5 | 104,0 | 180 |
311014 | 8x2x0,50 | 16,0 | 142,0 | 250 |
311015 | 10x2x0,50 | 17,3 | 176,0 | 320 |
311016 | 14x2x0,50 | 17,7 | 223,0 | 390 |
311045 | 1x 2x0,75 | 6,3 | 34,0 | 61 |
311017 | 2x2x0,75 | 9,5 | 62,0 | 110 |
311018 | 3x2x0,75 | 10,8 | 85,0 | 140 |
311019 | 4x2x0,75 | 11,6 | 101,0 | 165 |
311020 | 6x2x0,75 | 14,0 | 135,0 | 225 |
311021 | 8x2x0,75 | 13,1 | 192,2 | 343 |
311022 | 10x2x0,75 | 15,0 | 258,0 | 467 |
311023 | 14x2x0,75 | 16,4 | 316,6 | 546 |
311024 | 1x2x1,0 | 6,9 | 42,0 | 71 |
311025 | 2x2x1,0 | 10,0 | 73,0 | 130 |
311026 | 3x2x1,0 | 10,2 | 93,6 | 170 |
311027 | 4x2x1,0 | 11,3 | 117,8 | 204 |
311028 | 5x2x1,0 | 13,1 | 139,0 | 238 |
Design
● Stranded bare Cu conductor, extra-fine wire
● Strand structure to VDE 0295,class 6 / IEC 60228
class 6
● PVC-insulated cores
● Core identification to DIN 47100
● 2 cores twisted in pairs
● Pairs twisted in layers, with optimal lay lengths
● Fabric lapping
● Braided screening made of tinned copper wires
● Fabric lapping
● Outer sheath: special PUR, cold-flexible, halogenfree,
oil-resistant
● Sheath colour: RAL 7001 grey
Applications
This cable is used for drag chain applications or as electronics cable on mobile machine components in dry, damp and wet environments. Designed to resist high bending loads and up to mean mechanical
strain.Cores are twisted in pairs to minimize electric coupling between individual signals.
