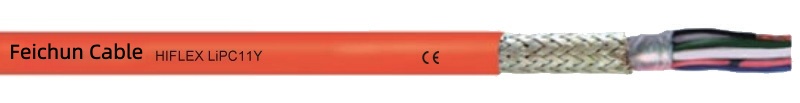

HIFLEX LiPC11Y

Rated voltage:Uo/U 250/0V

Test voltage:1500V

Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km

Bending radius:

      stationary :10 x cable diameterØ

       flexible:10 x cable diameterØ

Temperature range:

       flexible:-0°C - 80°C

      stationary:-40°C - 80°C

Radiation resistance:≤80×10cJ/kg

Flame retardant:IEC 60332-1

Design

● Tinned stranded Cu conductor, extra fine wire

● Strand structure

0.25 mm2=19 x 0.127 mm

1.00 mm2=126 x 0.10 mm

● Core insulation: polyolefin

● Core identification:

cross-section 0.25 mm2

brown + green, grey + pink,

blue + violet, red + black

cross-section 1.0 mm2

white, brown

● Fabric lapping

● Braided screening made of tinned copper wires

● Fabric lapping

● Outer sheath: special PUR

● Sheath colour: RAL 2003 orange

Applications

This cable is used for permanently flexible applications and transmits control pulses for positioning and movement. Suitable for use as signal and data cable, primarily on drag chains.

The screening ensures excellent EMC performance.The low-adhesion PUR outer sheath is characterized by its high impact strength, excellent oil resistance and superior chemical resistance and thus ensures a long cable service life.
