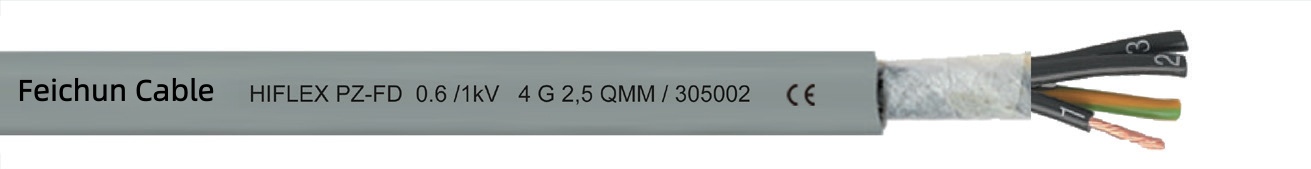

HIFLEX PZ-FD 0.6/1kV
Rated voltage:Uo/U 600/1000V
Test voltage:4000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary :10 x cable diameterØ
flexible:7.5 x cable diameterØ
Temperature range:
flexible:-30°C - 80°C
stationary:-50°C - 90°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
Material list

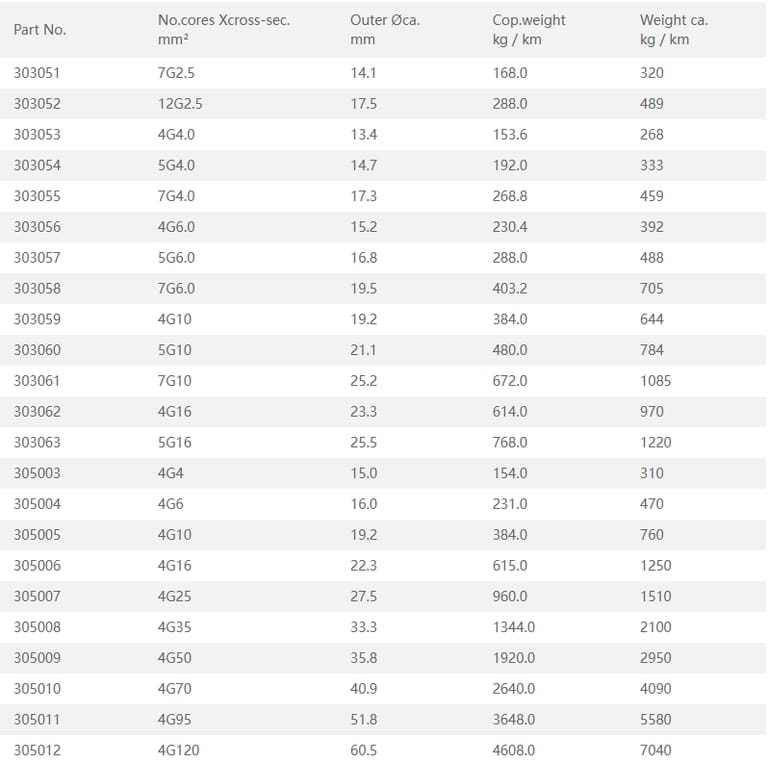

Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
303001 | 2x0.5 Oz | 6.2 | 9.6 | 37 |
303002 | 3G0.5 | 6.5 | 14.4 | 45 |
303003 | 4G0.5 | 7.1 | 19.2 | 56 |
303004 | 5G0.5 | 7.4 | 24.0 | 66 |
303005 | 7G0.5 | 8.5 | 33.6 | 88 |
303006 | 12G0.5 | 10.6 | 57.6 | 134 |
303007 | 18G0.5 | 12.5 | 86.4 | 197 |
303008 | 20G0.5 | 13.0 | 96.0 | 256 |
303009 | 25G0.5 | 15.3 | 120.0 | 279 |
303010 | 27G0.5 | 15.5 | 129.6 | 287 |
303011 | 30G0.5 | 15.7 | 144.0 | 312 |
303012 | 36G0.5 | 17.0 | 172.8 | 372 |
303013 | 2x0.75 OZ | 6.7 | 14.4 | 45 |
303014 | 3G0.75 | 7.0 | 21.6 | 56 |
303015 | 4G0.75 | 7.8 | 28.8 | 68 |
303016 | 5G0.75 | 8.1 | 36.0 | 84 |
303017 | 7G0.75 | 9.5 | 50.4 | 117 |
303018 | 12G0.75 | 12.0 | 86.4 | 183 |
303019 | 18G0.75 | 14.1 | 129.6 | 268 |
303020 | 20G0.75 | 14.7 | 144.0 | 295 |
303021 | 25G0.75 | 17.0 | 180.0 | 371 |
303022 | 30G0.75 | 17.5 | 216.0 | 417 |
303023 | 36G0.75 | 18.9 | 259.2 | 498 |
303024 | 2x1.0 OZ | 7.1 | 19.2 | 53 |
303025 | 3G1.0 | 7.4 | 28.8 | 68 |
303026 | 4G1.0 | 8.2 | 38.4 | 86 |
303027 | 5G1.0 | 8.6 | 48.0 | 102 |
303028 | 7G1.0 | 10.2 | 67.2 | 143 |
303029 | 12G1.0 | 12.8 | 115.2 | 225 |
303030 | 18G1.0 | 15.1 | 172.8 | 331 |
303031 | 20G1.0 | 15.8 | 192.0 | 365 |
303032 | 25G1.0 | 18.2 | 240.0 | 458 |
303033 | 27G1.0 | 18.4 | 259.2 | 475 |
303034 | 30G1.0 | 19.0 | 288.0 | 526 |
303035 | 36G1.0 | 20.3 | 345.6 | 621 |
303036 | 2x1.5 Oz | 7.9 | 28.8 | 69 |
303037 | 3G1.5 | 8.3 | 43.2 | 90 |
303038 | 4G1.5 | 9.4 | 59.6 | 125 |
303039 | 5G1.5 | 9.9 | 72.0 | 142 |
303040 | 7G1.5 | 11.9 | 100.8 | 203 |
303041 | 12G1.5 | 14.9 | 172.8 | 319 |
303042 | 18G1.5 | 17.3 | 259.2 | 462 |
303043 | 20G1.5 | 18.1 | 288.0 | 510 |
303044 | 25G1.5 | 21.1 | 360.0 | 647 |
303045 | 27G1.5 | 21.3 | 388.8 | 673 |
303046 | 30G1.5 | 21.7 | 432.0 | 736 |
303047 | 36G1.5 | 23.5 | 518.4 | 880 |
303048 | 3G2.5 | 9.9 | 72.0 | 150 |
303049 | 4G2.5 | 10.8 | 96.0 | 183 |
303050 | 5G2.5 | 11.8 | 120.0 | 228 |
