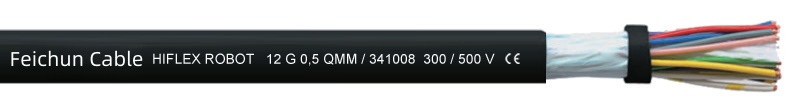

HIFLEX ROBOT

Rated voltage:Uo/U 300/500V

Test voltage:3000V

Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km

Bending radius:

stationary :7.5 x cable diameterØ

flexible:7.5 x cable diameterØ

Temperature range:

flexible:-30°C - 80°C

stationary:-40°C - 80°C

Radiation resistance:≤80×10cJ/kg

Flame retardant:IEC 60332-1

Coupling Capacitor:

Core/Core: Approximately 100nF/km

Core/Shield: Approximately 120nF/km

Inductive Reactance: Approximately 0.69mH/km

Part No.	No.cores Xcross-sec. mm²	Outer Øca. mm	Cop.weight kg / km	Weight ca. kg / km
341001	7G0,25	5,8	16,8	48,0
341002	12G0,25	7,6	28,8	71,0
341003	25G0,25	10,6	60,0	143.0
341004	2G0,34	4,0	6,6	28,0
341005	3G0,34	4,0	9,8	34,0
341006	7G0,34	5,7	22,8	51,0
341007	12G0,34	8,3	39,2	69,0
341008	12G0,5	10,4	57,8	90,0
341009	16G0,5	11,6	76,8	277,0
341010	18G0,5	12,7	86,4	121,0
341011	25G0,5	14,2	120,0	256,0
341012	4G0,75	6,0	28,8	63,0
341013	7G0,75	7,9	50,4	96,0
341014	12G0,75	11,5	84,4	171,0
341015	14G0,75	12,8	100,8	200,0
341016	2G1	6,0	19,2	48,0
341017	3G1	6,0	29,0	60,0
341018	4G1	6,3	38,4	78,0
341019	7G1	8,5	67,2	131,0
341020	12G1	12,5	115,2	216,0
341021	18G1	15,4	172,8	306,0
341022	25G1	17,4	240,0	432,0
341023	34G1	21,3	326,4	569,0
341024	41G1	23,2	393,6	694,0
341025	3G1,5	6,9	43,2	94,0
341026	4G1.5	7.9	57.6	107.0
341027	8G1,5	11,1	115,2	292,0
341028	12G1,5	15,5	172,8	356,0
341029	18G1,5	19,3	259,2	445.0
341030	25G1,5	21,8	360,0	636,0
341031	3G2,5	8,4	72,0	136,0
341032	4G2,5	9,1	96,0	170,0
341033	3G4	10,3	116,0	227,0
341034	4G4	11,2	153,6	261,0
341035	4G6	14,1	230,4	341,0
341036	3G10	15,6	288,0	518,0
341037	3G16	18,2	460,8	722,0
341038	3G25	22,9	720,0	1180,0
341039	3G35	26,5	1008,0	1600.0
