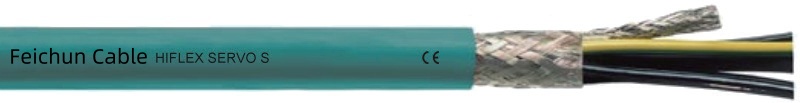

HIFLEX SERVO S

Rated voltage:Uo/U 600/1000V

Test voltage:4000V

Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km

Bending radius:

      stationary :10 x cable diameterØ

       flexible:10 x cable diameterØ

Temperature range:

       flexible:-10°C - 80°C

      stationary:-30°C - 80°C

Radiation resistance:≤80×10cJ/kg

Flame retardant:IEC 60332-1

• Material list

Design

● Stranded bare Cu conductor, extra-finewire

● Strand structure to VDE 0295 class 6 / IEC60228 \

class 6

● Core insulation: TPE

● Core identification:

power cores: black

with printed coding U-VV-WWW

green-yellow protective conductor

signal cores: black, white

signal cores twisted in pairs

● Screening:lapped with plastic film

tinned twisted copper screen

● Screened signal pairs and power cores twisted in

layers, with optimal lay lengths

● Fabric lapping

● Tinned copper braided screening

● Fabric lapping

● Outer sheath: PUR

● Sheath colour: RAL 5018 turquoise blue

Applications

This halogen-free cable is used as connecting cable for power supply and, at the same time, as signal and data cable for motor control. Primarily used on drag chains.

The screening of individual signal pairs and overall screening provide excellent electromagnetic compatibility. The adhesion- free PUR outer sheath is characterized by its high impact strength, excellent oil resistance and superior chemical resistance and thus ensures a long cable service life with approx. 2 million bending cycles.
