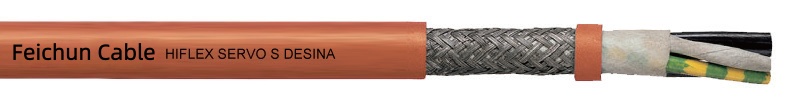

HIFLEX SERVO S DESINA

Electrical and Technical Specifications

Rated voltage:Uo/U 600/1000V

Test voltage:4000V

Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km

Bending radius:

      stationary :10 x cable diameterØ

       flexible:10 x cable diameterØ

Temperature range:

       flexible:-10°C - 80°C

      stationary:-30°C - 80°C

Radiation resistance:≤80×10cJ/kg

Flame retardant:IEC 60332-1

Design

● Stranded bare Cu conductor, extra-fine wire

● Strand structure to VDE 0295 class 6 /

IEC 60228 class 6

● Core insulation: TPE

● Core identification:

– power cores:

black with printed coding U-V-W,

– green-yellow protective conductor

– signal cores: black, white,

cores twisted in pairs, screened

with tinned copper braid

● Power cores and signal pairs

twisted in layers,

with optimal lay lengths

Design

● Fabric lapping

● Tinned copper braided screening

● Fabric lapping

● Outer sheath: PUR

● Sheath colour: RAL 2003 orange

Applications

This halogen-free cable is used as connecting cable for power supply and, at the same time, as power and signal cable for motor control. Primarily used on drag chains. The screening of individual pairs and overall screening provide excellent electromagnetic compatibility. The lowadhesion PUR outer sheath is characterized by its high impact strength, excellent oil resistance and superior chemical and weathering resistance and thus ensures a long cable service life.
