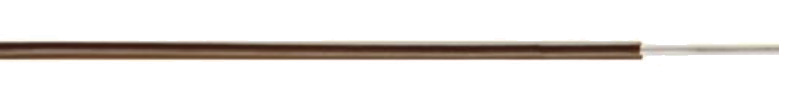

HIFLEX SiA
Rated voltage:Uo/U 300/500V
Test voltage:2000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary:-50°C - 180°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
Material list
Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
6205xx | 0,5 | 2,0 | 4,8 | 8 |
6207xx | 0,75 | 2,2 | 7,2 | 11 |
6210xx | 1,0 | 2,3 | 9,6 | 13 |
6215xx | 1,5 | 2,6 | 14,4 | 18 |
6225xx | 2,5 | 3,2 | 24,0 | 29 |
6240xx | 4,0 | 3,9 | 38,4 | 45 |
6260xx | 6,0 | 4,4 | 57,6 | 64 |
6200xx | 10,0 | 5,6 | 96,0 | 120 |
