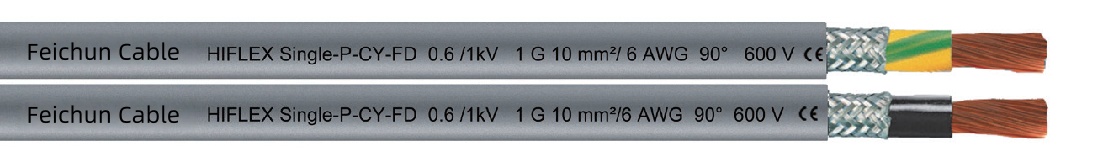

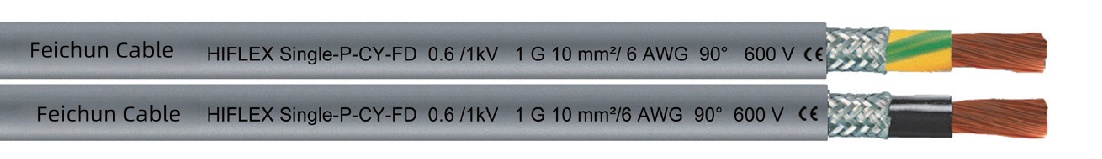

HIFLEX Single-P-CY-FD
Rated voltage:Uo/U 600/1000V
Test voltage:4000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary :3 x cable diameterØ
flexible:7.5 x cable diameterØ
Temperature range:
flexible:-5°C - 90°C
stationary:-40°C - 90°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
Cables comply with DIN VDE 0281-3
Material list
Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
306091 | 1G10 | 10,0 | 130,0 | 230 |
306092 | 1x10 | 10,0 | 130,0 | 230 |
306093 | 1G16 | 11,1 | 190,0 | 300 |
306094 | 1x16 | 11,1 | 190,0 | 300 |
306095 | 1G25 | 12,3 | 260,0 | 420 |
306096 | 1x25 | 12,3 | 260,0 | 420 |
306097 | 1G35 | 15,1 | 405,0 | 615 |
306098 | 1x35 | 15,1 | 405,0 | 615 |
306099 | 1G50 | 17,2 | 560,0 | 825 |
306100 | 1x50 | 17,2 | 560,0 | 825 |
306101 | 1G70 | 19,0 | 780,0 | 1090 |
306102 | 1x70 | 19,0 | 780,0 | 1090 |
306103 | 1G95 | 22,0 | 1030,0 | 1395 |
306104 | 1x95 | 22,0 | 1030,0 | 1395 |
306105 | 1G120 | 23,6 | 1285,0 | 1770 |
306106 | 1x120 | 23,6 | 1285,0 | 1770 |
306107 | 1G150 | 25,8 | 1570,0 | 1930 |
306108 | 1x150 | 25,8 | 1570,0 | 1930 |
306109 | 1G185 | 29,8 | 1940,0 | 2635 |
306110 | 1x185 | 29,8 | 1940,0 | 2635 |
306111 | 1G240 | 33,5 | 2530,0 | 3380 |
306112 | 1x240 | 33,5 | 2530,0 | 3380 |
306113 | 1G300 | 36,2 | 3140,0 | 4120 |
306114 | 1x300 | 36,2 | 3140,0 | 4120 |
