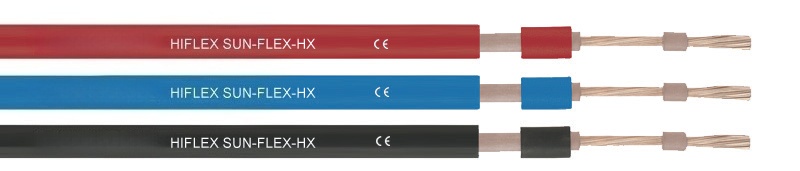

HIFLEX SUN-FLEX-HX
Rated voltage:Uo/U 600/1000V
Test voltage:6500V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary :5 x cable diameterØ
flexible:-30°C - 100°C
stationary:-50°C - 150°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
Features:
- Flame retardant according to VDE 0482 332-1-2, DIN
EN 600332-1-2, IEC 60322-1-2
- Electronically cross-linked material
- Excellent tensile and abrasion resistance
- Environmental resistance
- Hydrolysis, ozone, UV, and oil resistance
- Requirements for cables
PV-Systems DKE/ VDE AK 411.2.3
- Humidity and heat testing in acc.
EN 0068-2-78
- Cold resistance according to EN 60811-1-4 / EN 0305
Material list
Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
618001 | 1x2.5 | 4.5 | 24.0 | 55 |
618002 | 1x4.0 | 5.2 | 38.4 | 85 |
618003 | 1x6.0 | 5.9 | 57.6 | 95 |
618004 | 1x10.0 | 6.9 | 96.0 | 110 |
618005 | 1x16.0 | 8.3 | 153.6 | 170 |
618006 | 1x25.0 | 10.0 | 240.0 | 295 |
618007 | 1x35.0 | 11.0 | 336.0 | 395 |
618008 | 1x50.0 | 13.0 | 480.0 | 630 |
618009 | 1x70.0 | 15.3 | 672.0 | 850 |
618010 | 1x95.0 | 17.0 | 912.0 | 1200 |
