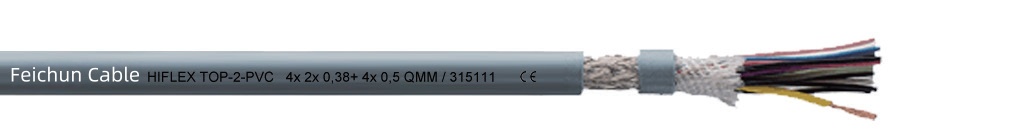

HIFLEX TOP-2-PVC

Rated voltage:Uo/U 500/0V

Test voltage:2000V

Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km

Bending radius:

      stationary :10 x cable diameterØ

       flexible:10 x cable diameterØ

Temperature range:

       flexible:-10°C - 70°C

      stationary:-30°C - 80°C

Radiation resistance:≤80×10cJ/kg

Flame retardant:IEC 60332-1

Core wire color identification (check according to the last 2 digits of the number)

11 / 0,38 mm²: orange/red violet/bluebrown/black yellow/green

0,50 mm²: brown/black yellow/red

12 / 0,38 mm²: orange/red violet/blue/brown/black yellow/grey

0,50 mm²: brown/black yellow/red

13 / 0,38 mm²: white/brown green/yellow/gray/pink blue/red

0,50 mm²: black/violet grey-pink/red-blue

• Material list
