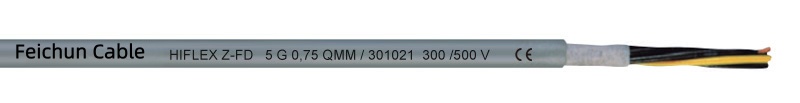

HIFLEX Z-FD
Rated voltage: Uo/U 300/500V
Test voltage: 2000V
Insulation resistance at +20° C:≥ :(+20°C):≧20MΩx km
Bending radius:
stationary : 4 x cable diameterØ
flexible: 7.5 x cable diameterØ
Temperature range:
flexible: -5°C - 80°C
stationary: -40°C - 80°C
Radiation resistance: ≤80×10cJ/kg
Flame retardant: IEC 60332-1

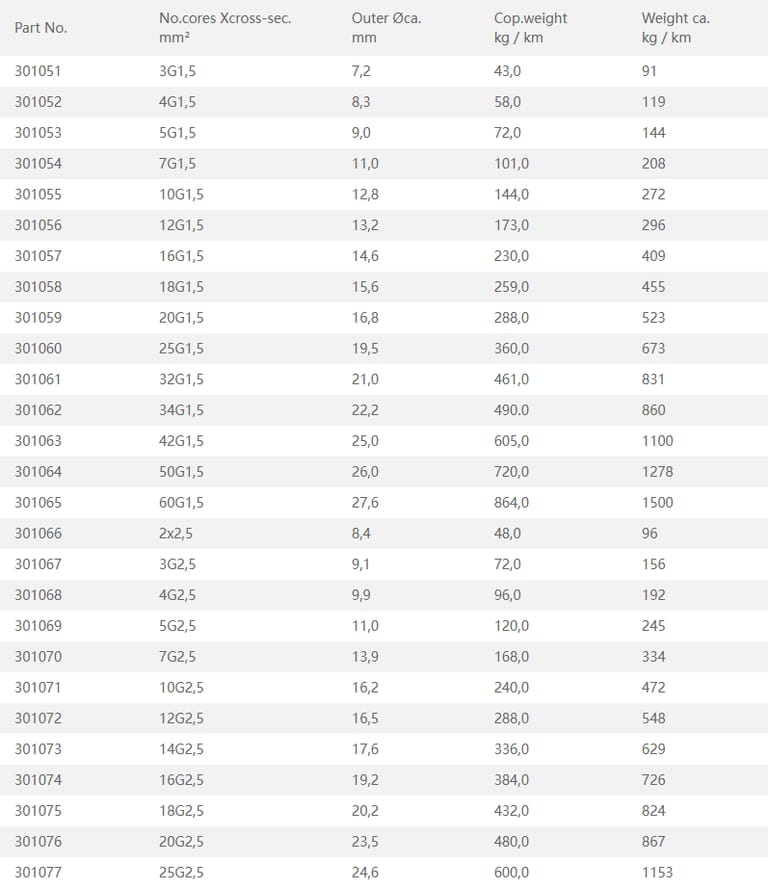

Material list
Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
301001 | 2x0,5 | 5,5 | 9,6 | 40 |
301002 | 3G0,5 | 5,7 | 14,0 | 47 |
301003 | 4G0,5 | 6,1 | 19,0 | 56 |
301004 | 5G0,5 | 6,7 | 24,0 | 67 |
301005 | 7G0,5 | 8,3 | 34,0 | 97 |
301006 | 10G0,5 | 9,6 | 48,0 | 128 |
301007 | 12G0,5 | 9,9 | 58,0 | 145 |
301008 | 14G0,5 | 10,8 | 67,0 | 174 |
301009 | 16G0,5 | 11,3 | 77,0 | 196 |
301010 | 18G0,5 | 11,9 | 86,0 | 217 |
301011 | 20G0,5 | 12,5 | 96,0 | 238 |
301012 | 25G0,5 | 14,7 | 120,0 | 292 |
301013 | 32G0,5 | 15,1 | 154,0 | 357 |
301014 | 36G0,5 | 16,3 | 173,0 | 414 |
301015 | 42G0,5 | 18,8 | 202,0 | 504 |
301016 | 50G0,5 | 19,6 | 240,0 | 582 |
301017 | 60G0,5 | 20,7 | 290,0 | 676 |
301018 | 2x0,75 | 6,0 | 14,0 | 43 |
301019 | 3G0,75 | 6,7 | 22,0 | 59 |
301020 | 4G0,75 | 7,3 | 29,0 | 72 |
301021 | 5G0,75 | 7,7 | 36,0 | 87 |
301022 | 7G0,75 | 9,4 | 50,0 | 130 |
301023 | 10G0,75 | 10,5 | 72,0 | 176 |
301024 | 12G0,75 | 10,7 | 86,0 | 200 |
301025 | 16G0,75 | 12,7 | 115,0 | 256 |
301026 | 18G0,75 | 13,3 | 130,0 | 282 |
301027 | 20G0,75 | 14,1 | 180,0 | 316 |
301028 | 25G0,75 | 16,4 | 195,0 | 407 |
301029 | 32G0,75 | 17,7 | 245,0 | 496 |
301030 | 36G0,75 | 19,0 | 159,2 | 572 |
301031 | 42G0,75 | 21,2 | 296,0 | 662 |
301032 | 50G0,75 | 22,1 | 360,0 | 769 |
301033 | 60G0,75 | 23,4 | 439,0 | 893 |
301034 | 2x1,0 | 6,2 | 19,0 | 49 |
301035 | 3G1,0 | 7,0 | 29,0 | 69 |
301036 | 4G1,0 | 7,1 | 38,0 | 85 |
301037 | 5G1,0 | 8,0 | 48,0 | 110 |
301038 | 7G1,0 | 9,6 | 67,0 | 151 |
301039 | 10G1,0 | 11,6 | 96,0 | 208 |
301040 | 12G1,0 | 12,0 | 115,0 | 237 |
301041 | 16G1,0 | 13,2 | 154.0 | 306 |
301042 | 18G1,0 | 14,2 | 173,0 | 346 |
301043 | 20G1,0 | 14,6 | 192,0 | 379 |
301044 | 25G1,0 | 17,1 | 240,0 | 485 |
301045 | 32G1,0 | 19,0 | 307,0 | 623 |
301046 | 42G1,0 | 22,0 | 403,0 | 795 |
301047 | 50G1,0 | 22,5 | 480,0 | 925 |
301048 | 60G1,0 | 24,9 | 576,0 | 1110 |
301049 | 65G1,0 | 25,5 | 624,0 | 1360 |
301050 | 2x1,5 | 6,8 | 29,0 | 62 |
