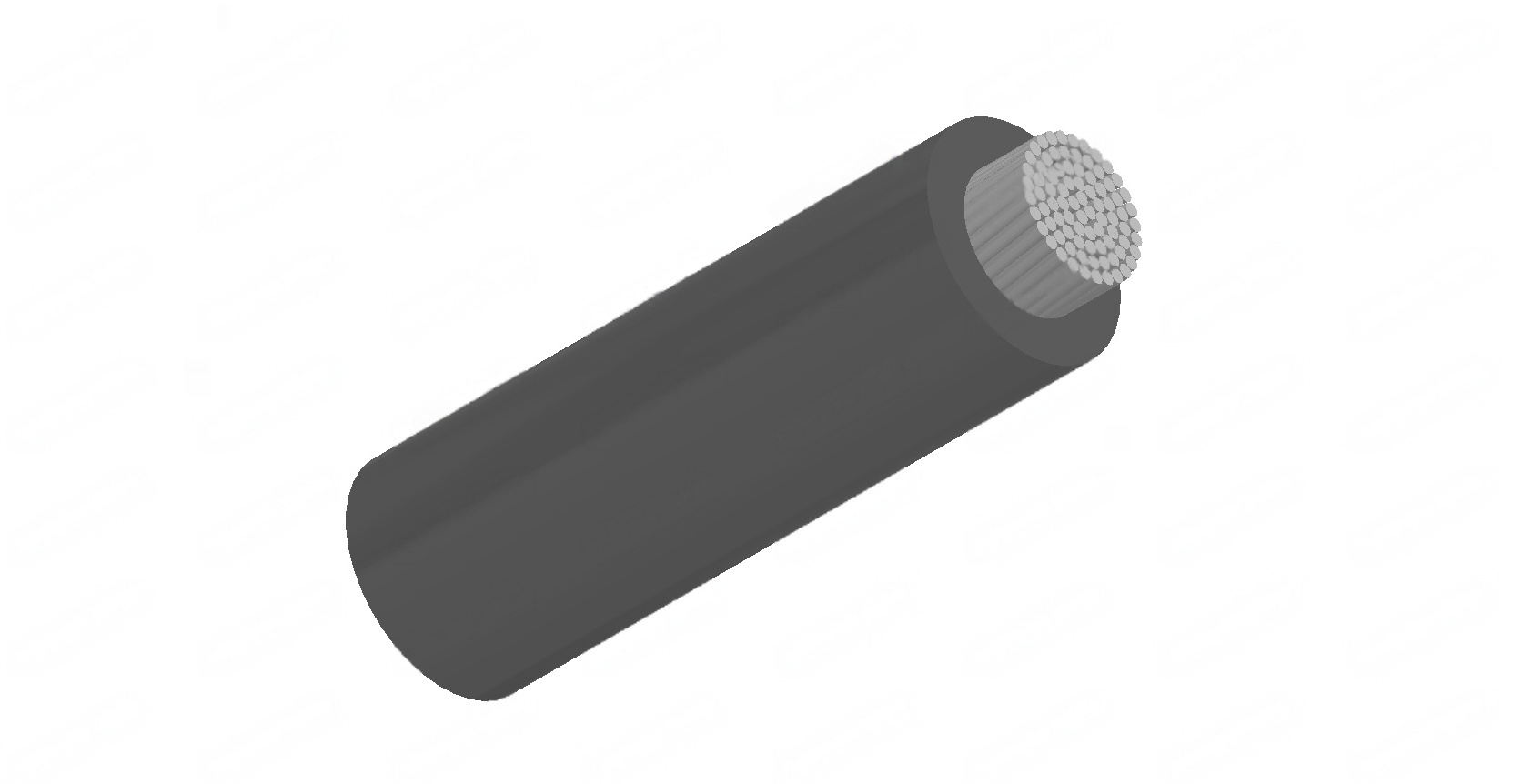

High Temperature Resistant Cables +145°C 0.6/1kV
Application
These cables are specifically designed for connecting generator output of thermal class (B),motors, transformers and relays requiring for high temperature resistant.
Standards
IEC 60502

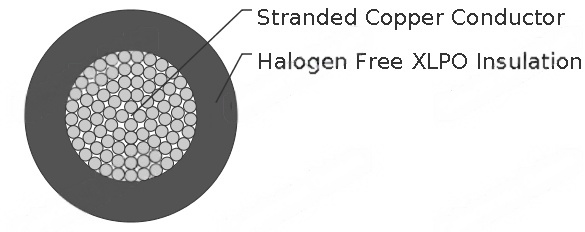

Construction
Conductor | Stranded tinned copper wires, class 5/class 6 according to DIN VDE 0295/ IEC 60228 |
Insulation | Halogen-free XLPO |
Technical Data
Rated Voltage U0/U(Um) | 0.6/1kV |
Operating Temperatures | -55℃~+145℃ |
Minimum Bending Radius | 6×OD |
Flame Retardant | IEC 60332-3 |
Halogen Free | IEC 60754 |
Corrosive Gases | IEC 60754 |
Smoke Density | IEC 61034 |
Oil Resistant | Yes |
Ozone Resistant | Yes |
UV Resistant | Yes |
Cold Resistant | CSA C 22.2 |
Dimensions and Weight
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×6 | 5.4 | 70 |
1×10 | 6.8 | 119 |
1×16 | 8.5 | 180 |
1×25 | 10.3 | 270 |
1×35 | 11.8 | 373 |
1×50 | 13.9 | 528 |
1×70 | 16.0 | 728 |
1×95 | 18.5 | 966 |
1×120 | 20.5 | 1230 |
1×150 | 22.1 | 1530 |
1×185 | 24.8 | 1880 |
1×240 | 27.7 | 2500 |
1×300 | 37.8 | 3910 |
1×400 | 38.7 | 4870 |
