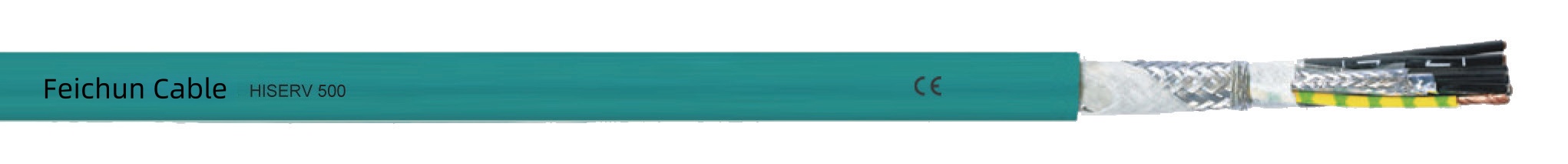

HISERV 500
Rated voltage:Uo/U 600/1000V
Test voltage:4000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary :4 x cable diameterØ
flexible:7.5 x cable diameterØ
Temperature range:
flexible:-40°C - 90°C
stationary:-40°C - 90°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
Coupling resistance: ≤ 250Ω/km
Cable standard: Complies with DIN 0295, 0250, and 0281
Material list
Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
316100 | (4x1,5+2x(2x1,0)) | 12,6 | 186,0 | 242 |
316101 | (4x2,5+2x(2x1,0)) | 14,6 | 232,0 | 318 |
316102 | (4x4,0+2x(2x1,0)) | 16,0 | 308,0 | 415 |
316103 | (4x6,0+2x(2x1,0)) | 19,2 | 420,0 | 575 |
316104 | (4x10,0+2x(2x1,0)) | 22,8 | 647,0 | 805 |
316105 | (4x16,0+2x(2x1,0)) | 26,0 | 918,0 | 1122 |
316106 | (4x25,0+2x(2x1,0)) | 30,0 | 1402,0 | 1585 |
316107 | (4x35,0+2x(2x1,0)) | 30,4 | 1882,0 | 2185 |
316108 | (4x50,0+2x(2x1,0)) | 36,2 | 2574,0 | 2977 |
