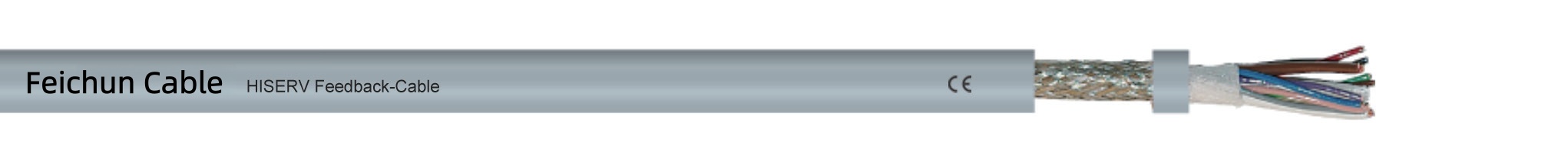

HISERV Feedback-Cable
Rated voltage:Uo/U 600/1000V
Test voltage:4000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary :4 x cable diameterØ
flexible:7.5 x cable diameterØ
Temperature range:
flexible:-40°C - 80°C
stationary:-50°C - 90°C
Flame retardant:IEC 60332-1
Insulation Resistance: >20 MΩ per km
Coupling Resistance: ≤ 250 Ω/km
Cable Standard: Complies with DIN VDE 0250/0281/0282
Material list
Part No. | No.cores Xcross-sec. | Outer Øca. | Cop.weight | Weight ca. |
|---|---|---|---|---|
316110 | 12x0,25 | 7,5 | 65,0 | 90 |
316111 | 3x2x0,14+4x0,14+4x0,25+2x0,5 | 10,8 | 92,0 | 148 |
316112 | 4x2x0,34+4x0,5 | 9,5 | 77,0 | 145 |
