How Can You Detect and Solve Signal Crosstalk Within Mining Cables?

Signal crosstalk represents one of the most persistent yet often overlooked challenges in South Africa's mining industry. This electromagnetic interference phenomenon occurs when signals from one cable conductor inadvertently affect adjacent conductors, creating unwanted noise that can compromise data integrity and operational efficiency.

In South Africa's mining sector, which contributes approximately 8% to the country's GDP, signal integrity has become increasingly critical. Modern mining operations rely heavily on sophisticated digital communication systems, from automated drilling equipment to real-time monitoring sensors that ensure worker safety and operational efficiency. The underground environment, with its confined spaces, extensive cable runs, and proximity to high-power electrical equipment, creates ideal conditions for signal interference.

As South African mines become more digitised, with Industry 4.0 technologies transforming traditional mining practices, the reliance on robust data and communication cables has intensified. Underground operations now depend on seamless communication between surface control centres and deep-level equipment, making signal crosstalk a potentially costly problem that demands immediate attention.

What Is Crosstalk in Mining Cables?

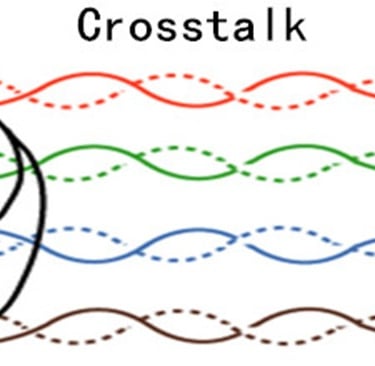

Crosstalk is essentially unwanted electromagnetic interference between adjacent cable pairs within the same bundle or binder. When electrical signals travel through copper conductors, they generate electromagnetic fields that can induce voltages in nearby conductors, creating interference that manifests as noise or signal degradation.

Several factors contribute to crosstalk in mining environments. Electromagnetic induction occurs naturally when current flows through conductors, but the problem becomes pronounced due to poor cable design choices, excessive cable bundling in confined mine shafts, or improper installation practices that don't account for electromagnetic compatibility.

Mining engineers must understand three primary types of crosstalk that affect underground operations:

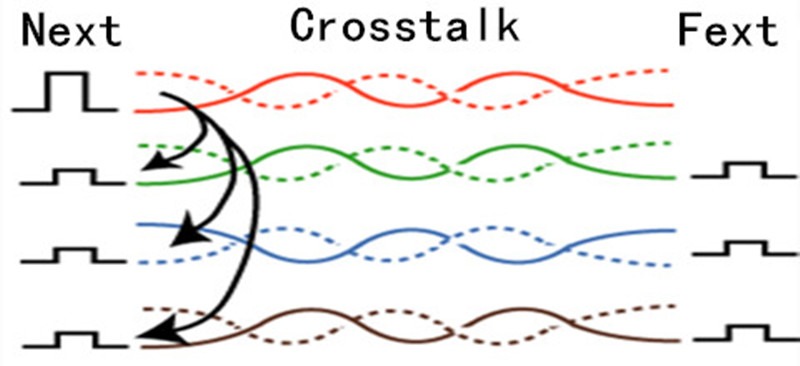

Near-End Crosstalk (NEXT) occurs when interference is measured at the same end of the cable where the disturbing signal originates. This type of crosstalk particularly affects G.SHDSL-based communication systems commonly used in mining control networks. NEXT is strongest at the transmitting end and can severely impact data transmission quality in control room environments.

Far-End Crosstalk (FEXT) manifests at the opposite end of the cable from where the interfering signal is transmitted. This phenomenon primarily affects DMT-based systems, including VDSL2 technologies increasingly deployed in modern mining operations for high-bandwidth applications. FEXT becomes more problematic over longer cable runs, which are common in deep-level South African mines.

Alien Crosstalk (AXT) represents interference between cables in different binders or bundles, though this is typically less severe than crosstalk within the same cable bundle. However, in densely packed cable trays common in mining installations, AXT can become a significant concern.

These interference types are particularly relevant in copper communication and control cables that form the backbone of modern mining operations, from conveyor control systems to environmental monitoring networks.

Why Is Crosstalk a Problem in Mining Environments?

South Africa's mining environments present unique challenges that amplify cable vulnerabilities. Underground conditions combine high humidity, temperature fluctuations, dust, vibration, and electromagnetic interference from heavy machinery to create a perfect storm for signal integrity problems.

The impact on safety-critical communication systems cannot be overstated. Automated drilling equipment relies on precise control signals that, when corrupted by crosstalk, can result in positioning errors or equipment malfunction. Monitoring sensors that track gas levels, structural stability, or equipment performance may provide inaccurate readings, potentially compromising worker safety and operational decisions.

Modern mining operations utilise SCADA (Supervisory Control and Data Acquisition) systems and remote control setups that depend on reliable data transmission. Crosstalk-induced downtime in these systems can halt production, leading to significant financial losses. In South Africa's competitive mining landscape, where operational efficiency directly impacts profitability, even minor communication disruptions can escalate to system-wide malfunctions.

Digital mines, which represent the future of South African mining, integrate numerous automated systems that communicate continuously. A single corrupted control signal due to crosstalk can cascade through interconnected systems, potentially causing widespread operational disruption. This interconnectedness means that signal integrity issues that might have been minor inconveniences in traditional mining operations can now become major safety and productivity concerns.

How to Detect Crosstalk in Mining Cables

Identifying crosstalk requires systematic monitoring and testing approaches. Common indicators include gradual signal degradation, delayed command execution, intermittent sensor readings, or unexplained data errors in control systems. Mining engineers should be particularly alert to patterns of interference that correlate with specific operational conditions or equipment usage.

Several specialised testing tools and techniques can accurately diagnose crosstalk issues:

Time Domain Reflectometry (TDR) provides detailed analysis of cable characteristics and can identify impedance irregularities that contribute to crosstalk. TDR testing helps pinpoint the exact location of interference sources along cable runs, which is particularly valuable in extensive underground installations.

Network Cable Analyzers offer comprehensive testing capabilities specifically designed for communication cables. These instruments can measure NEXT and FEXT parameters according to industry standards, providing quantitative data on crosstalk levels. Modern analyzers can test multiple cable pairs simultaneously, making them efficient for large-scale mining installations.

Oscilloscopes remain essential for analysing analogue signal disturbances and can reveal crosstalk patterns that might not be apparent through digital testing methods. They're particularly useful for troubleshooting legacy systems or mixed analogue-digital installations common in older South African mines.

Standards-based testing is crucial for ensuring reliable results. International standards such as ISO/IEC 11801 for structured cabling, TIA-568 for commercial building telecommunications cabling, and relevant SANS (South African National Standards) specifications provide benchmarks for acceptable crosstalk levels. These standards ensure that testing results are meaningful and comparable across different installations.

Design and Installation Practices to Prevent Crosstalk

Preventing crosstalk begins with proper cable selection and design. Twisted pair configurations inherently reduce crosstalk by ensuring that electromagnetic fields from adjacent conductors cancel each other out. Shielded cables, particularly Shielded Twisted Pair (STP) or Screened Foiled Twisted Pair (SFTP) types, provide additional protection against external electromagnetic interference.

Physical cable separation and routing practices become critical in mine tunnels and switchgear rooms where space is limited. Maintaining adequate separation between signal cables and power cables reduces electromagnetic coupling. When parallel runs are unavoidable, crossing cables at right angles minimises interference compared to parallel routing.

Avoiding over-bundling and tight bends is essential for maintaining signal integrity. While space constraints in mining environments often necessitate compact cable installations, excessive bundling increases crosstalk between adjacent pairs. Similarly, tight bends can alter cable geometry and increase susceptibility to interference.

Proper grounding and bonding practices provide crucial protection against electromagnetic interference. Establishing equipotential bonding between cable shields, equipment chassis, and facility grounding systems creates a reference point that helps minimise interference. In mining environments, where multiple electrical systems operate simultaneously, comprehensive grounding strategies become even more important.

Solving Existing Crosstalk Issues

When crosstalk problems are identified, a systematic troubleshooting approach ensures efficient resolution. The first step involves isolating affected cable runs to determine the scope of the problem. This may require temporarily disconnecting specific circuits or using network segmentation techniques to identify problematic sections.

Physical inspection of cable installations often reveals obvious sources of interference. Damaged cable shielding, improper cable routing near power lines, or excessive mechanical stress can all contribute to crosstalk. Visual inspection should focus on areas where cables pass through transitions, support points, or areas with high electromagnetic activity.

In cases where inspection reveals inadequate cable shielding or inappropriate cable types, replacement with modern low-crosstalk alternatives may be necessary. This retrofitting process should consider not only immediate performance improvements but also future expansion requirements and emerging technologies.

Testing after remediation confirms that corrective measures have been effective. This verification step should use the same testing methods employed during initial diagnosis to ensure consistent evaluation criteria.

Retrofitting decisions require careful cost-benefit analysis. While replacing entire cable installations can be expensive, the long-term benefits of improved reliability and reduced maintenance often justify the investment. Modern cables designed specifically for high-interference environments typically offer significantly better performance than older installations.

Ferrite beads and filters can provide cost-effective solutions for sensitive circuits where cable replacement isn't immediately feasible. These components suppress high-frequency interference and can be particularly effective in addressing specific crosstalk problems without requiring extensive cable modifications.

South African Case Example

A compelling example of successful crosstalk mitigation comes from a platinum mine in Limpopo Province, where production delays and equipment malfunctions were traced to data transmission problems in the mine's automated systems. The facility had been experiencing intermittent failures in conveyor control systems and environmental monitoring equipment, resulting in production stoppages and increased maintenance costs.

Initial investigation revealed that poorly shielded sensor cables had been routed in close proximity to high-voltage motor control cables serving the main hoisting equipment. The electromagnetic fields generated by these power cables were inducing significant crosstalk in adjacent data cables, corrupting control signals and sensor readings.

The diagnostic process involved comprehensive cable testing using network analyzers to measure NEXT and FEXT levels throughout the affected systems. Testing revealed crosstalk levels that exceeded acceptable limits defined by industry standards, particularly during peak operational periods when multiple high-power systems operated simultaneously.

The solution involved replacing the affected cables with shielded control cables specifically designed for high-interference mining environments. The new installation utilised cables meeting SANS 1574 specifications for mining applications and IEC 60332 standards for flame performance. Additionally, cable routing was modified to maintain greater separation from power cables, and dedicated cable trays were installed to prevent future interference issues.

The outcome demonstrated the value of professional crosstalk mitigation. System stability improved dramatically, with data transmission errors reduced by over 95%. More importantly, unplanned production shutdowns related to communication failures were virtually eliminated, resulting in significant cost savings and improved operational efficiency.

Cable Types Designed to Reduce Crosstalk

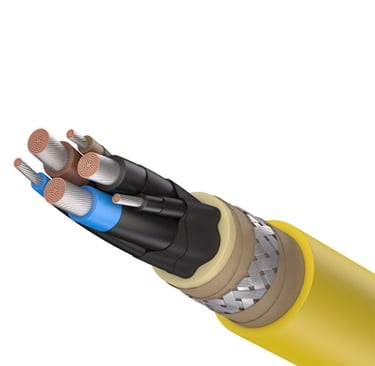

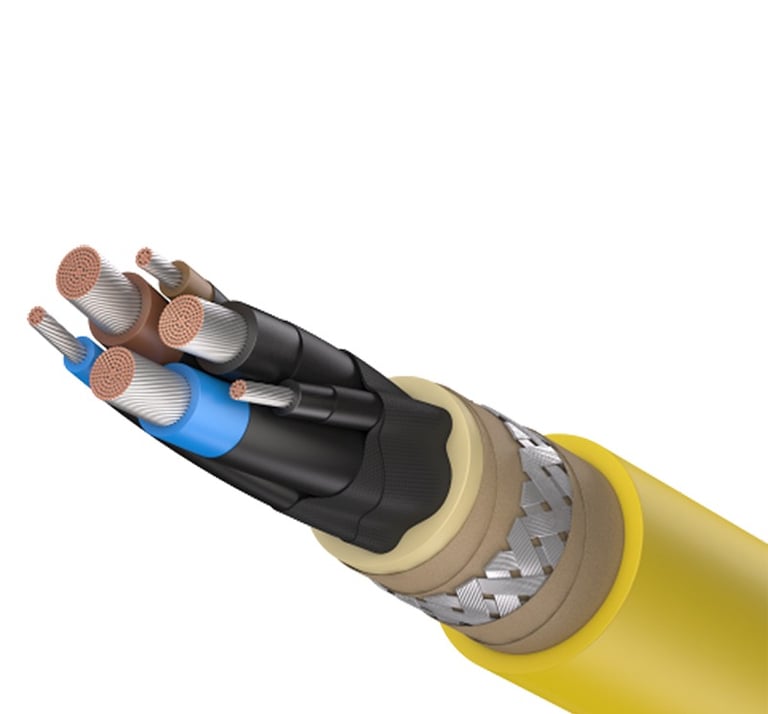

Modern mining operations benefit from specialised cable designs that inherently resist crosstalk. Low Smoke Zero Halogen (LSZH) cables with twisted pair configurations provide excellent performance while meeting safety requirements for confined spaces. These cables combine fire safety characteristics essential for underground use with superior electromagnetic compatibility.

Shielded copper communication cables compliant with SANS 1520-1 offer specific advantages for South African mining applications. These standards address the unique requirements of mining environments, including mechanical durability, flame resistance, and electromagnetic shielding effectiveness. Proper specification and installation of compliant cables significantly reduces crosstalk susceptibility.

Hybrid control cables that combine power and signal conductors in a single cable assembly incorporate built-in separation barriers that prevent crosstalk between different circuit types. These cables are particularly valuable in mining applications where space constraints make separate cable runs impractical.

Role of Standards and Compliance

SANS 1520-1 provides specific guidelines for low-voltage signal cables used in South African mining operations. These standards address not only basic performance requirements but also environmental considerations unique to mining environments. Compliance with these standards ensures that cable installations will perform reliably under typical mining conditions.

NRCS (National Regulator for Compulsory Specifications) type approval is mandatory for data-critical installations in many mining applications. This approval process ensures that cables meet safety and performance requirements specific to South African conditions and regulations.

International standards such as IEC 60502 for power cables and ISO/IEC 11801 for structured cabling provide additional benchmarks for performance and compatibility. These standards ensure that mining installations can integrate with global technology systems while maintaining local compliance requirements.

Frequently Asked Questions

What exactly is crosstalk in mining cables?
A：Crosstalk refers to electromagnetic interference where signals from one conductor affect another, causing unwanted noise or data errors. In mining environments, this interference can disrupt critical control and monitoring systems.

Why does crosstalk happen more often in underground mines?
A: Dense cable bundling, long cable runs, and close proximity to power lines in confined underground spaces increase the likelihood of electromagnetic interference between cables.

Can crosstalk damage equipment or is it only a signal issue?
A: While primarily a signal integrity issue, crosstalk can cause miscommunication between automated systems, potentially leading to mechanical faults or unsafe operational conditions.

What's the best way to detect crosstalk in a mine?
A: Use specialised cable analyzers that support NEXT and FEXT measurements according to industry standards. Additionally, monitor system error logs in control networks for patterns that suggest interference.

Are shielded cables always required to prevent crosstalk?
A: Not always, but in high-interference environments or data-critical applications common in mining, shielded twisted pair cables are strongly recommended for reliable performance.

What standards apply to mining cables and crosstalk mitigation in South Africa?
A: Key standards include SANS 1520-1 for mining signal cables, NRCS type approval requirements, and IEC 60332 for flame performance characteristics.

Conclusion

Signal crosstalk may appear to be a minor technical issue, but in South Africa's high-stakes mining operations, it can lead to significant operational disruptions, safety concerns, and financial losses. The increasing digitisation of mining operations makes robust communication systems more critical than ever before.

By understanding proper detection methods and applying appropriate cable design and installation practices, mining companies can ensure reliable, interference-free communication networks that support both current operations and future technological advances. The combination of specialised testing equipment, professional installation practices, and compliance with relevant standards provides a comprehensive approach to crosstalk mitigation.

Prioritising compliance with standards such as SANS 1520-1 and NRCS requirements ensures both safety and performance while providing a framework for consistent, professional installations. As South African mining continues to evolve towards more automated and interconnected operations, investing in proper cable infrastructure and crosstalk prevention becomes not just a technical necessity, but a strategic advantage in maintaining competitive, safe, and efficient mining operations.

The success stories from facilities that have addressed crosstalk issues demonstrate that proper attention to signal integrity pays dividends in operational reliability, safety performance, and long-term profitability. In an industry where downtime can cost thousands of rand per hour, ensuring interference-free communication is simply good business practice.
