How Can You Prevent Mining Cable Sheath Abrasion Underground?

Underground mining operations across South Africa's gold, platinum, and coal sectors depend heavily on robust electrical cable systems to maintain continuous production. These cables serve as the lifeline for ventilation fans, conveyor systems, pumps, and critical safety equipment operating in some of the world's deepest mines. However, the harsh underground environment poses significant challenges to cable integrity, with sheath abrasion being one of the most persistent and costly problems facing mining engineers today.

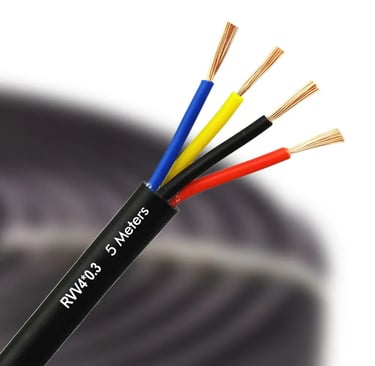

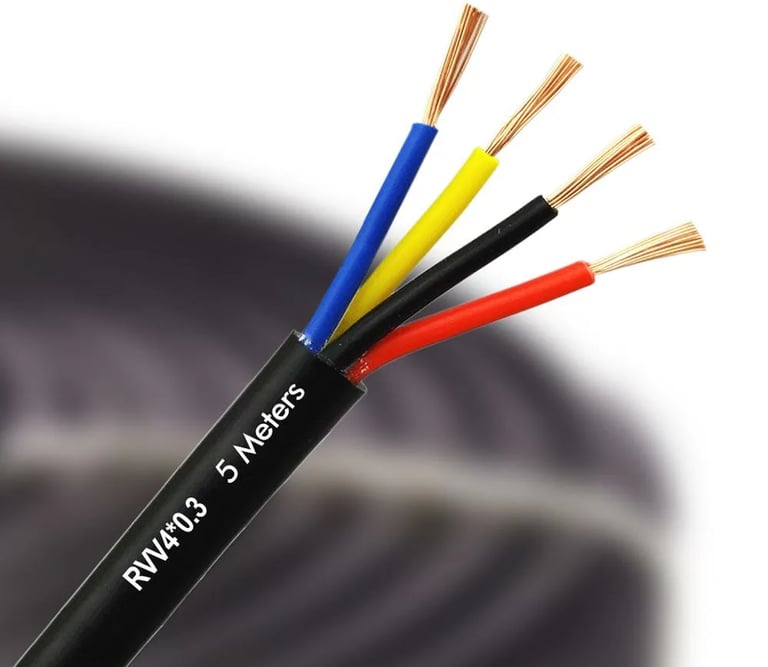

Cable sheath abrasion occurs when the protective outer layer of electrical cables wears away due to friction, mechanical stress, or contact with abrasive surfaces. In underground mining environments, this degradation can happen rapidly, leading to exposed conductors, electrical faults, and potentially catastrophic failures that endanger both personnel and equipment.

With South Africa's coal sector celebrating zero fatalities in 2025 so far, maintaining this safety record requires continued vigilance in all aspects of mine operations, including cable system integrity. As the Department of Mineral and Petroleum Resources has identified platinum, manganese, iron-ore, coal and chrome ore as "high-critical minerals" for South Africa, ensuring reliable power distribution systems becomes even more crucial for maintaining production targets and international competitiveness.

The consequences of cable sheath failure extend far beyond immediate repair costs. When cables fail in deep underground operations, the resulting downtime can cost mining companies millions of rand in lost production, whilst also compromising worker safety and potentially violating Mine Health and Safety Act requirements.

Common Causes of Sheath Abrasion in Underground Mining

Understanding the root causes of cable sheath abrasion is essential for developing effective prevention strategies. South African underground mines present unique challenges that accelerate cable degradation through various mechanisms.

Harsh, Abrasive Environments

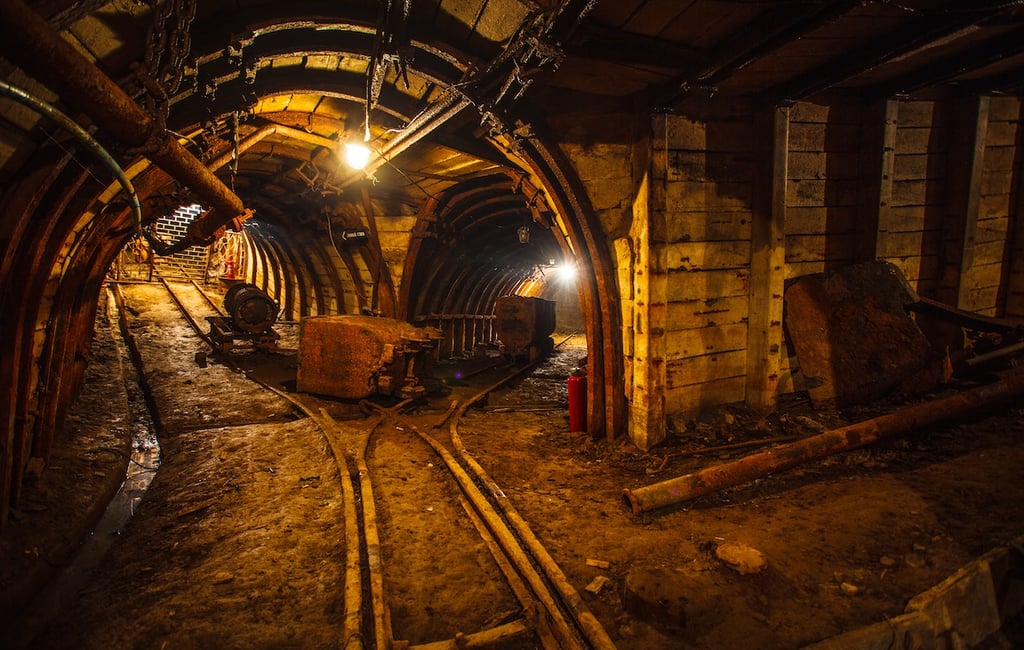

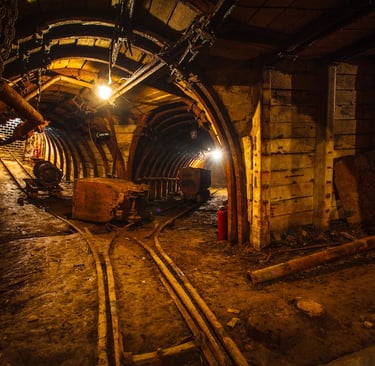

The underground mining environment is inherently hostile to cable systems. Sharp rock edges, concrete structures, and metal framework create countless opportunities for cables to suffer mechanical damage. In deep-level gold mines, where operations extend several kilometres underground, cables must navigate complex routing paths that expose them to constant friction against rough surfaces.

The geological conditions in South African mines compound these challenges. Hard rock formations create particularly abrasive environments, whilst the presence of water and corrosive minerals accelerates material degradation. Temperature fluctuations between surface and underground conditions also contribute to cable sheath stress and premature wear.

Frequent Cable Movement and Dragging

Mobile equipment such as shuttle cars, continuous miners, and load-haul-dump vehicles require flexible cable connections that must withstand constant movement. These trailing cables are frequently dragged across uneven mine floors, creating significant abrasion forces that gradually wear through protective sheathing.

The problem becomes particularly acute in mechanised mining operations where equipment moves rapidly and frequently. Cable routing systems that seemed adequate during initial installation may prove insufficient as mining operations evolve and equipment usage patterns change.

Heavy Machinery Contact

Underground mining equipment operates in confined spaces where cable strikes are inevitable. Roof bolters, drilling equipment, and transport vehicles can inadvertently contact cables, causing immediate damage or creating weak points that lead to future failures.

The trend towards larger, more powerful mining equipment has intensified this problem. Modern continuous miners and longwall equipment generate higher forces that can easily damage improperly protected cables.

Chemical Exposure

South African mines often encounter aggressive chemical environments that attack cable sheathing materials. Acidic mine water, hydraulic fluids, and diesel exhaust create corrosive conditions that weaken cable sheaths over time.

Coal mines present additional challenges with methane gas exposure and the need for intrinsically safe electrical systems. The interaction between these safety requirements and cable protection strategies requires careful consideration during system design.

Improper Installation Practices

Many cable failures stem from inadequate installation practices that fail to account for the harsh underground environment. Insufficient support spacing, inappropriate bend radii, and poor routing decisions create stress concentrations that accelerate sheath wear.

The pressure to minimise installation time and costs can lead to compromises in cable protection that prove costly in the long term. Without proper planning and execution, even the highest-quality cables will fail prematurely.

Risks and Consequences of Cable Sheath Wear

The implications of cable sheath degradation extend far beyond simple maintenance concerns, potentially threatening the entire mining operation's viability.

Electrical Faults and System Failures

When cable sheaths wear through to expose insulation or conductors, the risk of electrical faults increases dramatically. Ground faults, short circuits, and phase-to-phase faults can occur without warning, potentially damaging expensive equipment and creating dangerous conditions for personnel.

In underground environments where moisture is prevalent, exposed conductors can create ground fault conditions that trip protective devices and shut down critical systems. The challenge of accessing and repairing these faults in confined underground spaces adds significant time and cost to restoration efforts.

Fire and Explosion Hazards

Perhaps most critically, damaged cables in underground mining environments can become ignition sources for fires or explosions. In coal mines where methane gas may be present, any electrical fault represents a serious safety hazard that could trigger catastrophic events.

The confined nature of underground workings means that fires can quickly become life-threatening, making cable integrity a fundamental safety requirement rather than merely a maintenance consideration.

Production Downtime and Economic Impact

With mining costs in South Africa becoming increasingly significant due to deeper shafts and higher operational expenses, unplanned downtime from cable failures can devastate profitability. Modern mining operations depend on continuous power supply for ventilation, pumping, and production equipment.

A single cable failure can shut down entire sections of a mine, affecting hundreds of workers and millions of rand in daily production. The ripple effects of such failures extend beyond immediate production losses to include contractual penalties, customer relationship damage, and potential market share erosion.

Regulatory Compliance Violations

The Mine Health and Safety Act sets out specific health and safety requirements for mining operations in South Africa, and cable system failures that compromise worker safety can result in regulatory sanctions, work stoppages, and legal liability.

Compliance with electrical safety standards is not optional in South African mining operations. Regular inspections and maintenance of cable systems are required by law, and failures that result from inadequate attention to cable protection can lead to serious consequences for mine operators.

Increased Maintenance Costs

Beyond the immediate costs of cable replacement, degraded cable systems require increased maintenance attention that diverts resources from productive activities. Emergency repairs in underground locations typically cost significantly more than planned maintenance activities.

The hidden costs of cable sheath wear include increased inspection frequency, additional spare parts inventory, and the need for specialised repair expertise that may not be readily available in remote mining locations.

Best Practices to Prevent Cable Sheath Abrasion Underground

Effective prevention of cable sheath abrasion requires a comprehensive approach that addresses design, installation, and maintenance considerations.

Use of Protective Coverings

Armoured Cable Systems

Armoured cables provide the most robust protection against mechanical damage in underground mining environments. Steel wire armour or steel tape armour creates a barrier that can withstand significant mechanical stress while maintaining electrical integrity.

For applications requiring maximum protection, cables with both inner and outer armour layers offer redundant protection that can prevent catastrophic failures even when the outer protection is compromised.

Protective Sleeves and Wrapping

Where armoured cables are not feasible, protective sleeves and wrapping materials can provide effective abrasion resistance. Modern materials such as polyurethane sleeves, spiral cable wrap, and abrasion-resistant tape offer cost-effective protection for specific applications.

These protective systems work best when properly sized and installed according to manufacturer specifications. Inadequate coverage or improper installation can create vulnerable points that accelerate rather than prevent cable damage.

Optimised Cable Routing

Elevated Cable Support Systems

Lifting cables off the mine floor using properly designed support systems eliminates many sources of abrasion damage. Cable trays, hooks, and cleats should be positioned to maintain proper cable spacing and support intervals.

The key to effective cable support is maintaining consistent support spacing that prevents cable sagging whilst avoiding excessive tension that could damage cable conductors. Support systems must also accommodate thermal expansion and contraction of cables under varying load conditions.

Strategic Route Planning

Careful planning of cable routes can avoid many potential abrasion sources. Routes should avoid sharp edges, high-traffic areas, and locations where mobile equipment operation creates collision risks.

Where cable routes must cross high-traffic areas, proper protection such as cable bridges or buried conduits should be provided. The additional cost of these protective measures is typically far less than the cost of cable failures and associated downtime.

Festoon Systems for Mobile Equipment

For applications involving mobile equipment such as conveyors or shuttle cars, festoon systems provide controlled cable movement that minimises abrasion forces. These systems use carriers or trolleys to support cables whilst allowing necessary movement.

Properly designed festoon systems can virtually eliminate cable abrasion by controlling cable movement and preventing contact with abrasive surfaces. The investment in festoon systems typically pays for itself quickly through reduced cable replacement costs.

Choosing the Right Cable Type

SANS-Compliant Cable Selection

SANS 1520 covers flexible electrical trailing cables for use in mines, providing specifications for cables designed specifically for underground mining applications. These standards ensure that cables meet minimum requirements for mechanical protection, electrical performance, and environmental resistance.

SANS 1574 covers flexible cores, cords and cables, including panel wire, cabtyre and ripcord, whilst SANS 1520 covers rubber insulated cables for both low voltage and medium voltage applications. Selecting cables that meet or exceed these standards is essential for reliable underground operation.

Material Selection for Harsh Environments

Based on the referenced technical guidance, TPE (Thermoplastic Elastomer) materials offer superior abrasion resistance compared to traditional PVC or PUR materials. However, material selection must consider the specific environmental conditions and mechanical stresses present in each application.

For applications involving exposure to oils, chemicals, or extreme temperatures, specialised cable compounds may be required. The key is matching cable material properties to the specific challenges present in each installation.

Reinforced Sheathing Options

Cables with multiple protective layers or reinforced sheathing provide enhanced protection against mechanical damage. These may include additional protective jackets, reinforcing braids, or composite sheathing materials designed for extreme service conditions.

The additional cost of reinforced cables is typically justified by extended service life and reduced maintenance requirements, particularly in applications where cable replacement is difficult or costly.

Regular Inspection and Maintenance

Scheduled Visual Inspections

Regular visual inspection of cable systems is essential for early detection of abrasion damage. Inspections should focus on areas where cables are most vulnerable, including support points, crossings, and locations where mobile equipment operates.

Documentation of inspection findings provides valuable data for optimising maintenance schedules and identifying recurring problem areas that may require design modifications.

Sheath Integrity Testing

Advanced testing methods can detect cable sheath degradation before visible damage occurs. Techniques such as partial discharge testing, insulation resistance measurement, and thermal imaging can identify developing problems.

These testing methods require specialised equipment and training but can provide early warning of cable problems that allows for planned replacement rather than emergency repairs.

Preventive Replacement Programs

Establishing cable replacement schedules based on service life data can prevent unexpected failures. This approach requires tracking cable installation dates, service conditions, and failure history to develop reliable replacement intervals.

Preventive replacement programs work best when combined with condition monitoring that can extend or shorten replacement intervals based on actual cable condition rather than arbitrary time schedules.

Operator Training

Safe Cable Handling Practices

Training mine personnel in proper cable handling techniques can significantly reduce mechanical damage. This includes proper lifting techniques, avoiding excessive pulling forces, and recognising signs of cable damage.

Regular refresher training ensures that all personnel understand their role in protecting cable systems and can identify potential problems before they become serious issues.

Equipment Operation Guidelines

Mobile equipment operators need specific training on avoiding cable damage during normal operations. This includes understanding cable routing, recognising cable protection systems, and following established procedures for working around cables.

Clear operating procedures and regular enforcement are essential for maintaining cable protection standards in the dynamic underground mining environment.

Standards and Regulations to Consider

South African National Standards (SANS)

Compliance with relevant SANS standards is essential for safe and reliable cable installations in South African mining operations. Key standards include:

• SANS 1520-1: Specifies requirements for flexible electrical trailing cables with operating voltages up to 1000V for use in mines

• SANS 1520-2: Covers medium voltage mining cables for applications above 1000V

• SANS 1574: Addresses flexible cores, cords and cables including specialised mining applications

These standards define minimum requirements for cable construction, testing, and performance that ensure adequate protection against the harsh underground mining environment.

NRCS Certification Requirements

The National Regulator for Compulsory Specifications (NRCS) requires certification of electrical equipment used in South African mines. This certification ensures that cables meet safety and performance requirements specific to the local mining environment.

Using NRCS-certified cables provides assurance that the products have been tested and approved for South African mining conditions, reducing the risk of premature failure and regulatory compliance issues.

Mine Health and Safety Act (MHSA) Compliance

The Mine Health and Safety Act places specific obligations on mine operators regarding electrical safety, including cable system integrity. Key requirements include:

• Regular inspection and maintenance of electrical systems

• Use of appropriate equipment for the intended service conditions

• Documentation of electrical system condition and maintenance activities

• Training of personnel in electrical safety practices

Failure to comply with MHSA requirements can result in work stoppages, legal penalties, and increased liability in the event of accidents or injuries.

Employer Responsibilities

Mine operators have specific legal obligations regarding cable system safety and maintenance. These responsibilities include:

• Ensuring that cable systems are designed and installed according to applicable standards

• Providing adequate training for personnel who work with or around electrical systems

• Maintaining documentation of electrical system condition and maintenance history

• Implementing corrective actions when deficiencies are identified during inspections

Meeting these responsibilities requires a comprehensive approach to cable system management that goes beyond basic maintenance to include proactive prevention strategies.

Future Trends in Sheath Protection

Smart Cable Technologies

Emerging technologies are revolutionising cable monitoring and protection in underground mining applications. Smart cables with integrated sensors can provide real-time monitoring of cable condition, including temperature, mechanical stress, and insulation integrity.

These systems can detect developing problems before they result in failures, allowing for planned maintenance rather than emergency repairs. The data collected from smart cable systems also provides valuable insights for optimising cable routing and support systems.

Real-Time Monitoring Systems

Industrial Internet of Things (IIoT) technologies are enabling continuous monitoring of cable systems throughout underground mining operations. Wireless sensors can track cable temperature, vibration, and mechanical stress, providing early warning of potential failures.

These monitoring systems integrate with mine control systems to provide alerts when cable conditions exceed safe operating parameters, enabling immediate corrective action before failures occur.

Self-Healing Cable Materials

Research into self-healing cable materials promises to revolutionise cable protection in harsh environments. These materials can automatically repair minor damage, extending cable service life and reducing maintenance requirements.

While still in development, self-healing cable technologies could provide breakthrough improvements in cable reliability for underground mining applications.

Advanced Protective Coatings

Development of new protective coating materials and application techniques is improving cable abrasion resistance. These coatings can be applied to existing cables or integrated into new cable designs to provide enhanced protection.

Nanotechnology-based coatings offer particular promise for providing superior abrasion resistance whilst maintaining cable flexibility and electrical performance.

Frequently Asked Questions (FAQ)

What is the best cable type to use in abrasive mining tunnels?

For abrasive underground mining environments, SANS 1520 Type 611 cables with TPE sheathing provide the best combination of abrasion resistance and flexibility. These cables are specifically designed for mining applications and offer superior protection against mechanical damage compared to standard industrial cables.

How often should sheath inspections be conducted?

Visual inspections should be conducted monthly for critical circuits and quarterly for general distribution systems. Areas with high mechanical stress or mobile equipment operation may require weekly inspections. The frequency should be adjusted based on experience with specific installations and environmental conditions.

Can damaged sheaths be repaired or should the cable be replaced?

Minor sheath damage can sometimes be repaired using appropriate repair techniques and materials, but significant damage typically requires cable replacement. The decision depends on the extent of damage, cable age, and criticality of the application. When in doubt, replacement is usually the safer option.

Do NRCS-certified cables offer better abrasion resistance?

NRCS certification ensures that cables meet minimum safety and performance requirements for South African mining conditions. While certification doesn't guarantee superior abrasion resistance, it provides assurance that the cables are suitable for the intended application and comply with local regulations.

What support spacing is recommended for underground mining cables?

Support spacing depends on cable size, weight, and installation conditions. Generally, support intervals of 1.5 to 2.0 meters are appropriate for most mining cable installations. Critical applications or areas with high mechanical stress may require closer spacing.

How can I determine if my current cables need replacement?

Look for signs of sheath wear, cracking, or discoloration. Electrical testing can detect insulation degradation before visible damage occurs. If cables are approaching their expected service life or have been involved in electrical faults, replacement should be considered.

Conclusion

Preventing cable sheath abrasion in underground mining operations requires a comprehensive approach that addresses design, installation, and maintenance considerations. The harsh underground environment in South African mines presents unique challenges that demand careful attention to cable protection strategies.

The key to successful cable sheath protection lies in understanding the specific environmental conditions and mechanical stresses present in each application. By selecting appropriate cable types, implementing proper installation practices, and maintaining regular inspection and maintenance programs, mining operations can significantly reduce cable failures and associated downtime.

The economic benefits of proper cable protection far outweigh the initial investment costs. With South Africa's mining production showing strong performance in 2025, maintaining reliable electrical systems becomes even more critical for sustaining productivity and competitiveness.

Proactive cable management not only saves costs but also protects the lives of underground personnel who depend on reliable electrical systems for their safety. The combination of proper cable selection, installation practices, and maintenance procedures creates a robust foundation for safe and efficient mining operations.

Mining companies should regularly audit their current cable systems and invest in proven prevention strategies. The cost of prevention is always less than the cost of failure, particularly in the challenging underground mining environment where cable replacement can be difficult, dangerous, and extremely expensive.

As South Africa continues to develop its mineral resources and maintain its position as a global mining leader, investing in reliable cable infrastructure becomes essential for long-term success. The strategies and practices outlined in this guide provide a roadmap for achieving superior cable system performance in underground mining operations.

By implementing these best practices and staying current with emerging technologies, South African mining companies can ensure that their electrical systems provide the reliable power distribution needed for safe, efficient, and profitable underground operations.
