How Do Cranes Lift Massive Loads Without Cable Failure? Exploring the SPREADERFLEX 3GSLTOE Crane Spreader Cable

Introduction

Cranes are the backbone of modern industrial operations, hoisting massive containers, molten metal ladles, and heavy machinery with precision and power. From bustling ports to steel mills and offshore platforms, these mechanical giants perform safety-critical tasks in some of the harshest environments on Earth. But what ensures these cranes can lift 30-ton containers high above a busy port without the cables snapping under immense stress? The answer lies in advanced engineering solutions like the Type SPREADERFLEX 3GSLTOE Crane Spreader Cable, a specialized, high-flex, heavy-duty cable designed for crane baskets and spreader systems.

This article dives deep into the SPREADERFLEX 3GSLTOE, exploring its technical specifications, usage scenarios, and unique advantages that make it a game-changer for crane operations. We’ll also examine a real-world case study from South Africa’s Port of Durban, highlighting how this cable enhances efficiency and safety in one of Africa’s busiest ports. Whether you’re an engineer, port operator, or simply curious about industrial technology, this exploration of the SPREADERFLEX 3GSLTOE will reveal how cutting-edge cable design drives global industry forward.

Technical Specifications of the SPREADERFLEX 3GSLTOE Cable

The SPREADERFLEX 3GSLTOE is engineered to meet the extreme demands of crane operations, combining electrical performance, mechanical strength, and environmental resilience. Below, we break down its key specifications and their significance.

Electrical Performance

The cable is rated for 0.6/1 kV (600/1000V), with maximum permissible operating voltages of 0.7/1.2 kV (AC) and 0.9/1.8 kV (DC), making it compatible with standard industrial crane electrical systems. It undergoes an AC test voltage of 3.5 kV for 5 minutes, ensuring high dielectric strength to prevent electrical faults in harsh environments. The current carrying capacity adheres to DIN VDE 0298, Part 4, guaranteeing reliable power delivery for crane hydraulics, actuators, and control systems.

A standout feature is its data transmission capabilities, incorporating special bus elements like ASI-Bus, Profibus, or fiber optics. These enable trouble-free communication for positioning sensors, safety systems, and operator interfaces, critical for precise container handling in modern cranes.

Mechanical and Environmental Specifications

The SPREADERFLEX 3GSLTOE is built to withstand the mechanical and environmental challenges of lifting operations:

• Temperature Range: Operates reliably from -50°C to +80°C, a 130°C span that supports global port operations, from Arctic winters to tropical summers.

• Tensile Strength: Features a safety factor of 5 at a 50-meter vertical suspension, meaning it can handle five times the expected load, ensuring safety under dynamic forces like wind or sudden stops.

• Travel Speed: Supports hoist speeds up to 160 m/min, enabling high-speed container handling without compromising cable integrity.

• Bending Radius: Allows 4x cable diameter (fixed) and 5x cable diameter (flexible), permitting tight bends without damage during continuous reeling and unreeling.

• Environmental Resistance: The polyurethane (PUR) outer sheath is oil-resistant, UV-resistant, ozone-resistant, and weatherproof, protecting the cable in harsh industrial and outdoor settings.

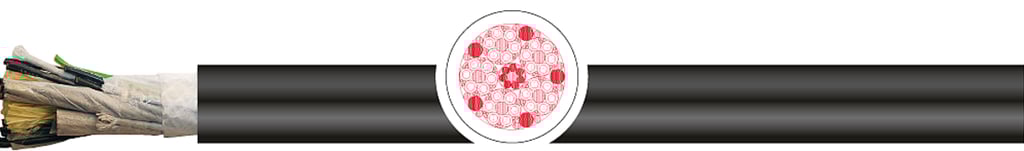

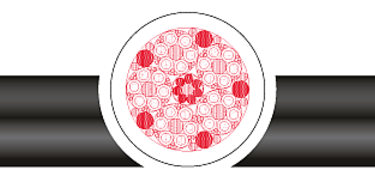

Construction Details

The cable’s innovative design integrates mechanical and electrical components into a single, robust system:

• Aramid Support Element: At its core, aramid fibers (used in bulletproof vests) provide exceptional tensile strength and flexibility, woven around lead ball cords to distribute weight and minimize sway during lifting.

• Fine-Stranded Conductors: Class FS (extra flexible) copper conductors ensure maximum flexibility and resistance to fatigue over millions of bend cycles, akin to a bundle of hair bending without breaking.

• EPR Insulation: A specialized 3GI3 compound maintains electrical stability across the extreme temperature range, remaining flexible in Arctic cold and durable in hot, sun-exposed conditions.

• Tinned Copper Braid Screening: Individual cores receive 60% coverage, while twisted screened pairs (TSP) get 80% coverage, shielding sensitive control signals from electromagnetic interference caused by high-current power circuits.

This integrated design ensures the cable functions as a unified system, combining mechanical support and electrical performance to simplify installation and enhance reliability.

Usage Scenarios

The SPREADERFLEX 3GSLTOE excels in a variety of demanding lifting applications, each requiring precision, durability, and safety.

Primary Applications

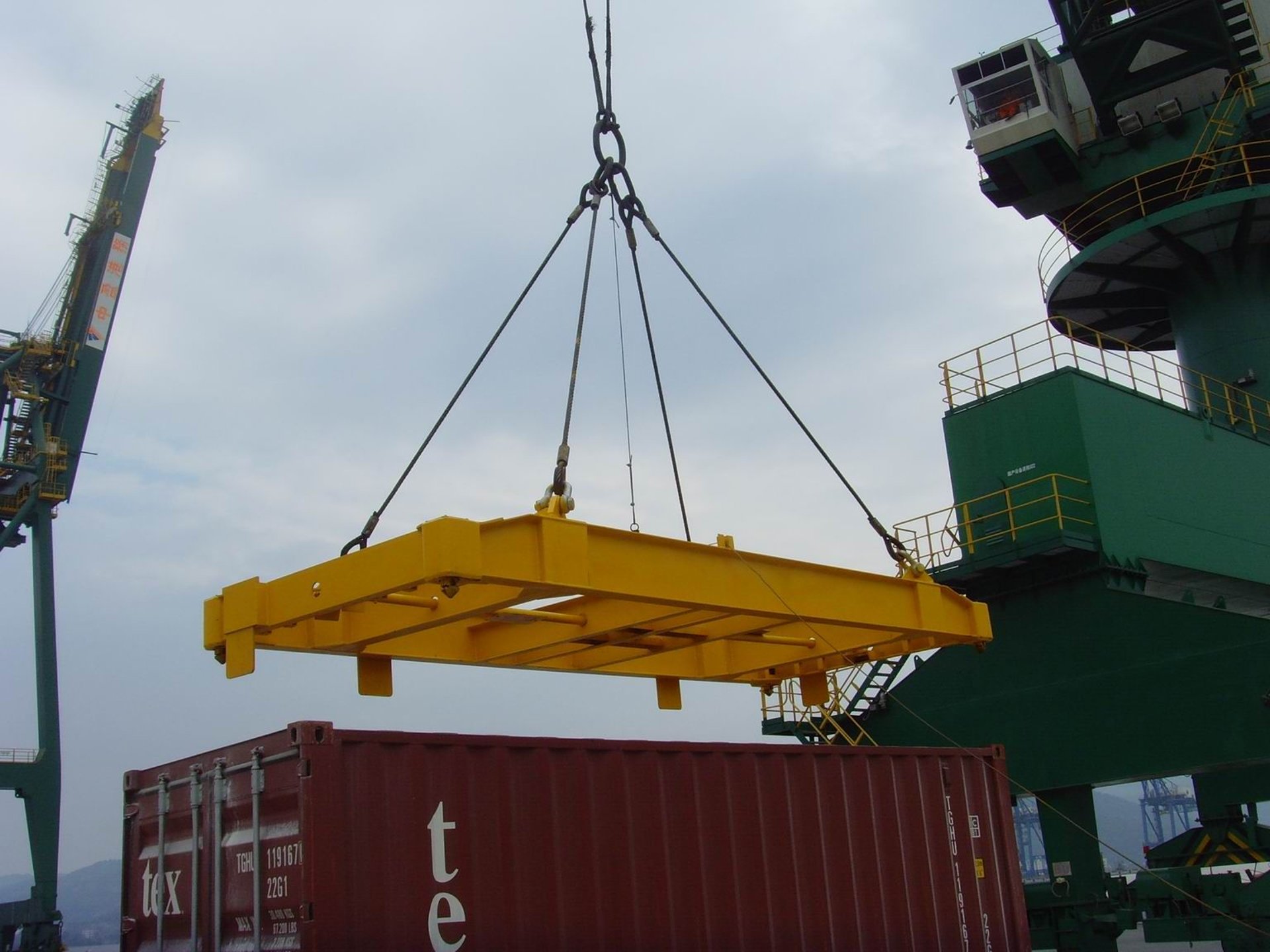

1. Container Ship-to-Shore Cranes: Powers spreader hydraulics, twistlock mechanisms, and positioning sensors for precise container handling in ports, supporting vertical travel up to 50 meters or more.

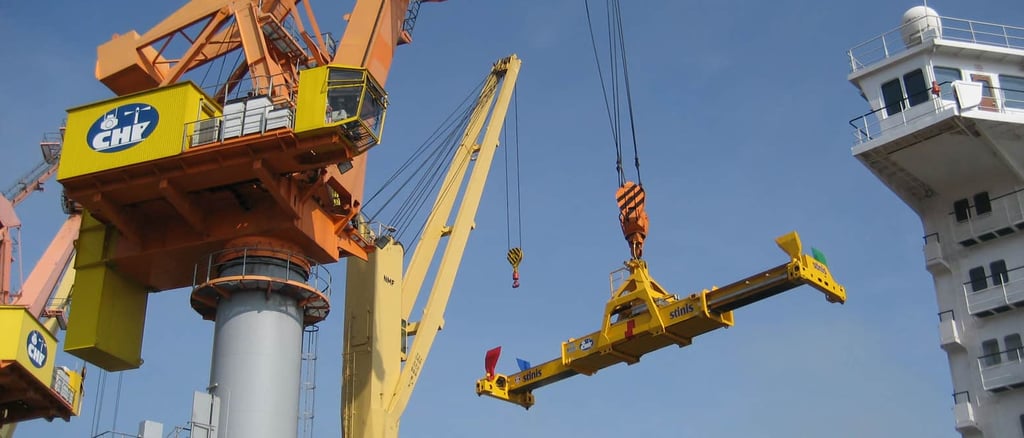

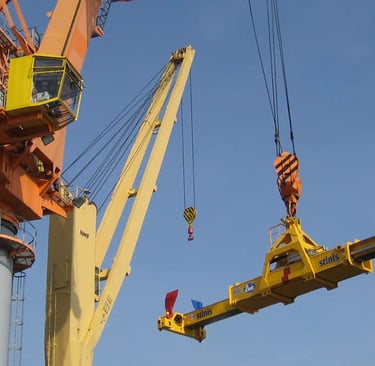

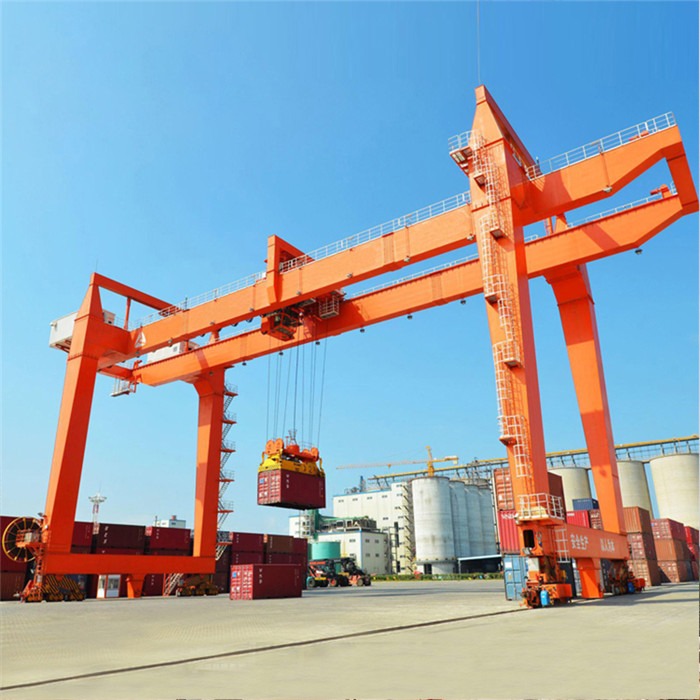

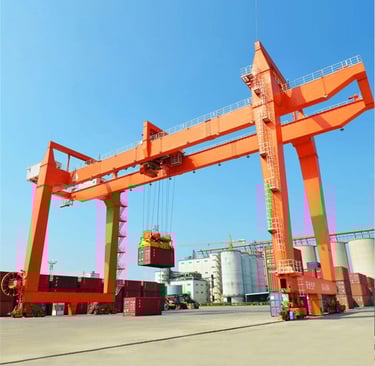

2. Mobile Harbor Cranes: Used in rubber-tired gantry cranes and mobile harbor cranes, it handles containers, bulk cargo, and project cargo in diverse weather conditions, from Arctic ports to tropical coastlines.

3. Steel Mill Ladle Cranes: Operates in high-temperature environments, withstanding radiant heat, scale, and industrial lubricants while lifting molten metal ladles.

4. Nuclear Material Handling: Provides absolute reliability for safety-critical lifting of radioactive materials, where failure is not an option.

5. Offshore Platform Supply Cranes: Endures salt spray, extreme weather, and dynamic vessel motion, ensuring reliable operation on oil platforms and supply vessels.

6. Heavy Industrial Manufacturing: Supports precision lifting of machinery, turbine components, and structural elements in large-scale manufacturing facilities.

Basket Operation System

The “basket” in crane operations is a cable management system that stores and deploys cables during lifting, much like a giant fishing reel. The SPREADERFLEX 3GSLTOE requires specific installation protocols to maximize performance:

• Counter-Clockwise Laying: The cable must be laid counter-clockwise to align with its internal lay direction, preventing internal stress and premature failure.

• Basket Dimensions: A minimum basket diameter of 30x cable diameter and a recommended basket height of 45x cable diameter ensure safe bending radii and prevent tangling. For a 40mm cable, this translates to a 1.2-meter diameter and 1.8-meter height.

• Design Considerations: The basket must account for hoisting height, speed, and wind loads to maintain cable integrity over millions of cycles.

Proper basket design is critical to prevent excessive bending stress, tangling, or uneven load distribution, ensuring the cable’s longevity and operational reliability.

Advantages of the SPREADERFLEX 3GSLTOE Cable

The SPREADERFLEX 3GSLTOE offers a suite of advantages that make it a top choice for crane operations.

High Flexibility and Durability

Engineered for continuous reeling and unreeling, the cable’s fine-stranded conductors and flexible aramid support allow it to endure frequent bending without wear. This durability translates to reduced maintenance costs and minimal downtime, critical for high-throughput operations like container ports.

Mechanical Stress Resistance

The aramid support element and safety factor of 5 ensure the cable can handle massive loads, dynamic forces, and unexpected stresses like wind-induced oscillations. By separating mechanical and electrical functions, it prevents conductor fatigue, ensuring long-term electrical reliability.

Environmental Resilience

The PUR outer sheath provides resistance to oil, UV, ozone, and moisture, making the cable ideal for harsh environments like ports and steel mills. Its ability to operate across a 130°C temperature range ensures reliability in extreme climates, from icy Arctic ports to sun-scorched desert terminals.

Integrated Design

By combining mechanical support and electrical conductors in a single sheath, the SPREADERFLEX simplifies installation and enhances reliability. Its high core count (up to 54 cores) supports complex control systems for modern cranes, accommodating hydraulics, sensors, and safety circuits in one cable.

Fail-Safe Engineering

The cable incorporates redundant insulation and independent support elements, ensuring that damage to one component doesn’t lead to catastrophic failure. This fail-safe design is critical for safety-critical applications like nuclear material handling or high-altitude container lifting.

South African Case Study: Port of Durban

Background

The Port of Durban, South Africa’s busiest port, handles over 2.5 million TEU (twenty-foot equivalent units) annually, making it a critical hub for regional trade. The port faces challenges like high humidity, frequent coastal storms, and intense container traffic, demanding reliable crane operations to maintain efficiency and safety.

Implementation of SPREADERFLEX 3GSLTOE

In 2024, the Port of Durban upgraded its ship-to-shore cranes with SPREADERFLEX 3GSLTOE cables to address recurring cable failures that caused costly downtime. The cables were installed in crane basket systems, designed to support high-speed container handling (160 m/min) and withstand the port’s humid, salty environment. Proper installation, including counter-clockwise laying and adherence to basket dimension requirements (30x diameter minimum), was critical to the project’s success.

Outcomes

The upgrade yielded significant results:

• 30% Reduction in Downtime: The SPREADERFLEX cables experienced fewer failures compared to previous systems, improving operational uptime.

• Enhanced Safety: The safety factor of 5 ensured reliable performance under heavy loads and windy conditions, critical for safe container handling.

• Improved Efficiency: The cables’ high flexibility and data transmission capabilities supported faster, more precise container movements, allowing the port to handle increased cargo volumes during peak seasons.

Lessons Learned

The project underscored the importance of proper basket system installation to maximize cable longevity. The cables’ environmental resistance proved invaluable in Durban’s humid, salty conditions, demonstrating their suitability for coastal ports. The success of this upgrade has prompted other South African ports, like Cape Town, to consider similar implementations.

Frequently Asked Questions (FAQs)

What makes the SPREADERFLEX 3GSLTOE different from standard industrial cables?

Unlike standard cables, the SPREADERFLEX integrates an aramid support element for tensile strength, fine-stranded conductors for flexibility, and specialized EPR insulation for temperature stability. These features make it ideal for dynamic lifting applications where standard cables would fail due to mechanical stress or fatigue.

Can this cable be used in extreme weather conditions?

Yes, the cable operates reliably from -50°C to +80°C and is resistant to oil, UV, ozone, and moisture, making it suitable for extreme climates, from Arctic ports to tropical industrial sites.

How does the basket system work with this cable?

The basket is a cable management system that stores and deploys the cable during lifting. The SPREADERFLEX requires counter-clockwise laying and a minimum basket diameter of 30x cable diameter to prevent stress and ensure longevity.

What types of cranes can use this cable?

The cable is versatile, supporting ship-to-shore cranes, mobile harbor cranes, steel mill ladle cranes, nuclear material handling cranes, offshore platform cranes, and industrial manufacturing cranes.

How does the safety factor of 5 impact operations?

The safety factor of 5 ensures the cable can handle five times the expected load, providing reliability under dynamic forces, wind, and unexpected stresses. This prevents catastrophic failures, enhancing safety in critical lifting operations.

Conclusion

The Type SPREADERFLEX 3GSLTOE Crane Spreader Cable is a pinnacle of engineering innovation, combining high flexibility, mechanical strength, and environmental resilience to meet the demands of modern crane operations. Its technical specifications—rated for 0.6/1 kV, with a safety factor of 5 and a 130°C temperature range—make it a reliable choice for applications from container ports to nuclear facilities. The cable’s integrated design, fail-safe engineering, and ability to support complex control systems ensure efficiency and safety in the most challenging environments.

The Port of Durban case study illustrates its real-world impact, reducing downtime by 30% and enhancing safety in a critical trade hub. As global industries strive for greater efficiency and reliability, cables like the SPREADERFLEX drive innovation in port operations and heavy lifting. For crane operators and engineers, investing in this specialized cable, paired with proper installation, is a step toward safer, more efficient operations. Explore the SPREADERFLEX 3GSLTOE for your crane systems and consult experts to ensure optimal performance in your next lifting project.
