How Do You Test Mining Cable Insulation Resistance On-Site? A Practical Guide for South African Mines

Mining cable insulation resistance testing stands as one of the most critical safety procedures in South Africa's mining industry. With the country's mining sector contributing approximately 8% to GDP and employing over 450,000 people, ensuring electrical safety in mines isn't just about compliance—it's about protecting lives and maintaining operational continuity.

The significance of proper insulation resistance testing cannot be overstated, particularly in South Africa's challenging mining environments. From the deep gold mines of the Witwatersrand to the platinum operations in the Bushveld Complex, mining cables face extreme conditions including high temperatures, moisture, dust, and mechanical stress. These cables form the electrical backbone of mining operations, powering everything from ventilation systems to extraction equipment.

Recent incidents in South African mines have highlighted the devastating consequences of electrical failures. The 2023 underground fire at a Free State gold mine, partly attributed to electrical cable faults, resulted in production losses exceeding R50 million. Such incidents underscore why regular insulation resistance testing isn't optional—it's essential for maintaining safe operations and regulatory compliance with South African National Standards (SANS) and National Regulator for Compulsory Specifications (NRCS) requirements.

Mining cables in South African operations must withstand unique challenges. The country's geology, ranging from the hard quartzite of the Witwatersrand to the complex ore bodies of the Bushveld, creates demanding operating conditions. Underground temperatures can exceed 55°C, humidity levels fluctuate dramatically, and cables face constant exposure to dust and potential water ingress. These factors make regular insulation resistance testing not just advisable but absolutely critical for safe mining operations.

What Is Cable Insulation Resistance?

Cable insulation resistance refers to the electrical resistance offered by the insulating material surrounding cable conductors. This resistance prevents electrical current from leaking between conductors or from conductors to earth, ensuring safe and efficient power transmission throughout mining operations.

The primary purpose of insulation resistance is to maintain electrical integrity by preventing unwanted current paths. In mining cables, the insulation typically consists of materials such as cross-linked polyethylene (XLPE), ethylene propylene rubber (EPR), or polyvinyl chloride (PVC), each selected based on the specific operating conditions and voltage requirements.

When insulation resistance decreases, it indicates deterioration in the cable's insulating properties. This deterioration can result from various factors including moisture ingress, thermal aging, mechanical damage, or chemical contamination. In South African mining environments, where cables face exposure to corrosive minerals and extreme temperature variations, insulation degradation can occur more rapidly than in conventional industrial settings.

The impact of insulation resistance on mining cable safety and longevity cannot be understated. Adequate insulation resistance ensures that electrical energy flows only through intended conductors, preventing dangerous situations such as ground faults, short circuits, and electrical fires. For mining operations, where power interruptions can trigger emergency procedures and endanger personnel, maintaining proper insulation resistance is fundamental to operational safety.

Why Insulation Resistance Testing Is Critical in Mining

Mining environments present unique electrical hazards that make insulation resistance testing absolutely essential. The combination of high-voltage equipment, wet conditions, and confined spaces creates a perfect storm for electrical accidents. In South African mines, where underground workings can extend several kilometres and involve thousands of metres of electrical cables, a single insulation failure can have cascading effects throughout the operation.

Preventing electrical hazards represents the primary reason for conducting regular insulation resistance testing. Electrocution risks in mining environments are significantly higher than in surface operations due to the presence of conductive surfaces, high humidity, and limited escape routes. The Mining Health and Safety Act (MHSA) of South Africa specifically mandates regular electrical testing to prevent such incidents.

Equipment damage prevention forms another crucial aspect of insulation resistance testing. Mining equipment represents substantial capital investments, with single pieces of machinery often costing millions of rand. When insulation fails, the resulting electrical faults can damage not only the affected cable but also connected equipment such as motors, transformers, and control systems. The cost of replacing damaged equipment, combined with production losses during downtime, can quickly escalate into tens of millions of rand.

Compliance with SANS and NRCS standards isn't just a legal requirement—it's a practical necessity for mining operations. SANS 1520-1, which governs mining cables in South Africa, specifies minimum insulation resistance values and testing procedures. The NRCS enforces these standards through regular inspections and audits. Non-compliance can result in substantial fines, operational shutdowns, and legal liability in case of accidents.

The economic impact of electrical failures in South African mining cannot be ignored. A recent study by the Chamber of Mines indicated that electrical-related incidents cost the industry approximately R2.3 billion annually in direct and indirect costs. This figure includes equipment damage, production losses, regulatory fines, and increased insurance premiums. Regular insulation resistance testing, costing a fraction of this amount, provides essential protection against these financial risks.

Step-by-Step Guide to Testing Mining Cable Insulation Resistance

Step 1: Preparation

Safety preparation forms the foundation of any successful insulation resistance testing procedure. Before commencing any testing, ensure complete disconnection of the cable from all power sources. This includes not only the main supply but also any backup power systems, control circuits, and emergency power supplies that might energise the cable during testing.

Personal protective equipment (PPE) selection requires careful consideration of the testing environment. In addition to standard electrical PPE including insulated gloves, safety glasses, and arc-rated clothing, mining environments may require additional protection such as respiratory equipment for dusty conditions and appropriate footwear for wet or uneven surfaces.

Equipment selection plays a crucial role in obtaining accurate and reliable test results. For mining cable applications, insulation resistance testers such as Megger MIT series, Fluke 1555, or Kyoritsu KEW 3125A provide the accuracy and durability required for harsh mining environments. These instruments typically offer test voltages ranging from 500V to 5000V and can measure resistance values up to 10TΩ.

Step 2: Setting Up the Test

Selecting appropriate test voltage depends on the cable's rated voltage and insulation type. For low-voltage mining cables (up to 1000V), a 500V test voltage is typically sufficient. Medium-voltage cables (1000V to 11kV) generally require 1000V to 2500V test voltages, while high-voltage cables may need up to 5000V. Always consult the cable manufacturer's specifications and relevant SANS standards for specific voltage requirements.

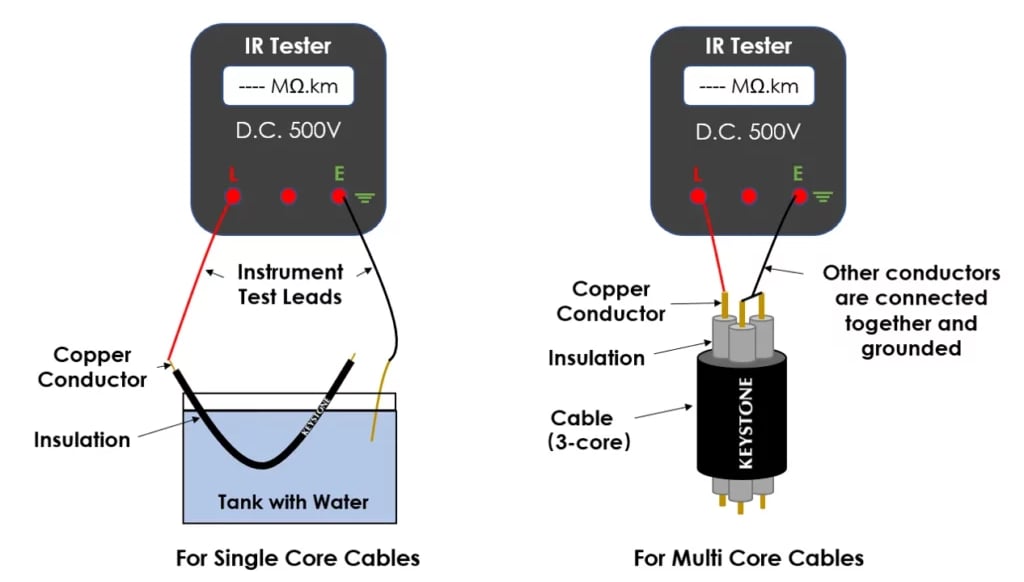

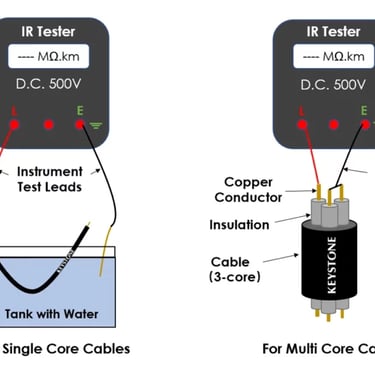

Test point identification requires systematic approach to ensure comprehensive coverage. Common test configurations include conductor-to-conductor, conductor-to-earth, and conductor-to-screen measurements. For three-phase cables, this typically involves six separate measurements to fully characterise the insulation system's condition.

Environmental considerations play a crucial role in test setup. Temperature affects insulation resistance significantly, with resistance typically decreasing by approximately 50% for every 10°C temperature increase. Humidity can also impact results, particularly for cables with hygroscopic insulation materials. Document environmental conditions during testing to enable proper interpretation of results.

Step 3: Conducting the Test

Test voltage application should follow a gradual approach to avoid damaging stressed insulation. Apply the test voltage slowly, allowing time for capacitive charging currents to decay before taking readings. For accurate measurements, maintain the test voltage for at least 60 seconds, as specified in SANS 1520-1.

Recording resistance readings requires attention to both initial and final values. The initial reading, taken immediately after voltage application, may be lower due to capacitive charging effects. The final reading, taken after the specified time period, provides the actual insulation resistance value. Some modern testers automatically calculate and display both values.

Multiple measurements enhance result reliability. Take at least three readings for each test configuration, ensuring consistency between measurements. Significant variations between readings may indicate unstable insulation conditions or external interference affecting the test.

Step 4: Evaluating Results

Acceptable resistance ranges for mining cables depend on various factors including cable type, voltage rating, and environmental conditions. As a general guideline, insulation resistance should exceed 1MΩ for most mining cable applications. However, SANS 1520-1 specifies more detailed requirements based on cable construction and operating voltage.

Temperature correction of results ensures accurate interpretation across different testing conditions. Most modern insulation resistance testers include automatic temperature compensation features. For manual calculations, use the formula: R20 = RT × 1.5^((T-20)/10), where R20 is the resistance at 20°C, RT is the measured resistance at temperature T.

Trend analysis provides valuable insights into insulation condition over time. A gradual decrease in insulation resistance values, even if above minimum limits, may indicate ongoing deterioration requiring investigation. Maintain detailed records of all test results to enable effective trend analysis.

Step 5: Post-Test Actions

Documentation requirements under South African mining regulations are comprehensive and specific. Test reports must include cable identification, test voltages used, environmental conditions, measured values, and technician certification. The Mine Health and Safety Act requires retention of electrical test records for specified periods.

Compliance verification involves comparing test results against applicable standards and regulations. This includes not only SANS requirements but also manufacturer specifications and any additional standards specified in the mine's electrical code of practice.

Corrective action recommendations depend on test results and observed trends. Options range from continued monitoring for borderline results to immediate cable replacement for failures. Consider factors such as cable age, operating conditions, and criticality of the circuit when making recommendations.

Tools and Equipment Used in Insulation Resistance Testing

Insulation Resistance Testers

Modern insulation resistance testers designed for mining applications incorporate features specifically addressing the challenges of underground testing. The Megger MIT1025 series, popular in South African mines, provides test voltages up to 10kV and includes features such as preset test voltages, automatic discharge, and data logging capabilities.

Fluke insulation testers, particularly the 1555 and 1550C models, offer robust construction suitable for harsh mining environments. These instruments include features such as measurement filtering to reduce noise interference, automatic temperature compensation, and compliance with international safety standards.

Kyoritsu instruments, including the KEW 3125A and KEW 3127, provide cost-effective solutions for routine insulation resistance testing. These testers offer basic functionality with reliable performance and are particularly suitable for smaller mining operations or maintenance contractors.

Additional Tools

Multimeters complement insulation resistance testers by providing additional measurement capabilities. Digital multimeters such as the Fluke 87V can measure voltage, current, and resistance, providing comprehensive electrical diagnostic capabilities for mining cable testing.

Infrared thermometers help identify potential problem areas through thermal imaging. Hot spots in cables or connections may indicate increased resistance due to insulation degradation or loose connections. The Fluke 62 MAX+ provides reliable non-contact temperature measurement in challenging mining environments.

Cable fault locators, such as the Megger TDR2000 series, can pinpoint the exact location of insulation failures in long cable runs. This capability is particularly valuable in mining applications where cables may extend several kilometres underground.

Common Issues Encountered During Testing

High Resistance Values

Unexpectedly high resistance values, while seemingly positive, can indicate problems with test setup or equipment. Common causes include poor electrical connections, inadequate test voltage, or interference from other electrical equipment. Verify all connections and ensure proper test voltage application before accepting high readings.

Dry weather conditions can artificially inflate insulation resistance readings, particularly for cables with hygroscopic insulation materials. Consider environmental conditions when interpreting results and establish baseline values for different weather conditions.

Improper cable storage can lead to surface contamination that affects test results. Ensure cables are clean and dry before testing, and consider using guard terminals to eliminate surface leakage effects.

Low Resistance Values

Low insulation resistance values indicate potential problems requiring immediate attention. Moisture ingress represents the most common cause, particularly in mining environments where cables face exposure to water from drilling operations, groundwater seepage, or condensation.

Physical damage to cable insulation can result from mechanical stress, chemical exposure, or thermal cycling. Inspect cables visually for signs of damage such as cracking, swelling, or discoloration before conducting electrical tests.

Manufacturing defects, while less common, can cause premature insulation failure. These defects may not be apparent during initial installation but can develop over time as cables age and face operational stresses.

Environmental Factors Affecting Testing

Temperature variations significantly impact insulation resistance measurements. In South African mines, underground temperatures can vary from 15°C near surface to over 50°C at depth. Establish temperature correction procedures to ensure consistent result interpretation.

Humidity levels affect both cable insulation and test equipment performance. High humidity can cause surface leakage effects that reduce apparent insulation resistance. Use appropriate test procedures and equipment designed for high-humidity environments.

Dust contamination in mining environments can create conductive paths that affect test results. Regular cleaning of cables and test equipment helps maintain measurement accuracy. Consider using compressed air or appropriate cleaning solvents to remove dust accumulation.

Frequently Asked Questions

What is the minimum acceptable insulation resistance for mining cables?

A: The minimum acceptable insulation resistance depends on cable type, voltage rating, and operating conditions. For most mining cable applications, insulation resistance should exceed 1MΩ. However, SANS 1520-1 provides specific requirements based on cable construction. For example, flexible trailing cables typically require minimum resistance values of 1MΩ per kilometre, while fixed installation cables may have different requirements.

How often should mining cable insulation resistance be tested?

A: Testing frequency depends on several factors including cable age, operating conditions, and regulatory requirements. The Mine Health and Safety Act requires electrical equipment testing at intervals specified in the mine's electrical code of practice. Generally, critical mining cables should be tested annually, with more frequent testing for cables in harsh environments or approaching end of life.

Can insulation resistance tests detect all cable faults?

A: Insulation resistance testing provides valuable information about cable condition but cannot detect all types of faults. This test is excellent for identifying insulation degradation, moisture ingress, and some types of physical damage. However, it cannot detect mechanical damage that doesn't affect insulation, conductor breaks, or overheating conditions. A comprehensive cable testing program should include multiple test methods.

What happens if my cable fails an insulation resistance test?

A: Cable failure during insulation resistance testing requires immediate investigation and corrective action. First, verify the test setup and repeat the measurement to confirm the failure. If confirmed, inspect the cable for visible damage, moisture, or contamination. Depending on the severity and cause of failure, options include cable drying, repair, or replacement.

How do environmental conditions in South Africa affect cable testing?

A: South African mining environments present unique challenges for cable testing. High temperatures reduce insulation resistance, while humidity can cause surface leakage effects. Dust contamination creates conductive paths that affect measurements. Establish testing procedures that account for these environmental factors and maintain consistent testing conditions when possible.

Case Study: Insulation Resistance Testing at a Witwatersrand Gold Mine

Background

The Mponeng Gold Mine, one of the world's deepest mines located in the Witwatersrand Basin, operates at depths exceeding 4,000 metres. The extreme conditions, including temperatures up to 60°C and high humidity levels, create challenging environments for electrical equipment. The mine utilises SANS 1520-1 compliant trailing cables for mobile equipment and fixed installation cables for permanent infrastructure.

The electrical system includes over 50 kilometres of various cable types, from 415V flexible trailing cables to 11kV distribution cables. Given the mine's depth and complexity, electrical reliability is crucial for both safety and operational continuity.

Problem

During routine maintenance in March 2024, technicians noticed intermittent earth leakage current alarms on a 3.3kV feeder cable supplying underground pumping stations. The alarms occurred primarily during periods of high humidity and increased water ingress from recent drilling operations. Initial visual inspection revealed no obvious damage to the cable or its terminations.

The affected cable, installed five years earlier, had previously passed all routine electrical tests. However, the increasing frequency of alarms suggested developing insulation problems that could lead to complete failure if not addressed promptly.

Testing Procedure

The maintenance team implemented a comprehensive insulation resistance testing program following SANS 1520-1 guidelines. Testing began with proper safety procedures, including complete isolation of the cable from all power sources and implementation of lockout/tagout procedures.

Equipment selection included a Megger MIT1025 insulation resistance tester capable of 5kV test voltage, appropriate for the 3.3kV cable rating. Environmental conditions were documented, including a temperature of 45°C and relative humidity of 85%.

Testing proceeded systematically, measuring resistance between each conductor and earth, and between conductors. The team applied 2.5kV test voltage (appropriate for 3.3kV cable) and recorded readings after 60 seconds as specified in SANS 1520-1.

Initial test results revealed concerning values. While the insulation resistance remained above the minimum 1MΩ requirement, readings were significantly lower than previous tests. Phase-to-earth measurements showed 15MΩ, 12MΩ, and 8MΩ respectively, compared to over 50MΩ in previous tests.

Outcome

The testing revealed a clear pattern of insulation degradation, with the lowest resistance values corresponding to the cable section closest to the water ingress area. Further investigation using thermal imaging identified elevated temperatures in cable joints, suggesting moisture had penetrated the insulation system.

Corrective actions included immediate cable drying using controlled heating and dehumidification. The affected cable section was isolated and subjected to extended drying procedures over 48 hours. Subsequent retesting showed improved but still concerning resistance values of 25MΩ, 30MΩ, and 22MΩ.

Given the critical nature of the pumping station supply and the uncertain long-term reliability of the dried cable, the maintenance team recommended cable replacement. The replacement was scheduled during the next planned maintenance outage to minimise operational impact.

Lessons Learned

This case study highlighted several important lessons for mining cable management. First, regular insulation resistance testing provides early warning of developing problems, allowing planned maintenance rather than emergency repairs. The trending analysis clearly showed degradation over time, even though individual readings remained above minimum requirements.

Second, environmental conditions significantly impact cable performance and test results. The high humidity and water ingress created conditions conducive to insulation degradation, emphasising the importance of environmental controls in mining operations.

Third, proactive cable replacement, while expensive, often proves more cost-effective than reactive maintenance. The planned replacement during scheduled maintenance minimised operational disruption and avoided potential emergency situations.

Conclusion

Testing mining cable insulation resistance on-site represents a critical safety and operational requirement for South African mines. The combination of challenging environmental conditions, high-voltage equipment, and stringent safety regulations makes regular testing essential rather than optional.

The key points covered in this guide emphasise the importance of systematic testing procedures, proper equipment selection, and comprehensive result interpretation. Understanding the relationship between environmental conditions and insulation resistance enables more effective maintenance planning and reduces the risk of unexpected failures.

Proper equipment selection, including quality insulation resistance testers and appropriate safety equipment, forms the foundation of successful testing programs. The investment in quality testing equipment pays dividends through improved safety, reduced downtime, and enhanced regulatory compliance.

The need for trained personnel cannot be overstated. Effective insulation resistance testing requires understanding of both electrical principles and mining-specific challenges. Ongoing training and certification ensure that testing personnel can identify potential problems and implement appropriate corrective actions.

Looking toward the future, technological advances are enhancing mining cable testing capabilities. Real-time monitoring systems, incorporating continuous insulation resistance monitoring, promise to revolutionise cable maintenance by providing constant surveillance of cable condition. These systems can detect developing problems immediately, enabling proactive maintenance and preventing failures.

South African mining operations stand to benefit significantly from enhanced testing procedures and emerging technologies. The integration of predictive maintenance techniques, combined with traditional testing methods, offers opportunities to improve safety, reduce costs, and enhance operational reliability.

The mining industry's commitment to safety and operational excellence demands nothing less than comprehensive, professional approaches to cable insulation resistance testing. By following the procedures outlined in this guide and maintaining focus on continuous improvement, South African mines can achieve the highest standards of electrical safety and operational reliability.
