How to Detect and Fix Mining Cable Insulation Breakdowns

Mining operations across South Africa's diverse geological landscape rely heavily on robust electrical infrastructure to power everything from underground conveyor systems to surface processing equipment. Cable insulation serves as the critical barrier that prevents electrical faults, protects workers from electrocution, and ensures continuous power delivery to vital mining equipment. In the harsh conditions of South African mines—from the gold fields of the Witwatersrand to the platinum mines of the Bushveld Complex—cable insulation faces unprecedented challenges.

The significance of maintaining proper cable insulation cannot be overstated in an industry where downtime costs millions of rand daily. Recent incidents in major South African mining operations have highlighted the devastating consequences of insulation failures, including production shutdowns, equipment damage, and most critically, worker safety incidents. With South Africa's mining sector contributing significantly to the national economy and employing hundreds of thousands of workers, understanding how to detect and address insulation breakdowns has become essential for mining engineers, maintenance teams, and safety personnel.

Underground mining environments present unique challenges for electrical systems. The combination of moisture, dust, mechanical stress, chemical exposure, and temperature variations creates conditions that accelerate insulation degradation. Surface mining operations, while less confined, face their own set of challenges including exposure to weather elements, vehicle traffic, and the constant movement of heavy machinery. These factors make proactive insulation management not just good practice, but a critical necessity for sustainable mining operations.

Causes of Insulation Breakdown in Mining Operations

Understanding the root causes of cable insulation failure is fundamental to developing effective prevention and repair strategies. In South African mining operations, several factors contribute to insulation breakdown, often working in combination to accelerate failure rates.

Mechanical damage represents the most common cause of insulation breakdown in mining environments. The constant movement of heavy mining equipment, conveyor systems, and transport vehicles creates numerous opportunities for cable damage. Direct impacts from falling rocks, equipment collisions, or excessive bending during cable installation can compromise insulation integrity. Underground operations are particularly vulnerable, as cables must navigate tight spaces while withstanding the mechanical stresses of rock movement and equipment vibration.

Moisture intrusion poses a severe threat to cable insulation, especially in underground mining where water seepage is common. South Africa's diverse mining environments—from the water-rich gold mines of the Free State to the relatively dry platinum operations in the North West Province—present varying moisture challenges. When water penetrates damaged cable sheaths or poorly constructed joints, it dramatically reduces the dielectric strength of insulation materials. This moisture can come from groundwater seepage, equipment washing procedures, or humid atmospheric conditions common in underground workings.

Chemical exposure accelerates insulation degradation in many South African mining operations. The presence of acids from mining processes, salt deposits, and various chemical reagents used in ore processing can attack cable insulation materials. Copper and gold mining operations often use cyanide-based processing solutions, while platinum mines utilise various flotation chemicals that can be highly corrosive to standard insulation materials.

Thermal stress from overloading and poor heat dissipation contributes significantly to insulation breakdown. Mining equipment often operates at maximum capacity, placing high electrical demands on cable systems. Poor ventilation in underground areas can trap heat around electrical installations, while surface operations may expose cables to extreme temperature variations typical of South African weather patterns.

Electrical breakdown occurs when voltage levels exceed the insulation's dielectric strength. This can happen due to power system faults, lightning strikes (particularly relevant for surface mining operations during South Africa's summer thunderstorm season), or switching transients from large mining equipment. The uniform electric field distribution becomes compromised when insulation develops weak spots, leading to localised breakdowns that can propagate throughout the cable system.

Consequences of Insulation Failure

The consequences of cable insulation breakdown in South African mining operations extend far beyond simple equipment replacement costs. Understanding these impacts helps justify investment in proper detection and prevention programmes.

Production losses represent the most immediate and quantifiable impact of insulation failures. When critical power cables fail, entire mining sections may be forced to shut down. In deep-level gold mines, where continuous ventilation and pumping are essential for worker safety, insulation failures can force complete evacuation of underground areas. Recent incidents at major mining operations have resulted in production losses exceeding R10 million per day, highlighting the critical nature of maintaining electrical infrastructure integrity.

Safety risks associated with insulation breakdown cannot be understated. Exposed conductors create electrocution hazards for mining personnel, while electrical faults can trigger fires in underground environments where escape routes are limited. The Mining Health and Safety Act requires mining companies to maintain electrical systems in safe working condition, making insulation integrity a legal as well as operational requirement.

Equipment damage often extends beyond the failed cable itself. Electrical faults can damage expensive mining equipment, including motors, control systems, and electronic instrumentation. In underground operations, replacing damaged equipment requires complex logistics and extended downtime, multiplying the overall impact of the initial insulation failure.

Environmental implications include potential ground contamination from electrical fires or chemical releases when insulation breakdown affects processing equipment. South African environmental regulations require mining companies to prevent contamination incidents, making proper cable maintenance an environmental compliance issue as well as an operational necessity.

Detection Techniques for Mining Cable Insulation

Early detection of insulation deterioration allows mining operations to schedule repairs during planned maintenance windows rather than experiencing unexpected failures during critical production periods. Several proven techniques are particularly effective in mining environments.

Visual inspection remains the most fundamental detection method, though it requires systematic implementation to be effective. Trained maintenance personnel should regularly examine cable installations for signs of physical damage, including cuts, abrasions, or compression marks. In underground operations, inspection schedules should align with routine maintenance visits to minimise disruption. Surface installations require particular attention to areas where cables cross vehicle paths or are exposed to weather elements.

Insulation resistance testing using megohm meters provides quantitative assessment of insulation condition. This technique measures the resistance between conductors and between conductors and ground, with decreasing values indicating insulation deterioration. Testing should be performed under controlled conditions, accounting for temperature and humidity variations that can affect readings. Baseline measurements taken during initial installation provide reference points for trending analysis.

Partial discharge testing can detect localised insulation weaknesses before they develop into complete failures. This technique identifies small electrical discharges within insulation that indicate developing problems. Advanced portable partial discharge detection equipment suitable for mining environments is now available, allowing testing without removing cables from service.

Thermal imaging surveys reveal hot spots that indicate increased resistance due to insulation breakdown or poor connections. Infrared cameras can detect temperature anomalies in cable installations, joints, and terminations. This technique is particularly valuable in underground operations where access for other testing methods may be limited.

Time domain reflectometry (TDR) testing can locate specific points of insulation degradation along cable runs. This technique sends electrical pulses down cables and analyses reflections to identify impedance changes that indicate insulation problems. TDR testing is especially valuable for long cable runs common in large mining operations.

Repair and Replacement Methods

When insulation breakdown is detected, mining operations must choose between repair and replacement based on the extent of damage, cable location, and operational requirements. The harsh conditions of mining environments often favour complete replacement over temporary repairs, but various options exist depending on specific circumstances.

Immediate temporary repairs may be necessary to restore power quickly during critical operations. Heat-shrinkable sleeves and cold-applied tapes can provide short-term insulation restoration for minor damage. However, these repairs should be considered temporary measures, with permanent solutions implemented during the next available maintenance window.

Joint reconstruction becomes necessary when insulation breakdown occurs at cable joints or terminations. This process requires complete removal of the failed joint, preparation of cable ends, and installation of new joint components. Proper joint construction is critical in mining environments, requiring attention to moisture sealing, stress relief, and mechanical protection.

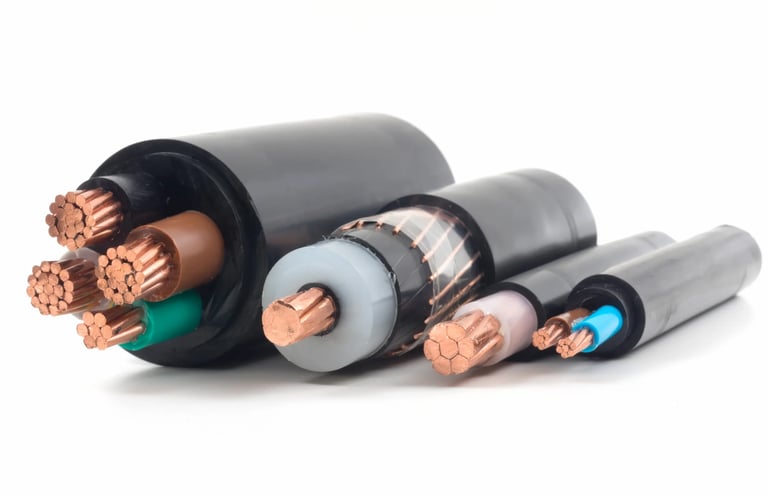

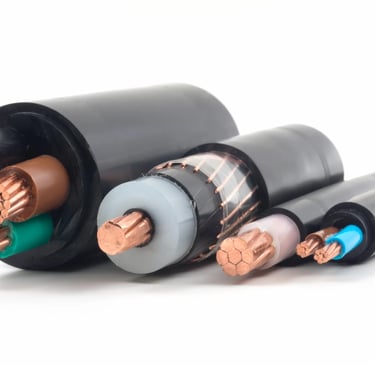

Cable replacement offers the most reliable long-term solution for significant insulation failures. When replacing cables in mining operations, consideration should be given to upgrading to cables with enhanced insulation systems designed for harsh environments. Modern mining cables often feature multiple insulation layers, improved moisture barriers, and enhanced mechanical protection.

Section replacement may be appropriate when insulation breakdown affects only a portion of a longer cable run. This approach requires careful planning to ensure new cable sections integrate properly with existing installations. Splicing techniques must meet the same standards as original installations, with particular attention to maintaining insulation integrity across joints.

Preventive Measures for South African Mining Operations

Prevention of insulation breakdown requires a comprehensive approach tailored to the specific challenges of South African mining environments. Recent developments in cable technology and maintenance practices offer improved protection against the conditions that cause insulation failure.

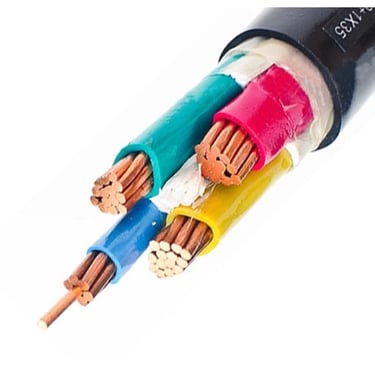

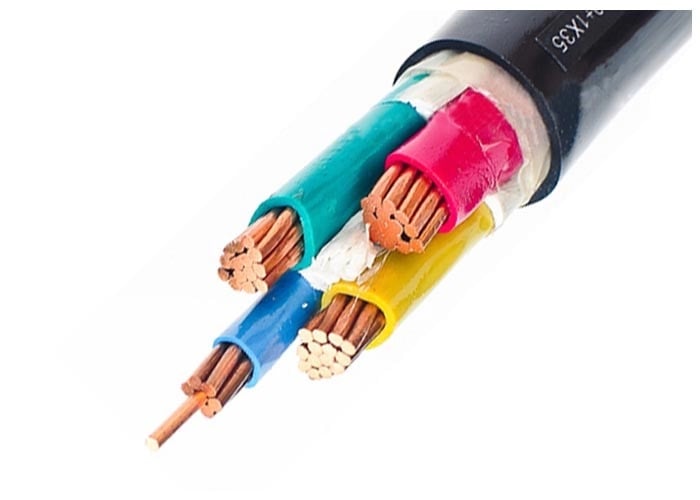

Proper cable selection forms the foundation of insulation breakdown prevention. Mining operations should specify cables designed specifically for mining applications, with insulation materials resistant to the expected environmental conditions. For underground operations, cables should feature enhanced moisture resistance and mechanical protection. Surface installations require UV-resistant insulation materials capable of withstanding South Africa's intense solar radiation.

Installation best practices significantly influence long-term insulation performance. Proper cable routing avoids areas of mechanical stress and provides adequate protection from environmental hazards. Cable supports should be designed to minimise mechanical stress during normal operations and equipment movement. Installation procedures should include careful handling to prevent damage during installation, proper bending radius maintenance, and thorough insulation testing before energising.

Environmental protection measures address the specific challenges of mining environments. Underground installations should include moisture barriers and drainage systems to prevent water accumulation around electrical equipment. Chemical-resistant cable sheaths and protective conduits provide additional protection in areas with chemical exposure. Surface installations require protection from weather elements, including proper cable burial depths and protective covers in high-traffic areas.

Regular maintenance programmes enable early detection and correction of developing problems before they result in insulation breakdown. Maintenance schedules should include regular visual inspections, periodic insulation testing, and systematic replacement of aging cable installations. Maintenance records should track insulation test results over time to identify trends that indicate developing problems.

Long-term Benefits of Strategic Cable Management

Investment in comprehensive cable insulation management programmes delivers significant long-term benefits for South African mining operations. These benefits extend beyond simple cost savings to include improved safety, regulatory compliance, and operational reliability.

Reduced unplanned downtime represents the most significant economic benefit of proactive insulation management. By detecting and addressing insulation problems before they cause failures, mining operations can schedule repairs during planned maintenance windows rather than experiencing unexpected production interruptions. This approach can reduce total downtime by 60-80% compared to reactive maintenance strategies.

Enhanced worker safety results from eliminating the electrical hazards associated with insulation breakdown. Proper insulation maintenance reduces the risk of electrocution, electrical fires, and equipment malfunctions that could endanger mining personnel. This improved safety record contributes to regulatory compliance and reduces insurance costs.

Extended equipment life occurs when electrical systems operate under proper conditions without the stress of insulation failures and resulting electrical faults. Mining equipment protected by proper cable insulation experiences fewer electrical failures and operates more reliably over extended periods.

Improved operational efficiency results from consistent power delivery and reduced maintenance requirements. When cable insulation performs reliably, mining operations can focus resources on production activities rather than emergency repairs and system restoration.

Frequently Asked Questions (FAQ)

Q: How often should mining cables be tested for insulation integrity? A: Testing frequency depends on the operating environment and cable age. Underground installations in harsh conditions should be tested every 6-12 months, while surface installations may require testing every 12-24 months. Critical circuits powering safety systems require more frequent testing.

Q: What insulation resistance values indicate potential problems? A: While specific values depend on cable voltage and type, insulation resistance below 1 megohm per kilovolt of operating voltage generally indicates deteriorating insulation requiring investigation.

Q: Can damaged cable insulation be permanently repaired in underground mining environments? A: While temporary repairs are possible, permanent repairs in underground environments typically require joint reconstruction or cable replacement due to the harsh conditions and safety requirements.

Q: What types of cables are best suited for South African mining conditions? A: Cables with EPR (Ethylene Propylene Rubber) or XLPE (Cross-Linked Polyethylene) insulation systems generally perform well in mining environments, offering good moisture resistance and mechanical durability.

Q: How do environmental factors specific to South African mines affect cable selection? A: The high altitude of many South African mines, intense UV radiation, and temperature extremes require cables with enhanced insulation systems and UV-resistant outer sheaths for surface applications.

Conclusion

Effective management of cable insulation in South African mining operations requires a comprehensive approach combining proper cable selection, installation best practices, regular monitoring, and prompt repair of detected problems. The harsh conditions prevalent in mining environments—from the deep underground workings of gold mines to the expansive surface operations of iron ore and coal mines—demand particular attention to insulation integrity.

The economic impact of insulation breakdown extends far beyond cable replacement costs, encompassing production losses, equipment damage, and safety incidents that can affect mining operations for extended periods. However, with proper detection techniques, systematic maintenance programmes, and strategic investment in quality cable systems, these impacts can be minimised while ensuring safe and reliable electrical power delivery.

As South African mining operations continue to modernise and expand, the importance of reliable electrical infrastructure becomes increasingly critical. Mining companies that invest in comprehensive cable management programmes will benefit from improved safety, reduced downtime, and enhanced operational reliability. The techniques and principles outlined in this guide provide a framework for developing effective cable insulation management strategies tailored to the specific requirements of South African mining operations.

The mining industry's continued contribution to South Africa's economy depends on maintaining safe, efficient operations supported by reliable electrical infrastructure. Proper cable insulation management represents a fundamental component of this infrastructure, deserving the attention and resources necessary to ensure long-term success in one of the world's most challenging operating environments.
