How to Handle Prolonged Frequent Flexing of Mining Cables Without Failure?

In South Africa's demanding mining environment, cable reliability isn't just about operational efficiency—it's about survival. With cable theft costing the mining sector R7.3 billion in 2024 and thousands of tonnes of precious metals depending on continuous power supply, every cable failure represents significant financial loss and safety risk.

Mining cables face unique challenges in underground and open-pit operations. Mobile equipment like draglines, shovels, and shuttle cars subject cables to millions of flex cycles throughout their service life. Unlike stationary installations, mining cables must endure constant bending, twisting, and stretching whilst maintaining electrical integrity in harsh environments filled with dust, moisture, and corrosive chemicals.

The consequence of cable failure extends far beyond replacement costs. When a trailing cable fails on a longwall shearer or a festoon cable snaps on a conveyor system, entire sections of the mine can shut down. In South Africa's platinum belt, where margins are already tight, such disruptions can spell the difference between profit and loss.

This comprehensive guide explores proven strategies for handling prolonged frequent flexing of mining cables without failure, drawing from industry best practices and real-world South African mining experiences.

The Nature of Cable Flexing in Mining Operations

Cable flexing refers to the repeated bending and straightening motion that occurs when cables are subjected to dynamic mechanical stress. In mining operations, this phenomenon is omnipresent and unavoidable.

Understanding Flex Mechanics

When a cable bends, the conductors on the outer radius of the bend experience tensile stress (stretching), whilst those on the inner radius face compressive stress. As documented in technical literature, the maximum stress in a flexing cable is given by the formula: σ = Ec/R, where E represents the modulus of elasticity, c is the maximum distance from the neutral axis, and R is the bend radius.

This mathematical relationship reveals a crucial insight: reducing cable diameter (c) or increasing bend radius (R) dramatically reduces stress and extends flex life. Copper conductors, with their relatively poor resistance to repeated stress, will eventually fracture even when stress remains below the ultimate yield point of 15 percent elongation.

Mining Equipment Flex Scenarios

Different mining applications subject cables to distinct flexing patterns:

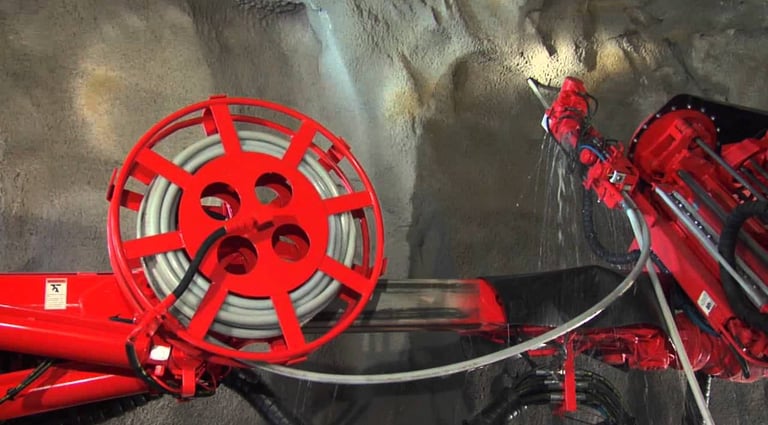

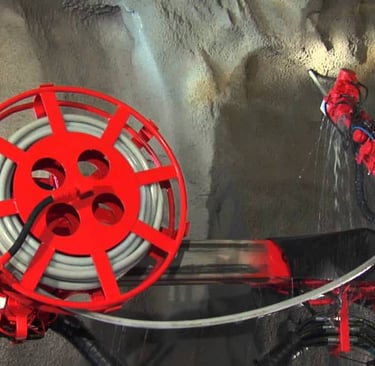

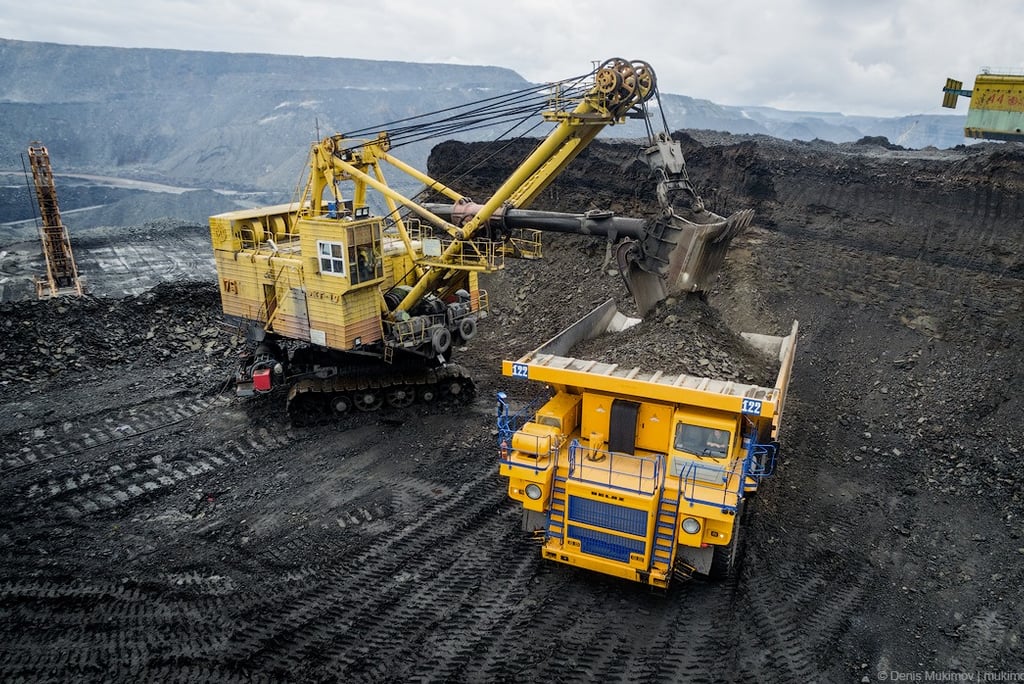

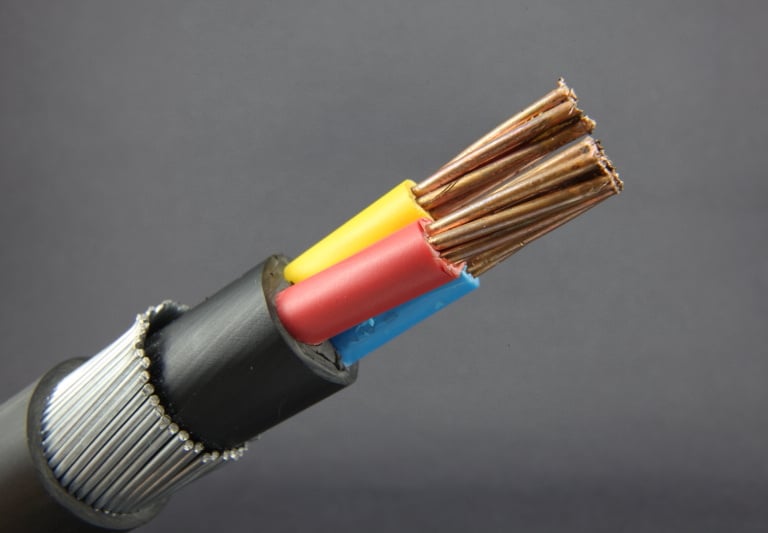

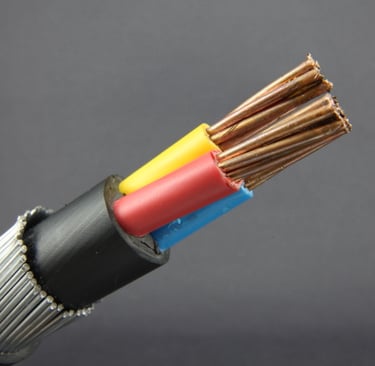

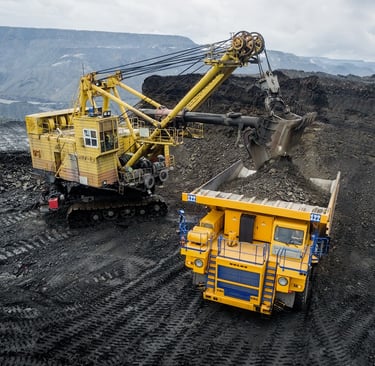

• Draglines and Electric Rope Shovels: Power cables must flex continuously as the boom moves through digging cycles. These cables experience rolling motion combined with occasional torsional stress when the machine rotates.

• Longwall Equipment: Shearer cables endure millions of back-and-forth cycles as the cutting head traverses the coal face. The cable must maintain electrical continuity whilst being dragged through debris and water.

• Shuttle Cars and Personnel Carriers: Trailing cables experience random flexing patterns as vehicles navigate underground roadways. Sharp turns and uneven surfaces create unpredictable stress concentrations.

• Conveyor Systems: Festoon cables supporting moving conveyors undergo regular tick-tock motion, with cables swinging from support trolleys as the belt advances.

Progressive Damage Mechanisms

Repeated flexing causes cumulative damage through several mechanisms. Initially, individual copper strands begin to work-harden, becoming increasingly brittle with each flex cycle. As strands fracture, the remaining conductors carry higher current loads, generating additional heat that accelerates insulation degradation.

Shield wires, positioned furthest from the cable's neutral axis, typically fail first due to maximum stress exposure. When shielding integrity is compromised, the cable becomes susceptible to electromagnetic interference, potentially causing equipment malfunctions that are difficult to diagnose.

Choosing the Right High-Flex Mining Cable

Selecting appropriate cables for flexing applications requires understanding both mechanical and electrical performance requirements. Not all "flexible" cables are suitable for continuous-flex mining applications.

Essential High-Flex Cable Features

High-quality flex cables incorporate specific design elements that distinguish them from standard industrial cables:

Fine-Stranded Conductors:

Contrary to common belief, extremely fine stranding isn't always optimal for high-flex applications. Research indicates that medium to fine strand diameters, combined with optimised lay length and direction, provide superior flex life. The conductor design must balance flexibility with resistance to kinking under high-duty cycles.

Specialised Insulation:

Core insulation must be adhesion-resistant to prevent conductors from sticking together during flexing. High-pressure extruded materials like polychloroprene (PC) or thermoplastic elastomer (TPE) offer excellent dielectric strength whilst maintaining flexibility. Wall thickness should be minimised without compromising voltage ratings—thinner insulation reduces overall cable diameter and stress levels.

Optimised Cable Lay:

The arrangement of conductors within the cable core significantly impacts flex performance. Conductors are bundled into groups and cabled in a single layer around a strain-relieving centre core. This design balances pulling and compressing forces during bending whilst cancelling torsional forces that could cause cable rotation.

Superior Shielding:
Standard braided shields often fail prematurely in flex applications. High-flex cables employ double-served wire shields optimised for both flex life and shielding effectiveness. The shield must be isolated from conductors and outer jacket using low-friction materials to reduce heat generation.

South African Standards Compliance

Mining cables in South Africa must comply with SANS 1520-1 standards, which specify requirements for flexible cables in mining applications. These standards address:

• Conductor specifications and stranding requirements

• Insulation voltage ratings and dielectric strength

• Flame retardancy and smoke emission characteristics

• Mechanical properties including bend radius and pull strength

• Environmental resistance to oils, acids, and UV exposure

Cable Type Selection by Application

Different mining applications require specific cable configurations:

Festoon Cables: Used in conveyor and material handling systems, these cables must withstand regular swinging motion whilst supporting their own weight. Multi-conductor designs with integrated ground wires ensure reliable earth continuity.

Trailing Cables: Essential for mobile equipment like shuttle cars and load-haul-dump (LHD) vehicles. These cables require exceptional abrasion resistance and the ability to be dragged across rough surfaces without damage.

Reeling Cables: Designed for cable reels on draglines and shovels, these cables must handle both flexing and the mechanical stress of constant winding and unwinding. Specialised constructions prevent conductor migration and maintain round cable geometry.

Installation Best Practices to Prevent Flex Fatigue

Proper installation is critical for achieving maximum cable service life. Even the highest-quality cable will fail prematurely if installation guidelines are ignored.

Bend Radius Requirements

The minimum bend radius represents the smallest curvature a cable can withstand without immediate damage. However, for maximum flex life, cables should operate at bend radii significantly larger than the minimum specification. As a general rule, dynamic bend radii should be at least 10-15 times the cable diameter for continuous-flex applications.

Installing cables with insufficient bend radius creates stress concentrations that dramatically reduce service life. Sharp corners, tight cable clamps, and inadequate pulleys can create localised stress points where failures inevitably occur.

Support System Design

Proper cable support prevents excessive sag and controls cable movement during flexing:

Roller Systems:

For long cable runs, properly sized rollers prevent cable abrasion whilst allowing smooth movement. Roller diameter should be sufficient to maintain minimum bend radius requirements.

Festoon Systems:

Trolley-mounted festoon systems must be designed to handle cable weight whilst allowing free movement. Inadequate trolley spacing can cause excessive cable sag and stress.

Cable Reels:

Drum diameter must accommodate the cable's minimum bend radius. Multi-layer winding requires careful attention to prevent crushing forces between cable layers.

Eliminating Torsional Stress

Torsional stress occurs when cables are subjected to twisting forces during installation or operation. This stress can cause conductor migration, shield damage, and premature failure. Prevention strategies include:

• Using swivel connections where cable rotation is unavoidable

• Maintaining consistent cable orientation throughout the installation

• Avoiding installation methods that introduce twist during cable pulling

Cable Securing and Strain Relief

Proper strain relief prevents mechanical stress from being transmitted to electrical connections. Industrial-grade cable glands and support grips distribute pulling forces across the cable jacket rather than concentrating loads at termination points.

Unsupported cables are particularly vulnerable to whip-lash injuries from fast-moving equipment. Rigid support near connection points provides essential protection against sudden direction changes and mechanical shock.

Environmental and Mechanical Protection

South African mining environments present multiple challenges beyond simple mechanical flexing. Cables must withstand moisture, dust, chemicals, temperature extremes, and potential flame exposure whilst maintaining electrical integrity.

Moisture and Chemical Resistance

Underground mining environments often feature high humidity and exposure to various chemicals including cutting fluids, hydraulic oils, and cleaning solvents. Cable jackets must resist degradation from these substances whilst maintaining flexibility at temperature extremes.

Polyurethane jackets offer excellent resistance to most industrial fluids whilst providing superior abrasion resistance. These materials maintain flexibility across wide temperature ranges and offer good flame retardancy characteristics required by mining regulations.

Dust and Particle Protection

Fine dust and abrasive particles can work their way into cable structures, causing internal abrasion and eventual failure. Cable designs must minimise ingress points whilst maintaining flexibility. Pressure-extruded jackets with gusset-filling construction provide superior sealing compared to tape-wrapped alternatives.

Flame and Heat Resistance

Mining cables must meet strict flame retardancy requirements to minimise fire propagation risk. Low-smoke, halogen-free compounds are increasingly specified to reduce toxic gas emission during fire events.

Heat resistance is particularly important in deep mining operations where ambient temperatures can exceed 40°C. Cable insulation and jacketing materials must maintain their properties across the full operating temperature range.

Mechanical Protection Strategies

Additional protection may be required in high-risk areas:

Protective Conduits:

Flexible conduits or spiral wrap can protect cables from sharp edges and excessive abrasion. These systems must be carefully designed to avoid restricting cable movement or creating new stress concentration points.

Sacrificial Jackets:

In extremely abrasive environments, removable outer jackets can protect the primary cable structure. These jackets can be replaced periodically without affecting the electrical cable.

Cable Guides and Channels:

Properly designed cable guides ensure controlled movement whilst protecting against damage from mobile equipment or falling objects.

Routine Maintenance and Monitoring

Proactive maintenance programs are essential for maximising cable service life and preventing unexpected failures that can shut down mining operations.

Early Warning Signs

Experienced maintenance personnel can identify potential cable problems before complete failure occurs:

Visual Indicators: Cracks in cable jackets, bulges indicating conductor migration, and areas of discolouration suggesting overheating all warrant immediate attention. Regular visual inspections should focus on high-stress areas where flexing occurs.

Electrical Symptoms: Increasing cable resistance, intermittent connectivity, and electromagnetic interference can indicate developing problems. Regular electrical testing provides objective performance data.

Physical Changes: Cables that have become noticeably stiffer or show permanent deformation may have internal damage that compromises flex performance.

Inspection Protocols

Systematic inspection schedules should be established based on cable criticality and operating conditions:

Daily Inspections: Critical production cables should receive daily visual checks focusing on areas exposed to mechanical damage.

Weekly Testing: Electrical testing including insulation resistance measurement and continuity checks can identify developing problems.

Monthly Surveys: Comprehensive inspections using thermal imaging and other diagnostic tools can identify problems not visible during routine checks.

Predictive Maintenance Tools

Modern diagnostic equipment enables condition-based maintenance strategies:

Thermal Imaging: Infrared cameras can identify hot spots indicating high resistance connections or overloaded conductors. Regular thermal surveys can identify problems before they cause failures.

Insulation Resistance Testing: Megohm testing monitors insulation condition and can identify moisture ingress or insulation degradation before breakdown occurs.

Time Domain Reflectometry (TDR): Advanced testing equipment can locate specific fault locations within cables, enabling targeted repairs rather than complete replacement.

Preventive Replacement Programs

Establishing replacement schedules based on service history and operating conditions prevents unexpected failures. Critical cables may require replacement at predetermined intervals regardless of apparent condition, whilst less critical applications can use condition-based replacement strategies.

Case Study: How One South African Mine Reduced Cable Failure

Kumba Iron Ore's Sishen mine faced significant challenges with trailing cable failures on their mobile equipment fleet. The operation was experiencing cable failures every 3-4 months, resulting in costly downtime and safety concerns.

The Problem

The mine's shuttle cars and LHD vehicles were equipped with standard industrial cables that weren't designed for the severe flexing conditions encountered in iron ore operations. The combination of dusty conditions, sharp rocks, and frequent direction changes created an extremely challenging environment for the trailing cables.

Analysis revealed several contributing factors:

• Cables were being installed with insufficient bend radius at connection points

• Standard copper conductor construction wasn't suitable for continuous flexing

• Cable support systems allowed excessive sag and cable whipping

• Maintenance procedures focused on reactive replacement rather than condition monitoring

The Solution

Working with local cable suppliers, the mine implemented a comprehensive cable management program:

Cable Specification Upgrade:

Standard cables were replaced with SANS 1520-1 compliant high-flex trailing cables featuring:

• Fine-stranded copper conductors with optimised lay design

• Specialised elastomer insulation resistant to crushing and abrasion

• Double-served shield construction for improved EMI protection

• Polyurethane outer jacket resistant to oils, acids, and mechanical damage

Installation Improvements:

All cable installations were redesigned to eliminate stress concentration points:

• Minimum bend radius requirements were strictly enforced

• Cable support systems were upgraded to prevent excessive sag

• Strain relief systems were improved at all termination points

• Cable routing was optimised to minimise exposure to mobile equipment damage

Maintenance Program Enhancement:

A proactive maintenance program was established:

• Daily visual inspections by equipment operators

• Weekly electrical testing of critical cables

• Monthly thermal imaging surveys to identify developing problems

• Quarterly comprehensive cable condition assessments

The Results

The comprehensive approach delivered impressive improvements:

• Cable service life increased by 40%, with some installations exceeding 12 months of service

• Unplanned downtime due to cable failures decreased by 65%

• Maintenance costs reduced despite higher initial cable costs

• Safety incidents related to cable failures were eliminated

The success at Sishen demonstrates that proper cable selection, installation, and maintenance can dramatically improve reliability even in challenging mining environments.

Future Trends: Smart Cable Monitoring for Flexing Applications

The mining industry is increasingly embracing digital technologies to improve operational efficiency and equipment reliability. Cable monitoring represents an emerging application area with significant potential.

Sensor Integration

Advanced cable designs are beginning to incorporate sensing technologies directly into the cable structure. Embedded sensors can monitor:

• Cable temperature along its entire length

• Mechanical stress and strain levels

• Insulation resistance and electrical performance

• Physical position and movement patterns

AI-Based Predictive Maintenance

Machine learning algorithms can analyse sensor data to predict cable failures before they occur. By learning from historical failure patterns and operating conditions, these systems can:

• Identify optimal replacement timing to minimise costs

• Predict which cables are most likely to fail next

• Optimise maintenance schedules based on actual condition rather than arbitrary time intervals

• Provide early warning of developing problems

Digital Cable Management Systems

Comprehensive cable management platforms can track every cable in a mining operation, maintaining records of:

• Installation dates and specifications

• Maintenance history and test results

• Operating conditions and performance data

• Failure analysis and root cause information

These systems enable data-driven decision-making and continuous improvement of cable management practices.

Integration with Mine Automation

As mining operations become increasingly automated, cable monitoring can be integrated with broader control systems to:

• Automatically adjust equipment operation to reduce cable stress

• Implement protective actions when cable problems are detected

• Coordinate maintenance activities with production schedules

• Provide real-time status information to mine control centres

Frequently Asked Questions

Q: How often should mining cables be inspected for flex fatigue?

A: Critical production cables should receive daily visual inspections, with more comprehensive electrical and thermal testing conducted weekly or monthly depending on the application. High-risk installations may require continuous monitoring.

Q: What's the difference between minimum bend radius and recommended operating radius?

A: Minimum bend radius represents the smallest curvature a cable can withstand without immediate damage. For maximum service life, operating radius should be 2-3 times the minimum specification, particularly in continuous-flex applications.

Q: Can damaged cables be repaired, or must they be completely replaced?

A: Minor jacket damage can often be repaired using appropriate techniques and materials. However, conductor or shield damage typically requires complete replacement, as repairs in flex zones rarely achieve the reliability of the original cable.

Q: How do South African mining standards compare to international specifications?

A: SANS 1520-1 standards are aligned with international best practices and often exceed minimum international requirements. South African standards place particular emphasis on flame retardancy and environmental resistance due to local mining conditions.

Q: What should be considered when upgrading from standard to high-flex cables?

A: Consider not only the cable specification but also installation methods, support systems, and maintenance procedures. High-flex cables may require different handling techniques and termination methods to achieve their full performance potential.

Q: How can cable theft be prevented whilst maintaining operational flexibility?

A: With cable theft costing R7.3 billion annually and Transnet exploring satellite technology for monitoring, mines are implementing various strategies including GPS tracking systems, alarm sensors, and alternative cable routing through secured areas. Some operations use less valuable conductor materials in exposed locations whilst maintaining copper in protected areas.

Conclusion

Managing prolonged frequent flexing of mining cables without failure requires a comprehensive approach encompassing proper cable selection, expert installation, and proactive maintenance. As South Africa's mining industry faces increasing pressure from illegal mining operations costing R60 billion in 2024 and infrastructure challenges, reliable cable systems become even more critical for operational success.

The key principles for success include understanding the mechanical stresses involved in cable flexing, selecting cables specifically designed for high-flex applications, implementing installation best practices that minimise stress concentrations, and establishing maintenance programs that identify problems before they cause failures.

Investment in proper cable management pays dividends through reduced downtime, improved safety, and lower total cost of ownership. As the industry continues to evolve with automation and digital monitoring technologies, early adopters of advanced cable management practices will gain significant competitive advantages.

The future of mining cable management lies in smart monitoring systems that provide real-time condition data and predictive maintenance capabilities. However, success with these advanced technologies still depends on solid fundamentals: proper cable selection, expert installation, and commitment to proactive maintenance practices.

For South African mining operations seeking to improve cable reliability, the path forward involves not just better cables, but better cable management throughout the entire lifecycle from specification through disposal. With mining operations becoming increasingly automated and dependent on electrical systems, the stakes for cable reliability have never been higher.
