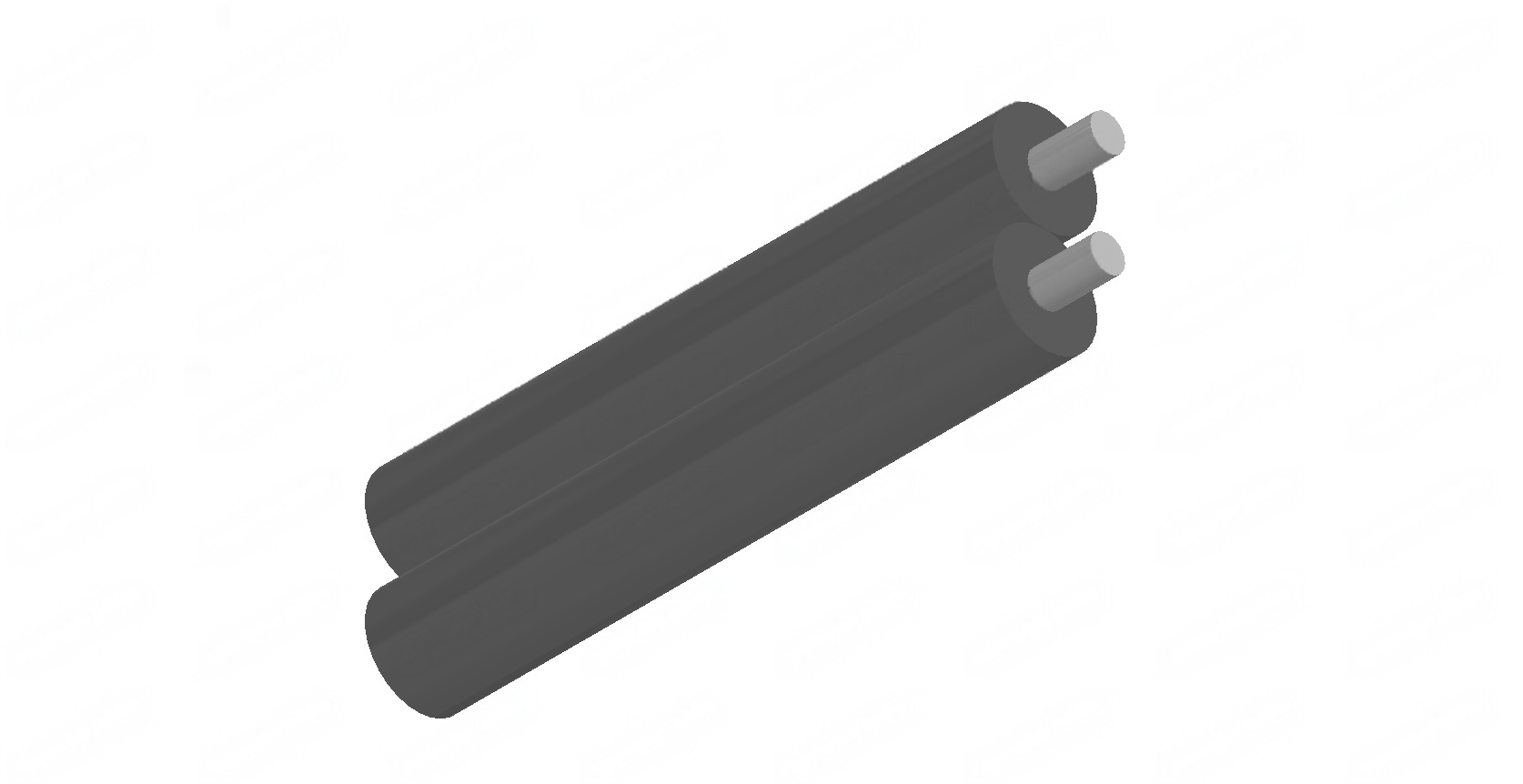

I-V2Y POF Cord
Application
These flexible and robust cables are used in mechanical engineering, both in mobile and fixed applications, suitable for applications where trouble-free data transmission in necessary under heavyduty conditions.
Standards
DIN VDE 0888
IEC 60794

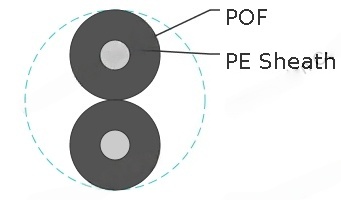

Construction
Fibre Type | POF 980/1000. |
Sheath | PE. |
Technical Data
Operating Temperatures | -20℃~+80℃ |
Minimum Bending Radius | 25mm |
Dimensions and Weight
CONSTRUCTION | CORE/CLADDING DIAMETER | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|
NO. OF POF ELEMENT | ΜM | MM | KG/KM |
1 | 980/1000 | 2.2 | 4 |
2 | 980/1000 | 2.2×4.4 | 8 |
