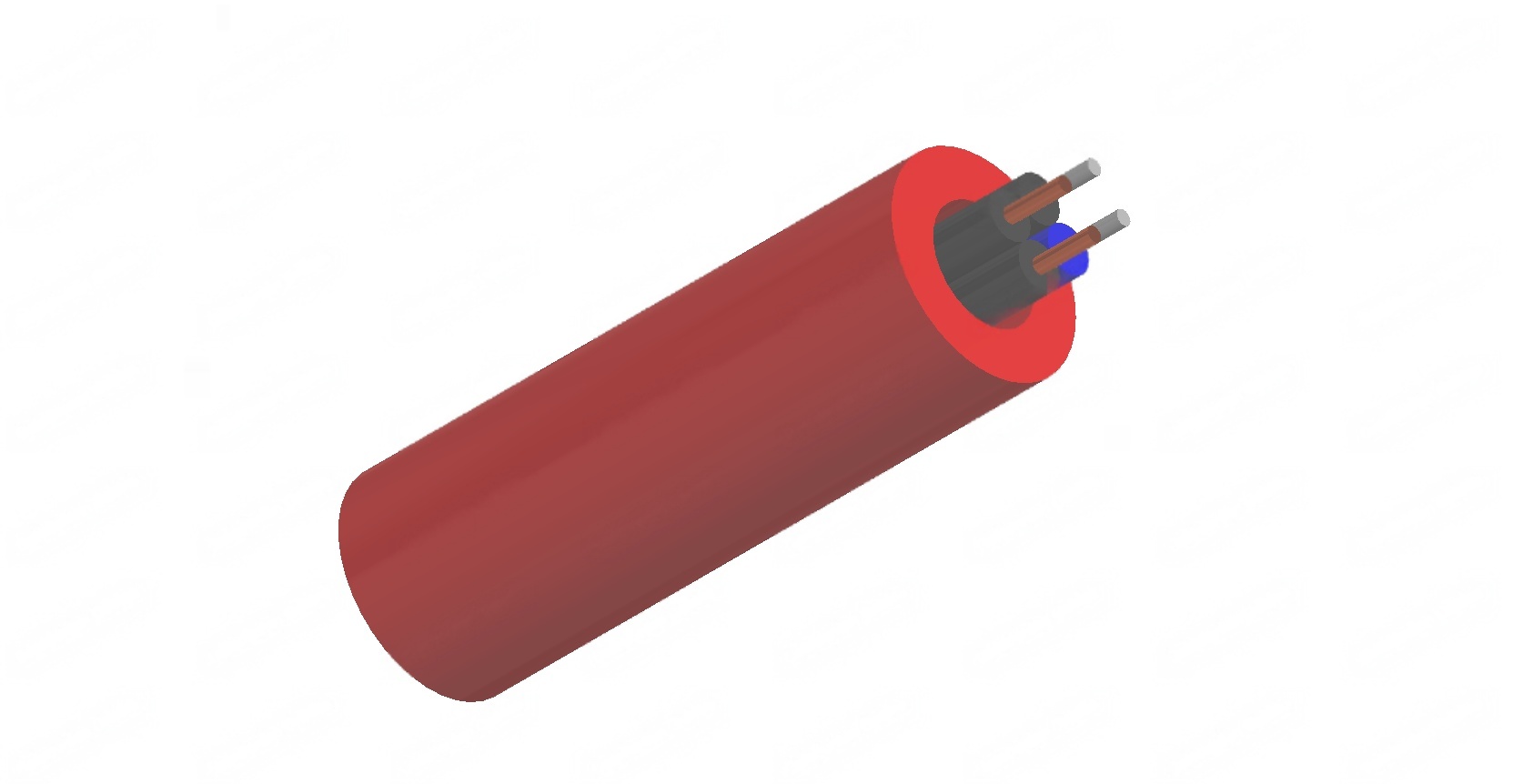

I-V2Y(ZN)11Y/I-V2Y(ZN)2Y POF Breakout Cable
Application
These flexible and robust cables are used in mechanical engineering, both in mobile and fixed applications, suitable for applications where trouble-free data transmission in necessary under heavyduty conditions.
Standards
DIN VDE 0888
IEC 60794
Construction
Fibre Type | POF 980/1000. |
Strain Relief | Aramid yarns. |
Break-out Unit Sheath | PE. |
Outer Sheath | PE/PUR. |
Optional Element: | Copper element or dummy element. |
Technical Data
Operating Temperatures | -20℃~+80℃ |
Minimum Bending Radius | 30~95mm depend on cable construction |
Oil Resistant | Yes |
Dimensions and Weight
CONSTRUCTION | COPPER ELEMENT | CORE/CLADDING | NOMINAL OVERALL | NOMINAL WEIGHT |
|---|---|---|---|---|
NO. OF POF ELEMENT | NO. OF CORES×MM2 | ΜM | MM | KG/KM |
1 | - | 980/1000 | 5.8 | 30 |
2 | - | 980/1000 | 6.0 | 36 |
4 | - | 980/1000 | 7.1 | 65 |
2 | 2×1 | 980/1000 | 7.8 | 60 |
2 | 3×1.5 | 980/1000 | 11.0 | 132 |
4 | 19×1 | 980/1000 | 16.0 | 440 |
