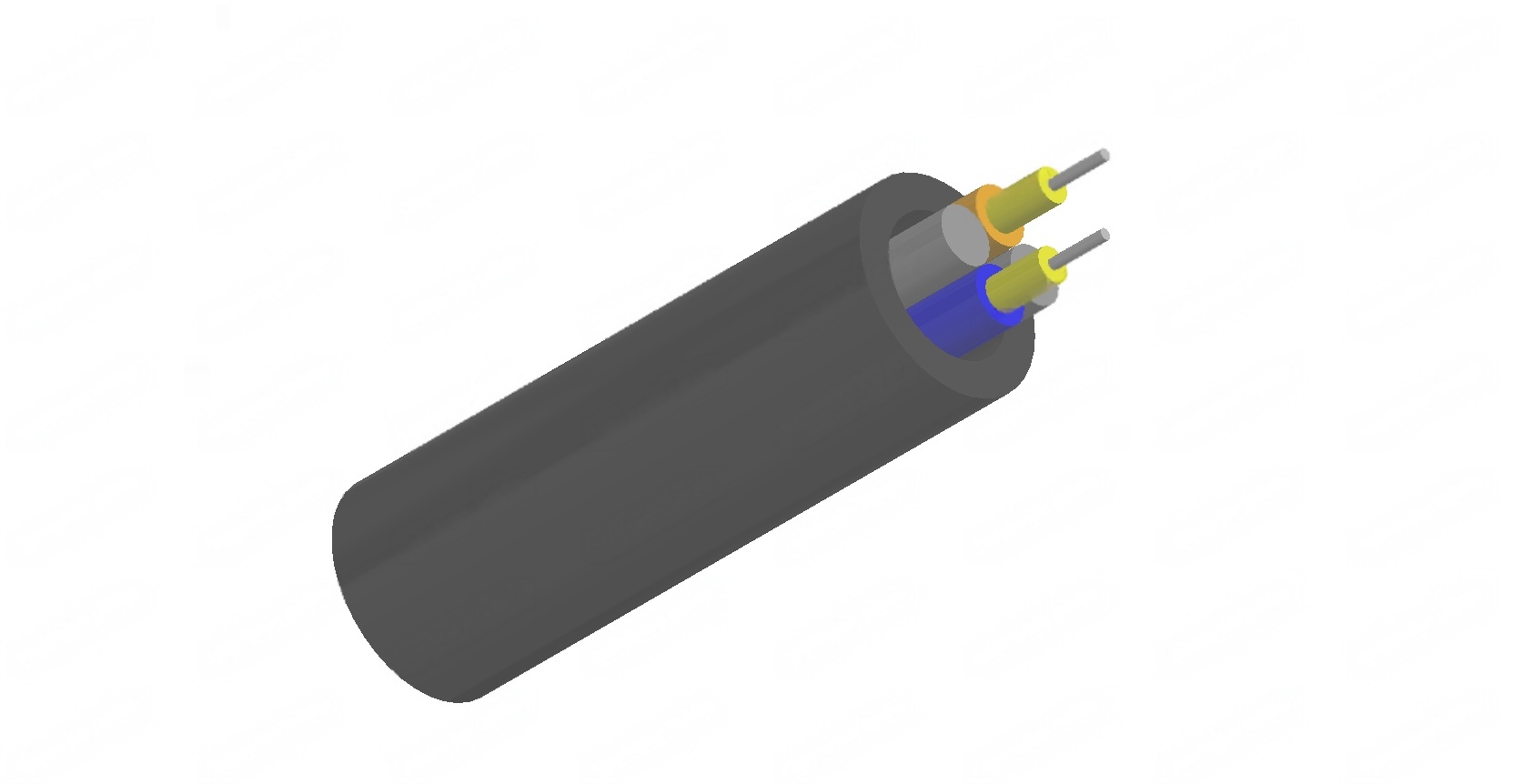

I-V(ZN)H11Y Fibre Optic Breakout Cable
Application
These cables are designed for wind turbine control or LAN backbone, suitable for indoor installation or outdoor installation in ducts.
Standards
DIN VDE 0888
IEC 60794

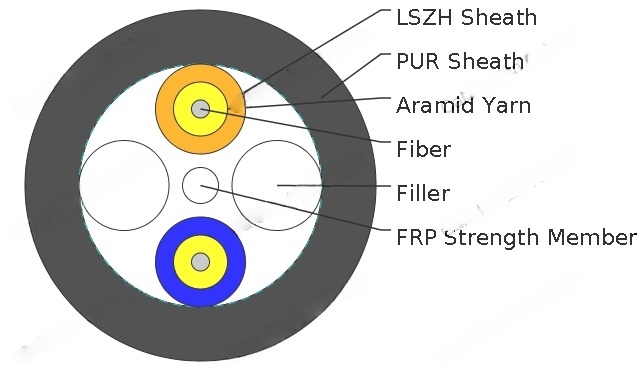

Construction
Core Type | Tight buffer. |
Strain Relief | Aramid yarns. |
Break-out Unit Sheath | LSZH. |
Central Strength Member | Dielectric Material. |
Outer Sheath | PUR |
Technical Data
Operating Temperatures | -40℃~+70℃ |
Minimum Bending Radius | 20×OD |
Torsion Application | +/-180° 500 times/2m; +/-360° 5 times/2m |
Dimensions and Weight
CONSTRUCTION | FIBRE TYPE | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|
NO. OF FIBRES | - | MM | KG/KM |
2 | Multimode G50/125 | 7.5 | 45 |
2 | Multimode G62.5/125 | 7.5 | 45 |
2 | Single-Mode E9/125 | 7.5 | 45 |
