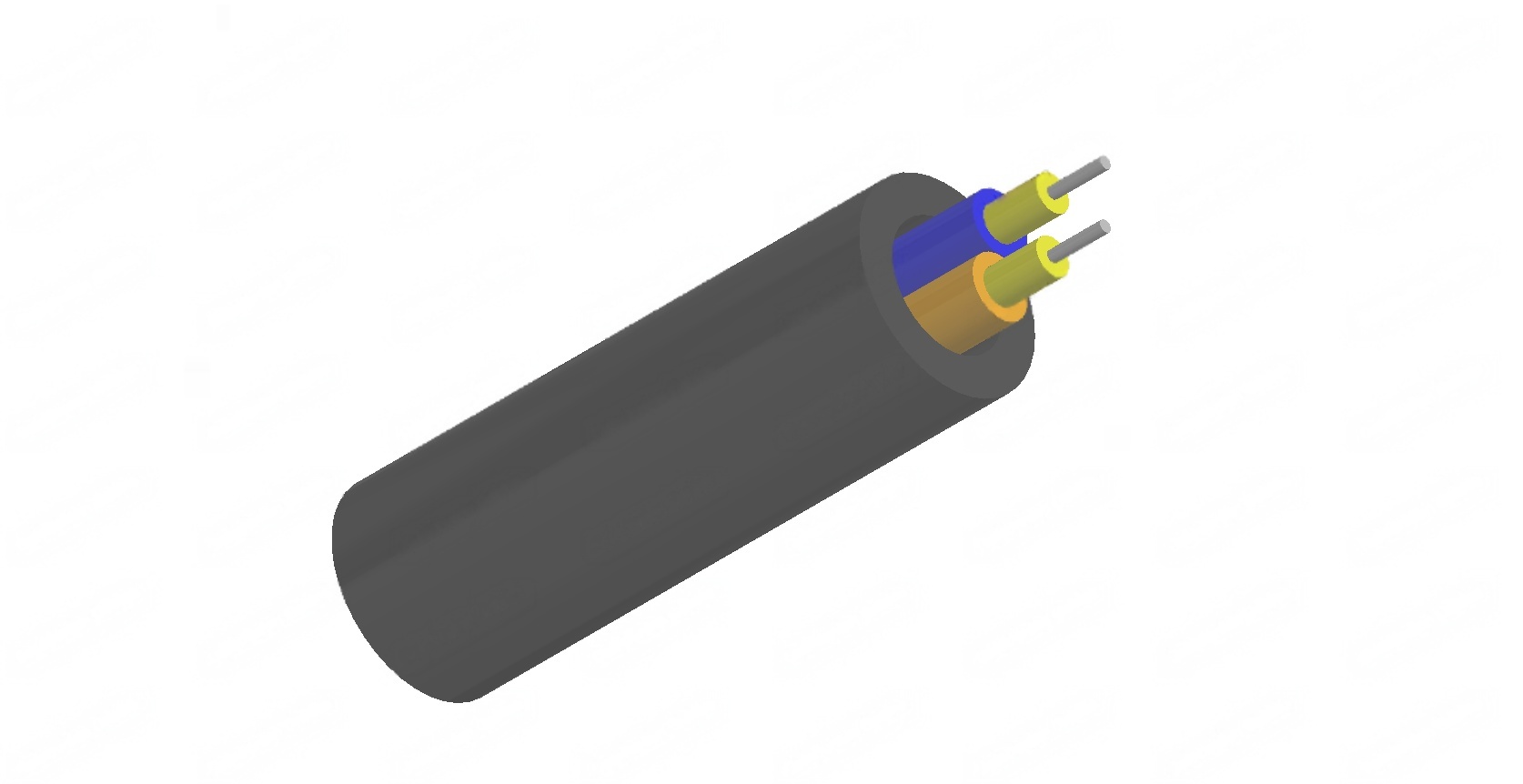

I-V(ZN)YY Fibre Optic Breakout Cable
Application
These flexible and robust cables are designed for industrial use, suitable for fixed and normal flexible installations.
Standards
DIN VDE 0888
IEC 60794

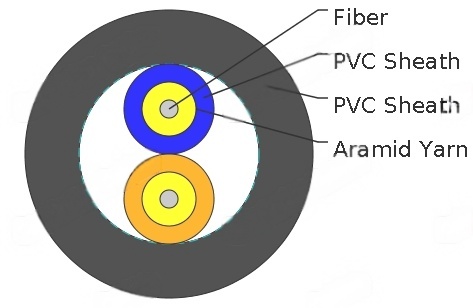

Construction
Core Type | Tight buffer. |
Strain Relief | Aramid yarns. |
Break-out Unit Sheath | PVC. |
Outer Sheath | PVC. |
Technical Data
Operating Temperatures | -40℃~+80℃ |
Minimum Bending Radius | During Installation: 60mm; Installation: 45mm |
Torsion Application | 180°/m |
Flame Retardant | IEC 60332-1/IEC 60332-3/UL 1685 FT1+FT4 |
Oil Resistant | Yes |
Ozone Resistant | Yes |
UV Resistant | Yes |
Dimensions and Weight
CONSTRUCTION | FIBRE TYPE | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|---|
NO. OF FIBRES |
| MM | KG/KM |
2 | HCS 200/230 | 7.5 | 68 |
