KX Series Coaxial Cables 50 Ω/75 Ω IEC60092
Application | These radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission. |
Standards | In line with MIL C17 |

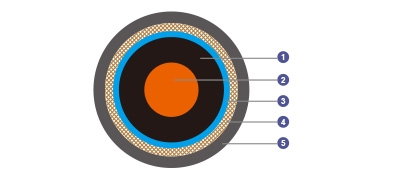

Construction | |
Conductors | Solid or stranded CCS (Bare copper plated steel), BC (Bare copper). |
Insulation | PE. |
Fire Barriers | Aluminium foil. |
Screen | Single or double braid. Bare, tinned or silvered copper. |
Outer Sheath | LSOH (SHF1). |
Electrical Characteristics
|
| KX 3B | KX 6A | KX 8 |
Characteristic Impedance | Ω | 50 | 75 | 75 |
Capacitance | pF/m | 106 | 72 | 72 |
Velocity | % | 66 | 66 | 66 |
Attenuation @200MHz | dB/100m | 45 | 20 | 12 |
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 10×OD
Temperature Range: -30℃ ~ +60℃
Dimensions and Weight
50 Ω
Part No. | Cable Type | Conductor Stranding No.×mm | Conductor Diameter mm | Dielectric Diameter mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
UE092-KX3B | KX 3B | 7×0.16 CCS | 0.48 | 1.50 | 2.55 | 10 |
75 Ω
Part No. | Cable Type | Conductor Stranding No.×mm | Conductor Diameter mm | Dielectric Diameter mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
UE092-KX6A | KX 6A | 7×0.20 BC | 0.6 | 3.7 | 6.1 | 57 |
UE092-KX8 | KX 8 | 7×0.40 BC | 1.2 | 7.25 | 10.3 | 145 |
