LiYCY Twisted Pair Data Cable
Application
These screened cables are designed for special purpose of data transmission in wind turbines, suitable for in dry, moist and wet rooms.
Standards
DIN VDE 0812, 0814

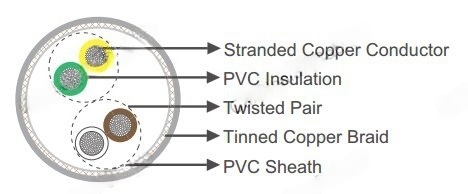

Construction
Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
Insulation | PVC Type YI2. |
Cable Element | Twisted pairs. |
Screen | Tinned copper wire braid. |
Sheath | PVC Type YM2. |
Technical Data
Rated Voltage Uo/U (Um) | 350V |
Operating Temperatures | flexing: -5℃~+80℃; fixed: -30℃~+80℃ |
Minimum Bending Radius | flexing: 10×OD; fixed: 5×OD |
Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
Oil Resistant | Yes |
Silicone Free | Yes |
Dimensions and Weight
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM2 | MM | KG/KM |
1×2×0.14 | 3.5 | 34 |
2×2×0.14 | 5.6 | 40 |
3×2×0.14 | 5.6 | 49 |
4×2×0.14 | 6.0 | 55 |
5×2×0.14 | 6.7 | 66 |
6×2×0.14 | 7.2 | 86 |
7×2×0.14 | 7.2 | 91 |
8×2×0.14 | 8.4 | 97 |
10×2×0.14 | 9.1 | 109 |
12×2×0.14 | 9.2 | 141 |
14×2×0.14 | 9.9 | 148 |
15×2×0.14 | 10.4 | 152 |
16×2×0.14 | 10.4 | 155 |
18×2×0.14 | 11.0 | 171 |
20×2×0.14 | 11.5 | 183 |
22×2×0.14 | 12.3 | 205 |
24×2×0.14 | 12.3 | 228 |
25×2×0.14 | 12.5 | 239 |
26×2×0.14 | 12.5 | 245 |
27×2×0.14 | 12.5 | 251 |
28×2×0.14 | 13.7 | 258 |
30×2×0.14 | 13.7 | 270 |
32×2×0.14 | 14.2 | 284 |
34×2×0.14 | 14.7 | 300 |
36×2×0.14 | 14.9 | 316 |
38×2×0.14 | 15.6 | 350 |
40×2×0.14 | 16.1 | 370 |
44×2×0.14 | 16.8 | 390 |
46×2×0.14 | 17.0 | 430 |
50×2×0.14 | 17.7 | 440 |
52×2×0.14 | 17.7 | 460 |
55×2×0.14 | 18.2 | 480 |
1×2×0.25 | 4.1 | 45 |
2×2×0.25 | 6.3 | 53 |
3×2×0.25 | 6.6 | 65 |
4×2×0.25 | 7.0 | 80 |
5×2×0.25 | 7.8 | 98 |
6×2×0.25 | 8.6 | 114 |
7×2×0.25 | 8.6 | 121 |
8×2×0.25 | 9.8 | 129 |
10×2×0.25 | 11.0 | 157 |
12×2×0.25 | 11.2 | 189 |
14×2×0.25 | 12.2 | 213 |
15×2×0.25 | 12.8 | 225 |
16×2×0.25 | 12.8 | 237 |
18×2×0.25 | 13.5 | 248 |
20×2×0.25 | 14.1 | 275 |
22×2×0.25 | 14.9 | 303 |
24×2×0.25 | 15.3 | 330 |
25×2×0.25 | 15.5 | 343 |
26×2×0.25 | 15.5 | 345 |
27×2×0.25 | 15.5 | 350 |
28×2×0.25 | 17.0 | 360 |
30×2×0.25 | 17.0 | 375 |
32×2×0.25 | 17.6 | 400 |
34×2×0.25 | 18.2 | 410 |
36×2×0.25 | 18.2 | 420 |
38×2×0.25 | 19.0 | 450 |
40×2×0.25 | 19.7 | 485 |
44×2×0.25 | 20.5 | 500 |
46×2×0.25 | 20.7 | 540 |
50×2×0.25 | 21.5 | 550 |
52×2×0.25 | 21.5 | 580 |
55×2×0.25 | 22.1 | 630 |
1×2×0.34 | 5.4 | 58 |
2×2×0.34 | 7.0 | 65 |
3×2×0.34 | 7.3 | 78 |
4×2×0.34 | 8.1 | 90 |
5×2×0.34 | 8.8 | 110 |
6×2×0.34 | 9.8 | 130 |
7×2×0.34 | 9.8 | 145 |
8×2×0.34 | 11.2 | 150 |
9×2×0.34 | 12.6 | 170 |
10×2×0.34 | 12.6 | 190 |
12×2×0.34 | 12.8 | 220 |
14×2×0.34 | 13.3 | 245 |
16×2×0.34 | 14.3 | 250 |
18×2×0.34 | 15.2 | 275 |
21×2×0.34 | 15.9 | 300 |
25×2×0.34 | 17.5 | 400 |
27×2×0.34 | 17.5 | 410 |
30×2×0.34 | 19.1 | 440 |
34×2×0.34 | 20.8 | 510 |
37×2×0.34 | 21.5 | 550 |
40×2×0.34 | 22.4 | 590 |
44×2×0.34 | 23.6 | 600 |
50×2×0.34 | 24.8 | 650 |
52×2×0.34 | 24.8 | 680 |
56×2×0.34 | 25.4 | 750 |
61×2×0.34 | 26.2 | 840 |
1×2×0.5 | 4.9 | 60 |
2×2×0.5 | 7.8 | 89 |
3×2×0.5 | 8.2 | 104 |
4×2×0.5 | 9.1 | 126 |
5×2×0.5 | 9.9 | 148 |
6×2×0.5 | 10.7 | 171 |
8×2×0.5 | 12.8 | 290 |
10×2×0.5 | 14.0 | 320 |
12×2×0.5 | 14.3 | 361 |
16×2×0.5 | 16.1 | 421 |
20×2×0.5 | 17.2 | 580 |
25×2×0.5 | 17.9 | 740 |
1×2×0.75 | 5.2 | 71 |
2×2×0.75 | 8.4 | 105 |
3×2×0.75 | 8.9 | 128 |
4×2×0.75 | 9.8 | 156 |
5×2×0.75 | 10.8 | 189 |
6×2×0.75 | 12.1 | 216 |
8×2×0.75 | 13.4 | 309 |
10×2×0.75 | 15.5 | 355 |
12×2×0.75 | 15.8 | 405 |
16×2×0.75 | 18.0 | 565 |
20×2×0.75 | 19.2 | 700 |
25×2×0.75 | 21.8 | 950 |
1×2×1 | 5.3 | 75 |
2×2×1 | 8.9 | 116 |
3×2×1 | 9.4 | 140 |
4×2×1 | 10.4 | 191 |
