Longitudinally Water Blocked Cable
Application
These outboard installation cables for naval vessels are transversally water blocked and longitudinally completely water blocked, designed according to VG 95218 part 29.

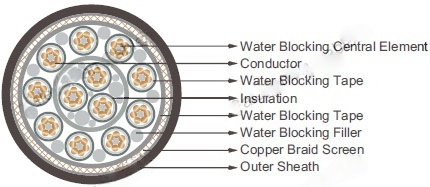

Construction
Conductor | Copper conductor, fine stranded. |
|---|---|
Central Element | Water-blocking central element. |
Separator | Water-blocking tape. |
Insulation | Special elastomer. |
Fillers | Water-blocking filler. |
Separator | Water-blocking tape. |
Screen | Copper braid with tinned wires. |
Sheath | Cross linked halogen free flame retardant compound. |
Electrical Data
500V
Number of Cores × Nominal Cross Section Area | Maximum Transfer impedance |
|---|---|
No. × mm^2 | m Ω /m |
2×1.5 | 30 |
3×1.5 | 30 |
3G1.5 | 30 |
7×1.5 | 30 |
4×2×0.75 | 30 |
12×0.75 | 30 |
12×1.5 | 30 |
24×1.5 | 30 |
Dimension and Weight
500V
Number of Cores × Nominal Cross Section Area | Maximum Single Core Diameter | Minimum Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Maximum Weight |
|---|---|---|---|---|---|
No. × mm^2 | mm | mm | mm | mm | kg/km |
3.4 | 2.0 | 12.6 | 13.2 | 200 | |
3.4 | 2.0 | 13.4 | 13.8 | 250 | |
3.4 | 2.0 | 13.4 | 13.8 | 250 | |
3.4 | 1.5 | 15.7 | 16.2 | 430 | |
2.5 | 2.0 | 20.6 | 21.2 | 560 | |
2.5 | 2.0 | 18.5 | 19.1 | 540 | |
3.4 | 2.0 | 20.9 | 21.5 | 700 | |
3.4 | 2.0 | 28.1 | 28.7 | 1230 |
