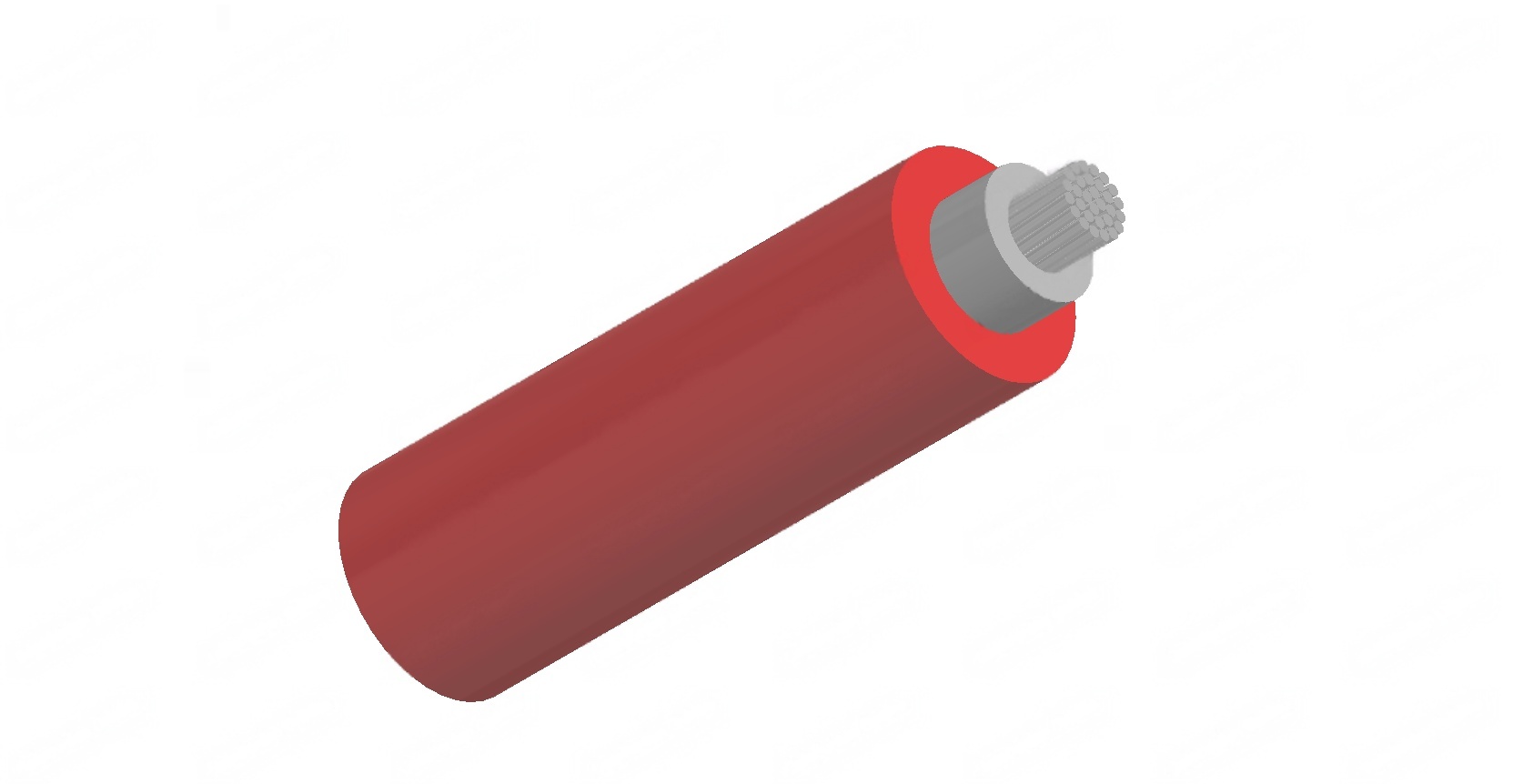

Medium Voltage High Temperature Resistant Cables +180°C
Application
These cables are specifically designed for applications requiring for high temperature and oil resistant, suitable used for linking generators to transformers positioned up in the nacelle.
Standards
IEC 60092
Construction
Conductor | Stranded tinned copper wires, class 5 according to IEC 60228 |
Tape | Polyester tape (up 16 mm^2), Semi-conductive layer (only for 6.6 and 13.8 kV) |
Insulation | Silicone rubber insulation |
Braid | PUR varnished synthetic yarn braid |
Technical Data
Rated Voltage U0/U (Um) | 1.1kV-15kV |
Operating Temperatures | -55℃~+180℃ |
Minimum Bending Radius | 6×OD (1.1kV); 12×OD (>=1.1kV) |
Flame Retardant | IEC 60332-1/IEC 60332-3 |
Halogen Free | IEC 60754 |
Corrosive Gases | IEC 60754 |
Smoke Density | IEC 61034 |
Oil Resistant | Yes |
Ozone Resistant | Yes |
UV Resistant | Yes |
Cold Resistant | CSA C 22.2 |
Dimensions and Weight
1.1KV
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×2.5 | 4.5 | 36 |
1×4 | 5.0 | 52 |
1×6 | 5.4 | 69 |
1×10 | 6.4 | 111 |
1×16 | 8.6 | 177 |
1×25 | 10.3 | 267 |
1×35 | 11.6 | 365 |
1×50 | 13.6 | 510 |
1×70 | 15.7 | 701 |
1×95 | 17.9 | 926 |
1×120 | 19.8 | 1154 |
1×150 | 21.9 | 1432 |
1×185 | 24.3 | 1761 |
1×240 | 26.9 | 2284 |
3.3-4.2KV
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×2.5 | 6.3 | 54 |
1×6 | 7.3 | 90 |
1×10 | 8.2 | 135 |
1×16 | 10.4 | 208 |
1×25 | 12.0 | 302 |
1×35 | 13.2 | 401 |
1×50 | 15.4 | 559 |
1×70 | 17.5 | 775 |
1×95 | 19.5 | 981 |
1×120 | 21.4 | 1215 |
1×150 | 23.1 | 1481 |
1×185 | 25.1 | 1798 |
1×240 | 27.5 | 2314 |
6.6-7.2KV
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×4 | 7.6 | 81 |
1×6 | 8.0 | 99 |
1×10 | 9.0 | 145 |
1×16 | 11.3 | 225 |
1×25 | 12.9 | 322 |
1×35 | 14.1 | 423 |
1×50 | 16.3 | 584 |
1×70 | 18.3 | 785 |
1×95 | 20.2 | 1006 |
1×120 | 22.0 | 1238 |
1×150 | 24.1 | 1525 |
1×185 | 26.1 | 1844 |
1×240 | 28.3 | 2355 |
13.8-15.0KV
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×10 | 12.1 | 205 |
1×16 | 14.0 | 288 |
1×25 | 15.5 | 390 |
1×35 | 16.7 | 497 |
1×50 | 18.5 | 655 |
1×70 | 20.6 | 864 |
1×95 | 22.4 | 1093 |
1×120 | 24.2 | 1332 |
1×150 | 26.5 | 1637 |
1×185 | 28.5 | 1966 |
1×240 | 30.7 | 2486 |
