Mud Resistant Cat 7 S/FTP 0.27 mm² IEC60092
Application | These Cat7 S/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class F applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for voice, data, CATV and sharing application installations up to 600MHz. These cables have additional flame retardant, halogen-free, low smoke MUD protecting outer sheaths. |
Standards | EN 50173-1 |

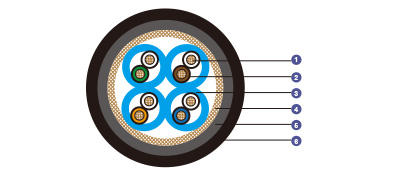

Construction | |
Conductors | Stranded copper conductor. |
Insulation | PE. |
Twinning | Two coloured insulated conductors twisted together to form a pair. |
Individual Screen | Al/polyester tape. |
Overall Screen | Tinned copper wire braid. |
Inner Sheath | Oil resistant, flame retardant and halogen free LSOH (SHF1). |
Outer Sheath | MUD protecting. |
Core Identification | Pair 1: White, Blue |
Electrical Properties
Maximum DC Loop Resistance | Ω/km | 138 |
Maximum Resistance Unbalance |
| 2% |
Minimum Insulation Resistance (500V) | 5000 | |
Nominal Capacitance @800Hz | nF/km | 43 |
Maximum Capacitance Unbalance (pair to ground) | pF/km | 1500 |
Mean Characteristic Impedance @100MHz | Ω | 100 ± 5 |
Nominal Velocity of Propagation |
| 0.76c |
Maximum Propagation Delay | ns/100 m | 450 |
Maximum Delay Skew | ns/100 m | 15 |
Maximum Transfer Impedance @1MHz | mΩ /m | 10 |
Maximum Transfer Impedance @10MHz | mΩ /m | 8 |
Maximum Transfer Impedance @30MHz | mΩ /m | 10 |
Minimum Coupling Attenuation | dB | 85 |
Nominal Transmission Characteristics @20℃
F | Attenuation | NEXT | ACR | Return Loss | PS-NEXT | PS-ACR | ELFEXT | PS-ELFEXT |
MHz | dB/100m | dB | dB/100m | dB | dB | dB/100m | dB/100m | dB/100m |
1 | 2.0 | 90 | 88 |
| 87 | 85 | 85 | 82 |
4 | 3.6 | 90 | 86 | 27 | 87 | 83 | 85 | 82 |
10 | 5.5 | 90 | 84 | 30 | 87 | 81 | 79 | 76 |
16 | 7.5 | 90 | 82 | 30 | 87 | 79 | 75 | 72 |
20 | 7.7 | 90 | 82 | 30 | 87 | 79 | 73 | 70 |
31.25 | 9.8 | 90 | 80 | 30 | 87 | 77 | 69 | 66 |
62.5 | 14.0 | 86 | 72 | 30 | 83 | 69 | 63 | 60 |
100 | 17.9 | 83 | 65 | 30 | 80 | 62 | 59 | 56 |
155.0 | 22.4 | 81 | 59 | 26 | 78 | 55 | 57 | 54 |
200.0 | 25.6 | 78 | 52 | 25 | 75 | 49 | 53 | 50 |
250.0 | 28.8 | 77 | 48 | 25 | 74 | 45 | 51 | 48 |
300.0 | 31.6 | 73 | 41 | 23 | 70 | 38 | 47 | 44 |
600.0 | 45.7 | 71 | 25 | 20 | 68 | 22 | 44 | 41 |
Mechanical and Thermal Properties
Bending Radius: 8×OD (during installation); 4×OD (fixed installed)
Temperature Range: -40℃ ~ +85℃
Dimensions and Weight
Part No. | Construction No. of elements×No. of cores in element×Cross section(mm²) | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km | |
Inner | Outer | |||||
UE092-S/FTPCAT7M4P27S | 4×2×0.27 | 0.47 | 0.75 | 1.0 | 10.1 | 112 |
