N2XH 0.6/1kV LSOH Power Cable
Application
These cables are designed for energy supply, suitable for fixed installation in dry, damp or wet environments; in, above, on and beneath plaster as well as in masonary walls and in concrete, also suitable for outdoor applications and in underground by using in conduits or tubes.
Standards
DIN VDE 0276 part 604

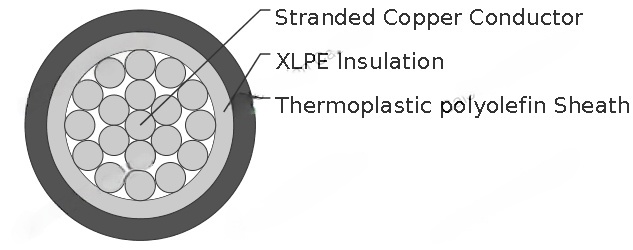

Construction
Conductor | Bare copper conductor wire according to VDE 0295/IEC 60228 |
Insulation | Halogen free cross-linked polyethylene (XLPE), Type 2XI1 |
Inner Covering | Overall filled inner sheath covered by filling compound or wrapped tape |
Sheath | Thermoplastic polyolefin, Type HM4 |
Technical Data
Rated Voltage Uo/U (Um) | 0.6/1kV |
Operating Temperatures | -30℃~+ 90℃ |
Minimum Bending Radius | 15×OD |
Flame Retardant | DIN VDE 0482 part 266-2/BS 4066 part 3/EN 50266-2/IEC 60332-3 |
Halogen Free | DIN VDE 0482 part 267/EN 50267-2-1/IEC 60754 |
Corrosive Gases | DIN VDE 0482 part 267/EN 50267-2-2/IEC 60754 |
Smoke Density | DIN VDE 0482 part 268/HD 606/EN 50268-1+2/ IEC 61034/BS 7622 part 1+2 |
Dimensions and Weight
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×185 rm | 25.0 | 1910 |
1×240 rm | 28.0 | 2370 |
1×300 rm | 30.0 | 2970 |
