N2XY 0.6/1kV Power Cable
Application
These cables are designed for energy supply, suitable for installed in underground, water, cable ducts, power tations, outdoors, indoors, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not expected.
Standards
IEC 60502
DIN VDE 0276 part 603

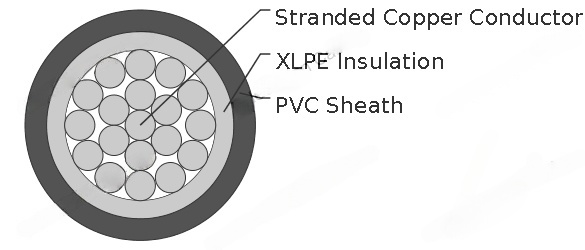

Construction
Conductor | Stranded bare copper conductor according to VDE 0295/IEC 60228 |
Insulation | Cross-linked polyethylene (XLPE) |
Inner Covering | Extruded inner covering |
Sheath | PVC |
Technical Data
Rated Voltage Uo/U (Um) | 0.6/1kV |
Operating Temperatures | -40℃ ~ +70℃ |
Minimum Bending Radius | 15×OD |
Maximum Permissible Tensile Load | 50N/mm^2 |
Short-circuit Temperature | 250℃ |
Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
Silicone Free | Yes |
Dimensions and Weight
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×95 | 21.0 | 1200 |
1×150 | 25.0 | 1800 |
1×185 | 27.0 | 2200 |
1×240 | 30.0 | 2800 |
1×300 | 32.0 | 3300 |
1×400 | 36.0 | 4200 |
1×500 | 40.0 | 5400 |
4G35 | 31.0 | 2200 |
4G50 | 33.0 | 2400 |
4G75 | 38.0 | 3100 |
4G95 | 42.0 | 4200 |
4G120 | 46.0 | 5100 |
4G150 | 50.0 | 6300 |
4G185 | 55.0 | 8000 |
4G240 | 70.0 | 10000 |
G: with green-yellow earth core ×: without green-yellow earth core
