(N)SSCHÖU-J 0.6/1kV Cable

Unveiling the (N)SSCHÖU-J 0.6/1kV Cable:

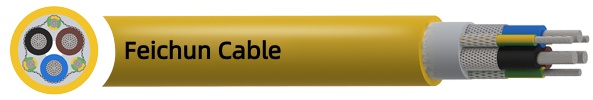

At its core, the (N)SSCHÖU-J 0.6/1kV Cable is a multi-core, screened flexible power cable tailored for dynamic and static applications. Its "heavy-duty tough rubber" sheath isn't hyperbole; it's a deliberate design choice for environments where lesser cables would falter. Imagine a cable that laughs in the face of oily sewage, corrosive salt water, or abrasive mining debris—this is that cable.

The nomenclature "(N)SSCHÖU-J" hints at its pedigree: the "SSCHÖU" denotes a screened, rubber-insulated and sheathed cable with copper conductors, while the "J" specifies a concentric arrangement of phase and earth conductors. Compliant with VDE 0250 Part 812, VDE 0295, and EN 60228 standards, it meets rigorous European benchmarks for safety and performance. Flame retardancy per IEC/EN 60332-1-2 ensures it won't propagate fire, a vital feature in confined spaces like tunnels or processing plants.

What sets this heavy-duty rubber flexible cable apart is its versatility. It's suitable for indoor and outdoor use, dry or drenched, making it a go-to for sectors demanding unyielding reliability. In frequency converter-driven systems—think variable speed motors in pumps or conveyors—the TCWB screen mitigates electromagnetic interference (EMI), preventing signal distortion that could cascade into equipment failure. This EMC protection isn't a luxury; in automated industrial setups, it's essential for operational integrity.

As we peel back the layers, the cable's specs reveal a symphony of balanced attributes: high voltage tolerance, thermal resilience, and mechanical fortitude. But numbers alone don't tell the story—it's how these translate to real-world endurance that captivates. From South African gold mines to global petrochemical plants, the (N)SSCHÖU-J 0.6/1kV Cable powers progress where others perish.

Installation and Maintenance Recommendations: Ensuring Longevity

Installing the (N)SSCHÖU-J 0.6/1kV Cable demands precision to harness its full potential. Begin with site assessment: verify ambient conditions align with specs, using de-rating for heat or grouping. For fixed layouts, maintain 4x diameter bends; mobile setups require 5x. Employ cable glands with IP68 sealing for submersion, and torque connections per manufacturer torque specs to avoid hot spots.

In reeling drums, layer uniformly to prevent kinking—current derates progressively from 1 to 7 layers. For underground or wet installs, bury in trenches with sand bedding, avoiding sharp rocks. Always terminate with screened connectors to preserve EMC integrity, grounding the braid to chassis.

Maintenance is proactive: quarterly visual checks for sheath cuts or braid exposure, using megohmmeters for insulation resistance (>100MΩ at 500V). Clean with mild solvents, avoiding abrasives. In mining, integrate IoT sensors for real-time monitoring of temperature and strain. Lifespan exceeds 10 years with adherence, but faults? Isolate via thermal imaging, repairing via splicing kits compliant with VDE 0276. These practices transform the cable from component to asset, minimizing unplanned outages.

Usage Scenarios:

The (N)SSCHÖU-J 0.6/1kV Cable excels in scenarios where flexibility meets fortitude. In manufacturing, it powers robotic arms and conveyors, its EMC screen quelling noise from VFDs. Marine applications leverage submersion rating for subsea pumps in desalination plants, enduring saltwater assaults.

In construction, trailing behind excavators, it handles dynamic pulls without fatigue. Energy sectors deploy it in wind turbine nacelles, braving -40°C gales. But its true metier? Hazardous zones—explosion-proof setups in refineries, where flame retardancy and toughness converge. Portable tools in workshops benefit from its reelability, supporting up to 554A free-air for 240mm². Across these, the heavy-duty rubber flexible cable adapts, slashing replacement costs by 30-50% over PVC alternatives.

Frequently Asked Questions:

Q: Is the (N)SSCHÖU-J 0.6/1kV Cable suitable for explosive atmospheres?

A: Yes, its flame-retardant rubber and screened design comply with ATEX-like standards, ideal for Zone 1/2 areas when properly installed.

Q: How does voltage drop impact long-distance runs?

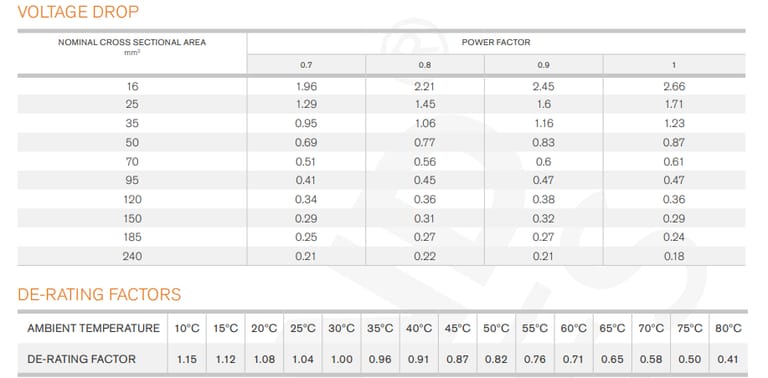

A: Minimal—e.g., 0.18mV/A/m for 240mm² at unity PF—ensuring <3% drop over 500m, per calcs.

Q: Can it handle chemical exposure?

A: Absolutely; the outer sheath resists oils, acids, and sewage, per VDE testing.

Q: What's the warranty on this heavy-duty rubber flexible cable?

A: Typically 5-10 years from manufacturers, contingent on correct use.

Q: How to select core size for my application?

A: Factor load, length, and derating; consult tables for 99-554A ranges.

The (N)SSCHÖU-J 0.6/1kV Cable isn't just wire and rubber—it's resilience incarnate, bridging innovation with practicality. From specs to SA mines, it empowers safer, smarter operations. As industries evolve, this heavy-duty rubber flexible cable will remain a cornerstone, illuminating paths through darkness.
