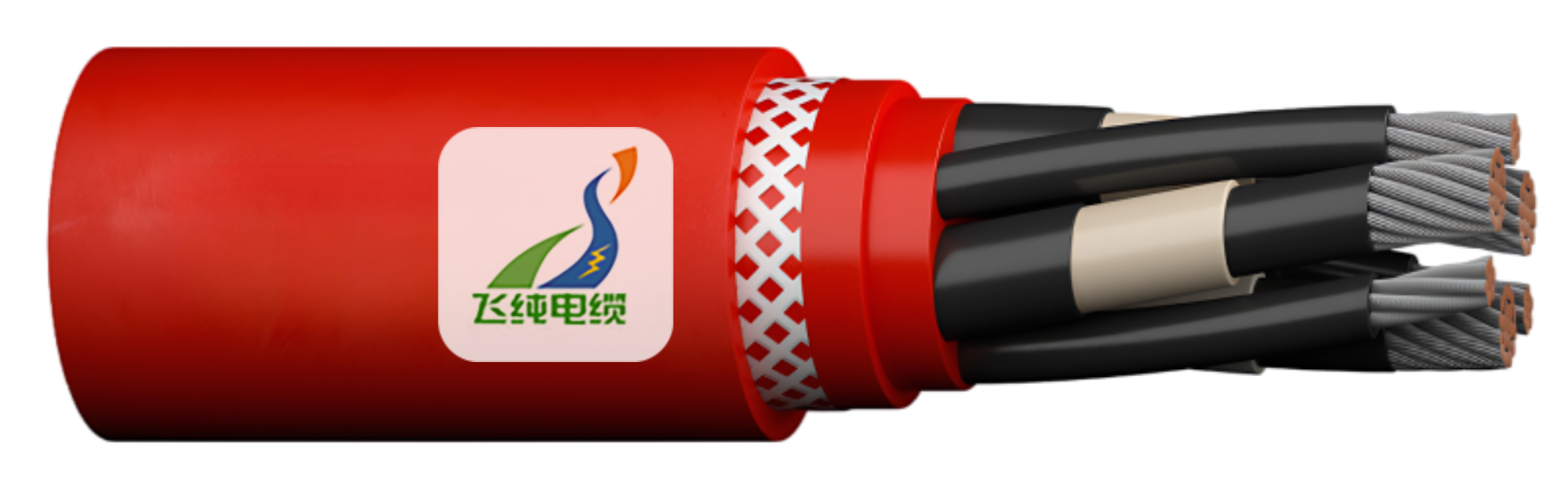

NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress) VDE 0250 Part 812
NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress) VDE 0250 Part 812: used for the connection of mobile machines under extremelyhigh mechanical loads, predominantly in miningsituations.
NSSHCGEOEU 0.6/1kV Coal Cutter Cable (High Tensile Stress) VDE 0250 Part 812
Applications | These cables are used for the connection of mobile machines under extremelyhigh mechanical loads, predominantly in miningsituations, e.g. for coal-cutting machines, also can beoperated via guide pulleys (cable cars) or used as areeling cable (LHD), suitable for extreme bending loads, high tensile stress,and impact and crushing loads. |
Standards | VDE 0250 Part 812 |

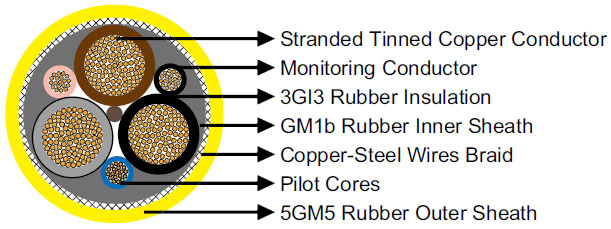

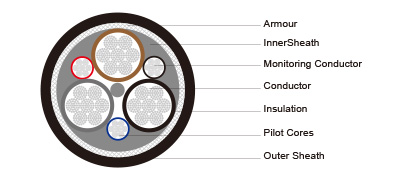

Construction  | |
Conductors | Flexible stranded tinned copper conductor. |
Insulation | Heatresistant3GI3 rubber based on EPR. |
Outer Conductor Layer | Easy strippable outer conductive layer. |
Pilot Cores | Copper and steel conductor capable ofexpansion and compression with 3GI3 EPRrubber insulation. |
Monitoring Conductor | Copper and steel conductorcapable of expansion and compression covert with semiconductive rubber compound. |
InnerSheath | Rubber type GM1b. |
Armour/Earth Conductor | Concentric earth conductor as tensile-stress-resistant braided armour of combined copper-steel wires. |
Outer Sheath | Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant. |
Dimensions and Weight
Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
No.×mm² | mm | mm | kg/km |
3×16/16KON+2ST+UEL | 38.5 | 41.5 | 2430 |
3×25/16KON+2ST+UEL | 41.0 | 44.5 | 3050 |
3×35/16KON+2ST+UEL | 44.5 | 48.0 | 3620 |
3×50/25KON+2ST+UEL | 50.0 | 54.0 | 4810 |
3×70/35KON+2ST+UEL | 54.5 | 58.5 | 5890 |
3×95/50KON+2ST+UEL | 62.5 | 66.5 | 7800 |
3×35/16KON+3ST+3UEL | 44.5 | 48.0 | 3860 |
3×50/25KON+3ST+3UEL | 50.0 | 54.0 | 5050 |
3×70/35KON+3ST+3UEL | 54.5 | 58.5 | 6000 |
3×95/50KON+3ST+3UEL | 62.5 | 66.5 | 8050 |
3×120/70KON+3ST+3UEL | 67.5 | 72.0 | 9380 |
3×150/70KON+3ST+3UEL | 74.5 | 79.0 | 11120 |
Recommended Use
Feichun NSSHCGEOEU 0.6/1kV Coal Cutter Cables (High Tensile Stress) are designed for demanding applications requiring high durability and reliability, including:
Underground Mining Equipment: Ideal for coal cutting machines.
Cable Chain Systems: Suitable for environments with constant motion.
Low-Voltage Power Transmission: Effective in extreme conditions.
Installation Considerations
To ensure optimal performance and longevity, follow these best practices:
Consideration | Recommendation |
|---|---|
Cable Handling | Respect minimum bending radius; avoid mechanical damage. |
Environmental Factors | Verify compatibility with the site; conduct pre-installation tests. |
Cable Chain Management | Ensure proper routing and tension adjustments. |
Regular Maintenance
To extend the lifespan and ensure reliability of Feichun cables:
Conduct regular visual inspections to identify wear or damage.
Perform electrical integrity tests at scheduled intervals.
Train personnel in specialized handling techniques to prevent improper use.
