NTSCGEWOEU Medium Voltage Torsion Resistant Cable 3.6/6kV
Application
These medium-voltage cables are designed for energy transmission, also for loop applications.
Standards
DIN VDE 0250-813

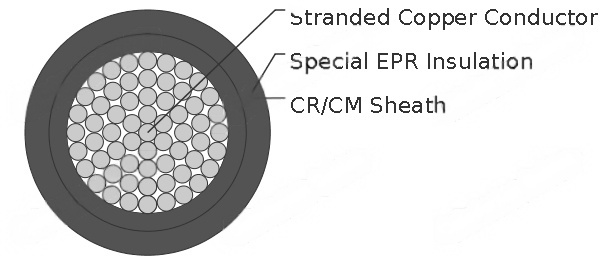

Construction
Conductor | Stranded tinned copper wires according to DIN VDE 0295 |
Insulation | Special EPR with inner and outer conducting layer |
Sheath | CM/CR |
Technical Data
Rated Voltage U0/U (Um) | 3.6/6kV |
Operating Temperatures | -40℃~+90℃ |
Minimum Bending Radius | 10×OD |
Torsion Application | +/-100°/m |
Oil Resistant | Yes |
Ozone Resistant | Yes |
UV Resistant | Yes |
Dimensions and Weight
3.6/6KV
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
3×35/35 | 61.0 | 5723 |
3×50/50 | 69.0 | 6596 |
3×70/70 | 73.0 | 7881 |
3×95/95 | 80.0 | 10612 |
1×240 | 42.8 | 3100 |
1×300 | 44.9 | 3800 |
