NTSCGEWöU

Application

For the connection of electrical equipment large material handling machines such as excavators, cranes, dumpers in mining and tunneling applications. The flexible cable design allows for movement of the equipment during operation.

Standards

Construction	DIN VDE 0250-813
General Requirements	DIN VDE 0250-1
Guide Use	DIN VDE 0298-3
Electrical Tests	DIN VDE 0472-501, 503, 508
Non-Electrical Tests	DIN VDE 0472-401. 402,602,303, 615
Under Fire Condition Tests	DIN VDE 0472-803, 804
Flame Retardant	VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1
Oil Resistant	HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1

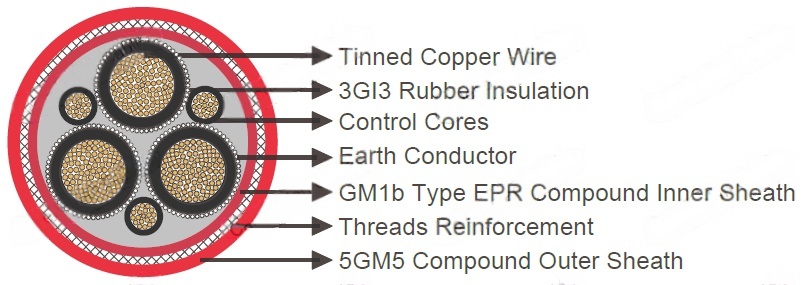

Cable Construction

Conductor : Electrolytic, stranded, tinned copper wire DIN VDE 0295 Class 5

Insulation : 3Gl3 type EPR compound

Electrical Field Control : Inner and Outer semiconductive layer of semiconductive rubber

Protective-Earth Conductor : Tinned Copper conductor with semiconductive layer

Lay Up : Three main conductors laid-up with three control cores in the outer interstice

Inner Sheath : GM1b Type EPR Compound

Reinforcement : Embedded braid made of anti torsion synthetic threads

Outer Sheath : 5GM5 Type elastomer compound. Red.

Technical Characteristics

Rated Voltage	3.6/6 KV	6/10 KV	8.7/15KV	12/20 KV	18/30 KV
AC Test Voltage	11KV	17KV	24KV	29KV	43KV
Max.Permissible Operating Voltage AC	4.2/7.2KV	6.9/12 KV	10.4/18KV	13.9/24 KV	20.8/36 KV
Min Bending Radius	VDE 0298-3 Tab 3
Current Carrying Capacities	VDE 0298-4
Working Temperature
Fixed	-40°C-+80°C
Mobile	-25°C-+80°C
Max.Tensile Load Of cable	15N/mm²
max.torsion	25°/m
Trawl Speed For Tunnelling App	Max.30 m/min
Minimum Distarce For Change Of Direction	20×D

Dimensions And Weight

3.6/6 KV

Cross Section	Overall Diameter (min-max)	Appro. Weight
mm²	mm	kg/km
3x25 + 3x25/3	41.8-45.0	2530
3x35 + 3x25/3	44.2-48.9	2900
3x50 + 3x25/3	48.5-51.4	3600
3x70 + 3x35/3	52.6-55.6	4400
3x95 + 3x50/3	55.7-58.8	5630
3x120 + 3x70/3	59.6-65.9	6200

6/10 KV

Cross Section	Overall Diameter (min-max)	Appro. Weight
mm²	mm	kg/km
3x25 + 3x25/3	43.6-48.1	2600
3x35 + 3x25/3	45.6-50.4	2980
3x50 + 3x25/3	48.3-51.4	3720
3x70 + 3x35/3	53.4-59.1	4510
3x95 + 3x50/3	57.1-63.2	5720
3x120 + 3x70/3	63.0-69.7	6300

8.7/15 KV

Cross Section	Overall Diameter (min-max)	Appro. Weight
mm²	mm	kg/km
3x25 + 3x25/3	48.1-53.2	3675
3x35 + 3x25/3	51.8-57.3	4415
3x50 + 3x25/3	55.5-61.4	5135
3x70 + 3x35/3	58.0-64.1	6005
3x95 + 3x50/3	63.4-70.1	7200
3x120 + 3x70/3	67.5-74.6	8700

12/20 KV

Cross Section	Overall Diameter (min-max)	Appro. Weight
mm²	mm	kg/km
3x25 + 3x25/3	51.1-55.3	4460
3x35 + 3x25/3	54.4-58.2	4990
3x50 + 3x25/3	59.4-63.6	5740
3x70 + 3x35/3	64.2-68.4	6950
3x95 + 3x50/3	69.6-73.8	7870
3x120 + 3x70/3	73.6-77.8	9425

18/30 KV

Cross Section	Overall Diameter (min-max)	Appro. Weight
mm²	mm	kg/km
3x25 + 3x25/3	66.0-72.8	6360
3x35 + 3x25/3	68.0-75.0	6925
3x50 + 3x25/3	71.6-79.1	7800
3x70 + 3x35/3	75.8-83.7	9140
3x95 + 3x50/3	79.4-87.7	10100
3x120 + 3x70/3	85.3-94.2	12260

20/35 KV

Cross Section	Overall Diameter (min-max)	Appro. Weight
mm²	mm	kg/km
3x35 + 3x25/3	75.7-83.6	8400
3x50 + 3x25/3	79.5-87.8	9360
3x70 + 3x35/3	82.0-90.6	10400
3x95 + 3x50/3	87.3-96.4	11770
3x120 + 3x70/3	91.4-101.1	13680
