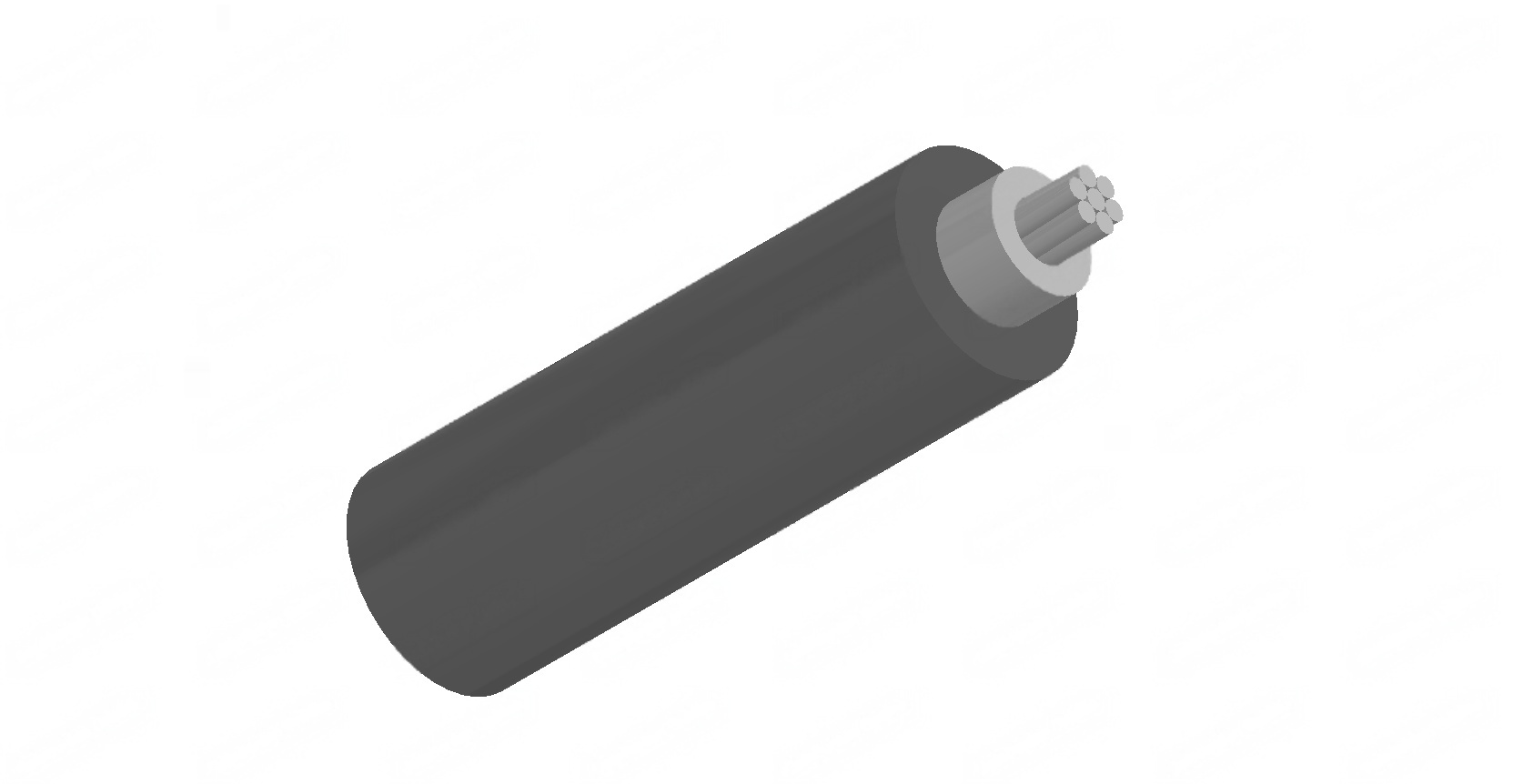

NYY 0.6/1kV Power Cable
Application
These cables are designed for power lines of fixed routing in wind tower installation, also used as energy supply cables installed in underground, water, cable ducts, power stations, outdoors, indoors, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not expected.
Standards
IEC 60502
DIN VDE 0276 part 603

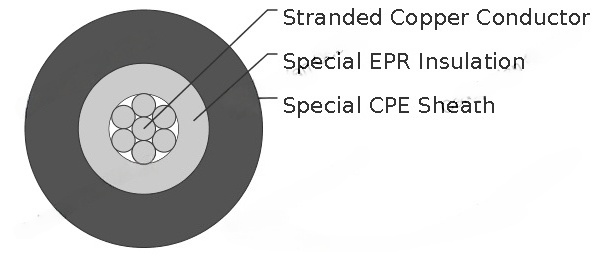

Construction
Conductor | Stranded copper conductor according to IEC60228/VDE 0295 |
Insulation | PVC |
Filling | Filling compound over the core assembly |
Sheath | PVC |
Technical Data
Rated Voltage Uo/U (Um) | 0.6/1kV |
Operating Temperatures | flexing: -5℃~+50℃; fixed: -40℃~+70℃ |
Minimum Bending Radius | Single Core: 15×OD; Multicore:12×OD |
Maximum Permissible Tensile Load | 50N/mm^2 |
Short-circuit Temperature | 160℃ |
Flame Retardant | IEC 60332-1/VDE 0482-332-1-2 |
Silicone Free | Yes |
Dimensions and Weight
NYY-J
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×25 rm | 13 | 380 |
1×35 rm | 14 | 447 |
1×50 rm | 15 | 650 |
1×70 rm | 17 | 864 |
3×1.5 re | 12 | 223 |
4×1.5 re | 13 | 256 |
5×1.5 re | 14 | 293 |
7×1.5 re | 15 | 360 |
10×1.5 re | 18 | 520 |
12×1.5 re | 19 | 560 |
14×1.5 re | 20 | 620 |
16×1.5 re | 21 | 680 |
19×1.5 re | 22 | 760 |
24×1.5 re | 24 | 900 |
30×1.5 re | 26 | 1100 |
3×2.5 re | 13 | 272 |
4×2.5 re | 14 | 316 |
5×2.5 re | 15 | 323 |
7×2.5 re | 16 | 450 |
10×2.5 re | 20 | 630 |
12×2.5 re | 20 | 680 |
14×2.5 re | 21 | 790 |
19×2.5 re | 23 | 990 |
24×2.5 re | 26 | 1300 |
30×2.5 re | 28 | 1400 |
3×4 re | 15 | 373 |
4×4 re | 16 | 439 |
5×4 re | 17 | 510 |
3×6 re | 16 | 466 |
4×6 re | 17 | 547 |
5×6 re | 19 | 640 |
3×10 re | 18 | 629 |
4×10 re | 19 | 743 |
5×10 re | 21 | 899 |
3×16 re | 20 | 850 |
4×16 re | 22 | 1039 |
5×16 re | 23 | 1240 |
3×25 rm/16 re | 25 | 1595 |
4×25 rm | 27 | 1620 |
3×35 sm/16 re | 27 | 1718 |
4×35 sm | 27 | 1916 |
3×50 sm/25 sm | 31 | 2383 |
4×50 sm | 31 | 2639 |
3×70 sm/35 sm | 33 | 3196 |
4×70 sm | 35 | 3576 |
3×95 sm/50 sm | 38 | 4271 |
4×95 sm | 40 | 4746 |
3×120 sm/70 sm | 41 | 5281 |
4×120 sm | 43 | 5813 |
3×150 sm/70 sm | 46 | 6408 |
4×150 sm | 48 | 7263 |
3×185 sm/95 sm | 50 | 7909 |
4×185 sm | 53 | 8905 |
3×240 sm/120 sm | 57 | 10162 |
4×240 sm | 60 | 11430 |
NYY-O
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM^2 | MM | KG/KM |
1×10 re | 10 | 176 |
1×16 re | 11 | 239 |
1×25 re | 13 | 380 |
1×35 re | 14 | 447 |
1×50 rm | 15 | 650 |
1×70 rm | 17 | 864 |
1×95 rm | 19 | 1132 |
1×120 rm | 21 | 1405 |
1×150 rm | 22 | 1710 |
1×185 rm | 24 | 2086 |
1×240 rm | 27 | 2669 |
1×300 rm | 30 | 3305 |
1×500 rm | 39 | 5400 |
2×1.5 re | 11 | 210 |
2×2.5 re | 12 | 250 |
4×2.5 re | 14 | 316 |
2×4 re | 14 | 360 |
4×4 re | 16 | 439 |
2×6 re | 15 | 400 |
4×6 re | 17 | 547 |
2×10 re | 17 | 500 |
4×10 re | 19 | 743 |
4×16 re | 22 | 1039 |
4×25 rm | 27 | 1620 |
4×35 sm | 27 | 1916 |
4×50 sm | 31 | 2639 |
4×70 sm | 35 | 3576 |
4×95 sm | 40 | 4746 |
re: round conducter, single wire rm: round conducter, multi wire sm: sectional conductor
