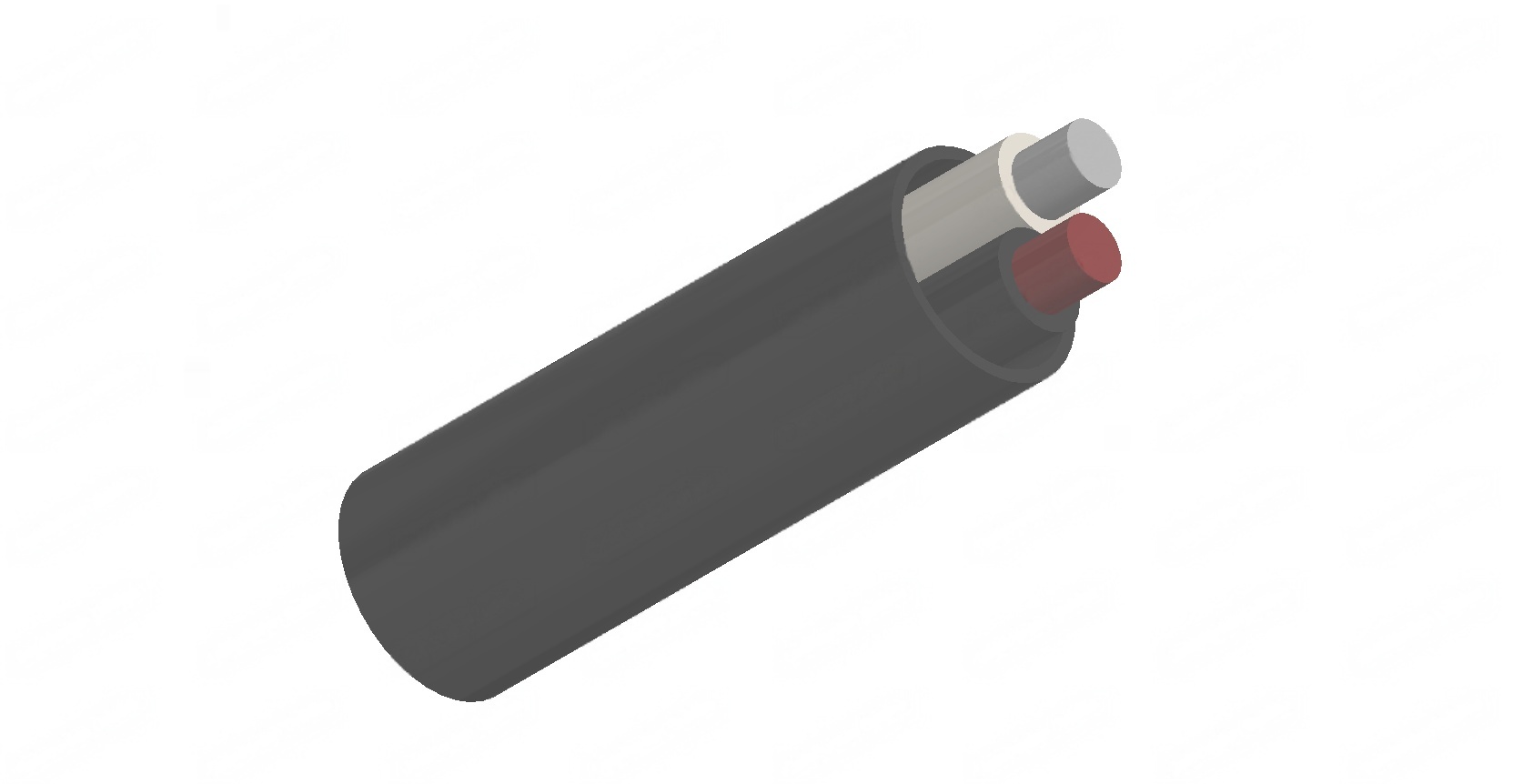

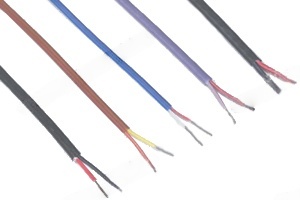

PFA Insulated Thermocouple Wire and Extension Wire
Product application
PFA Thermocouple Wire may be used for general use extension wire.

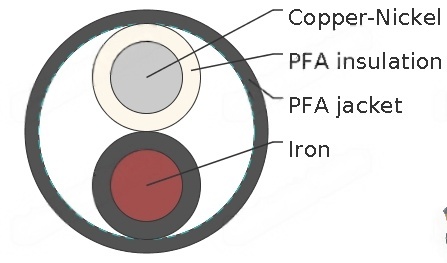

Construction
Solid or stranded thermocouple wire
Flame retardant extruded fluoropolymer PFA insulation
Parallel conductors
Flame retardant extruded fluoropolymer PFA jacket
Tinned Copper
Technical
Continuous temperature rating:260°C
Minimum Bend Radius: insulation 3 x cable O overall 5 x cable O
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Properties
Excellent abrasion, chemical and moisture resistance
Service temperature of 260 o C
Low friction factor when pulled

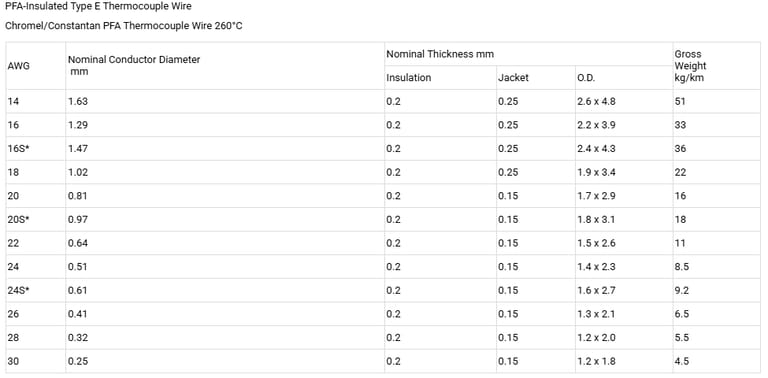

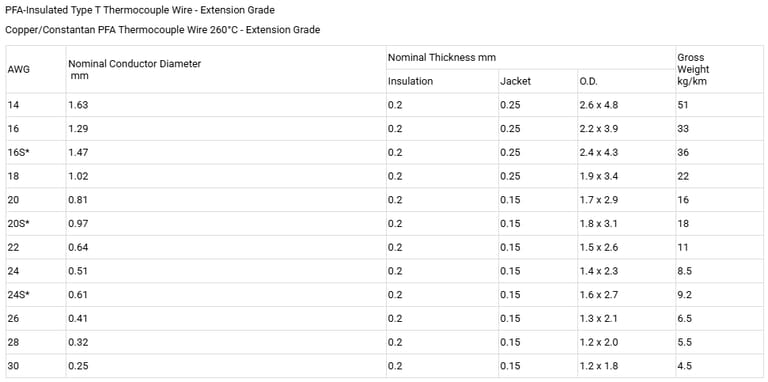

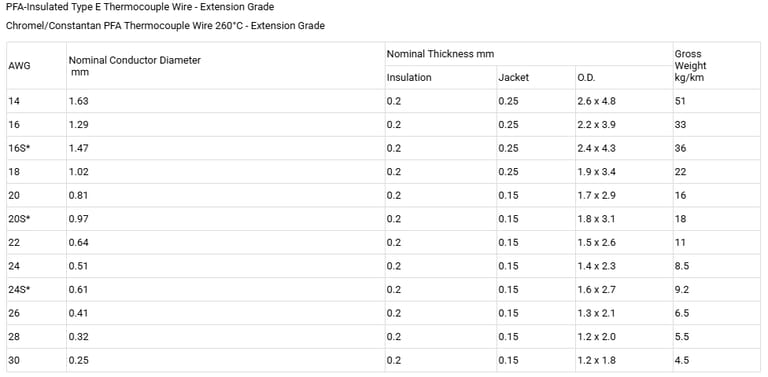

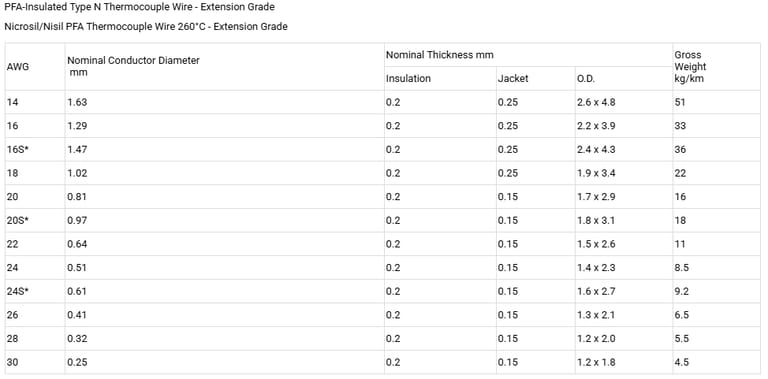

Product specification
PFA-Insulated Type J Thermocouple Wire
Iron/Constantan PFA Thermocouple Wire 260°C
AWG | Nominal Conductor Diameter | Nominal Thickness mm | Gross | ||
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type J Thermocouple Wire - Extension Grade
Iron/Constantan PFA Thermocouple Wire 260°C - Extension Grade
AWG | Nominal Conductor Diameter | Nominal Thickness mm | Gross | ||
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type K Thermocouple Wire
Chromel/Alumel PFA Thermocouple Wire260°C
AWG | Nominal Conductor Diameter | Nominal Thickness mm | Gross | ||
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type K Thermocouple Wire - Extension Grade
Chromel/Alumel PFA Thermocouple Wire 260°C - Extension Grade
AWG | Nominal Conductor Diameter | Nominal Thickness mm | Gross | ||
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
