PROFInet AWG 22/1
Application
These cables are designed especially for extreme industrial applications, suitable for Ethernet applications.
Standards
PROFInet Draft

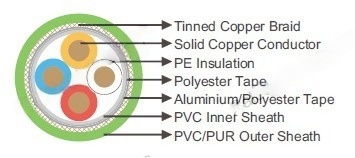

Construction
Conductor | Bare copper 1×22AWG. |
Insulation | PE. |
Cable Element | Star quad. |
Screen 1 | Polyester tape over stranded bundle. |
Screen 2 | Aluminium/Polyester tape. |
Overall Screen | Tinned copper braid. |
Inner Sheath | PVC. |
Sheath | PVC/PUR. |
Technical Data
Operating Temperatures | -40℃~+70℃ |
Minimum Bending Radius | 100mm |
Impedance @1~100MHz | 100Ohm +/-15% |
Maximum Conductor Resistance @20°C | 62Ohm/km |
Nominal Mutual Capacitance | 50nF/km |
Minimum Insulation Resistance | 0.5GOhm×km |
Attenuation @10MHz | 5.2dB/100m |
Attenuation @16MHz | 6.9dB/100m |
Attenuation @62.5MHz | 15dB/100m |
Attenuation @100MHz | 19.5dB/100m |
Next @10MHz | 70dB |
Next @16MHz | 65dB |
Next @62.5MHz | 55dB |
Next @100MHz | 50dB |
ACR @10MHz | 64.8dB |
ACR @16MHz | 58.1dB |
ACR @62.5MHz | 40dB |
ACR @100MHz | 30.5dB |
Flame Retardant | IEC 60332-1 |
Silicone Free | Yes |
UV Resistant | Yes |
Dimensions and Weight
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM2 | MM | KG/KM |
2×2×0.64 (PVC outer sheath) | 6.5 | 67 |
2×2×0.64 (PUR outer sheath) | 6.5 | 64 |
