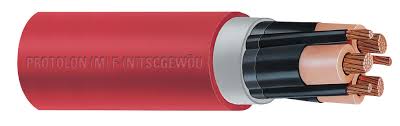

PROTOLON (M)-F Medium Voltage Flexible Cables for Semi-flexible Installation

Design Features: The Building Blocks of Reliability

At the heart of PROTOLON (M)-F medium voltage flexible cables lies a meticulously engineered design that prioritizes both electrical integrity and mechanical resilience. Starting with the conductor, these cables use electrolytic copper that's finely stranded to class 5 standards. This very fine stranding allows for exceptional flexibility, crucial in semi-flexible installations where cables must bend and twist without compromising conductivity.

The insulation is where the magic happens: PROTOLON, a special EPR-based compound rated better than 3GI3, provides superior dielectric strength. EPR, or ethylene propylene rubber, is renowned in cable technology for its excellent electrical properties, resistance to heat, and ability to maintain performance in moist environments. Surrounding this are inner and outer layers of semiconductive rubber, which control the electrical field distribution. This setup minimizes stress concentrations that could lead to breakdowns, ensuring even voltage distribution across the cable's cross-section.

Core identification is straightforward yet effective—natural coloring with black semiconductive rubber and printed white digits (1 to 3) for easy phase recognition during installation. The cores are arranged in a laid-up configuration with three main conductors and a protective-earth conductor split into three segments in the outer interstices. This design not only balances the cable mechanically but also enhances grounding efficiency, reducing the risk of electrical faults in grounded systems.

The inner sheath, also EPR-based with a special compound, acts as a barrier against internal stresses, while the outer sheath—made from a synthetic elastomer like chloroprene rubber (CM), rated better than 5GM3—comes in a vibrant red for visibility. This outer layer is the first line of defense against environmental aggressors, from abrasion to chemicals.

What sets PROTOLON (M)-F apart in semi-flexible installation contexts is its suitability for self-assembly or factory termination. Installers can use compatible material sets to customize lengths on-site, saving time and costs. This modularity is a game-changer for industries with variable setups, like mining or material handling, where quick adaptations are key.

In essence, these design elements converge to create a cable that's not just flexible but intelligently engineered for longevity. By incorporating semiconductive layers and high-grade compounds, PROTOLON (M)-F mitigates common failure modes like partial discharges, which plague lesser cables in medium voltage applications.

Usage Scenarios:

PROTOLON (M)-F medium voltage flexible cables are purpose-built for demanding applications, particularly those involving movement and harsh conditions. Primary usage includes laying alongside conveyor belts, even in shiftable units where the setup relocates frequently. Their semi-flexible nature allows them to follow the belt's path without excessive strain, powering motors and sensors reliably.

In material handling equipment, these cables excel during continuous movement, such as in cable booms or connections between upper and lower cars in stackers or reclaimers. The torsional and bending tolerances ensure they don't fatigue under repetitive motions, maintaining power flow to hydraulic systems or controls.

Another key scenario is connecting submersible pump units, where water resistance and thermal stability prevent corrosion or overheating underwater. In mining sumps or wastewater management, this capability is invaluable, ensuring pumps operate without interruption.

Beyond these, their certifications open doors to specialized fields like offshore platforms or renewable energy farms, where weather resistance combats salt spray or wind-induced vibrations. In semi-flexible installations, they're often used in hybrid setups—part fixed, part mobile—optimizing cost and performance.

Frequently Asked Questions

What makes PROTOLON (M)-F suitable for semi-flexible installation?

Its fine-stranded conductors and torsional stress tolerance allow partial movement without damage, ideal for setups like conveyor belts.

How do these cables handle extreme temperatures?

With a conductor max of 90°C and ambient ranges from -40°C to 80°C fixed, they perform in varied climates.

Are they resistant to environmental factors?

Yes, with UV, ozone, moisture, oil, and fire resistance, they're built for indoor/outdoor use.

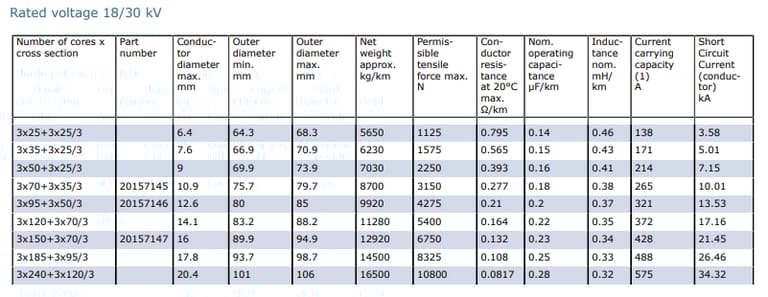

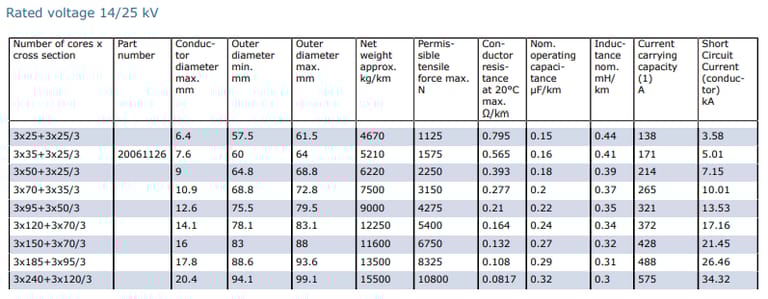

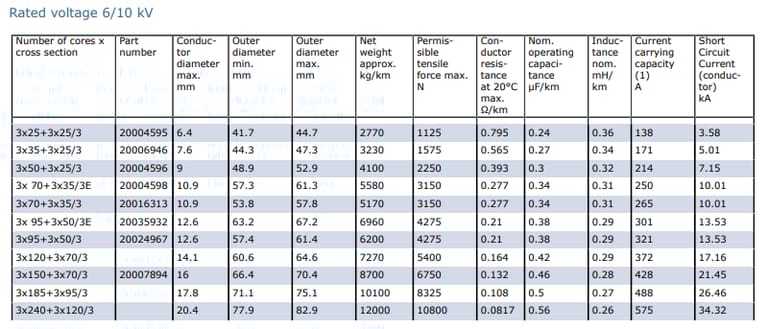

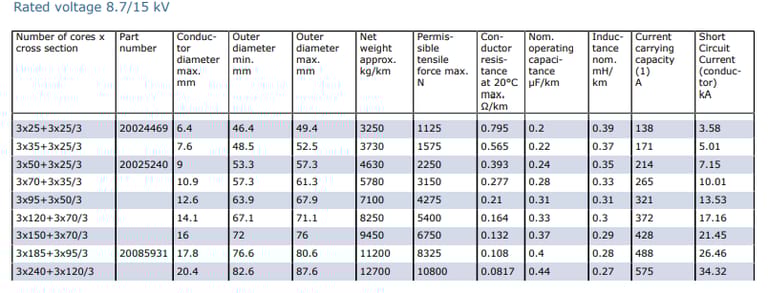

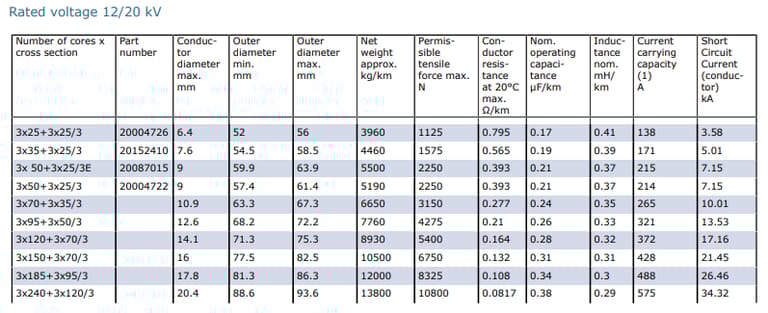

What's the rated voltage, and why does it matter?

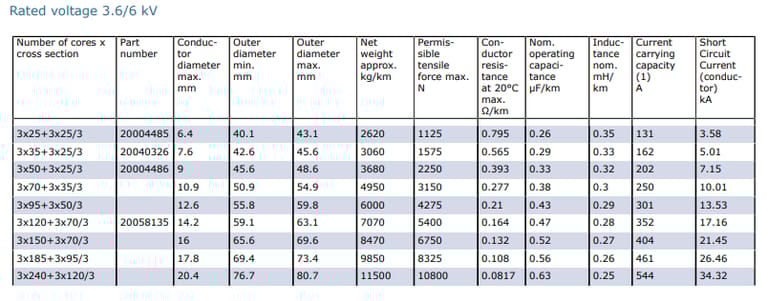

3.6/6 kV rating ensures safe medium voltage transmission, preventing overloads in industrial power systems.

Can they be used in submersible applications?

Absolutely, thanks to EN 50525-2-21 water resistance, perfect for pump connections.

How do they compare to standard cables?

Superior flexibility and durability reduce failures, offering better ROI in dynamic environments.

PROTOLON (M)-F medium voltage flexible cables embody the fusion of innovation and practicality, transforming semi-flexible installations across industries. From technical prowess to real-world resilience, as seen in South Africa's mining challenges, they provide essential solutions for a sustainable future.
