PUR-HF Low Voltage Festoon Cable
PUR-HF Low Voltage Festoon Cable for Festoon Systems, Chain Cables, and Reeling Applications
PUR-HF Low Voltage Festoon Cable
Application | Energy and control cable in festoon systems and chain cable. Suitable as drum reeling cable under moderate mechanical stresses, torsion, tension, and torque. Special polyurethane compound jacket offers protection against hydrolysis, solvents, alkalines, and oils. |
Voltage Rating (Uo/U) | 0.6/1kV |
Temperature Rating | Fixed installation: -50°C to +80°C Mobile operation: -40°C to +80°C |
Minimum Bending Radius | Fixed Application: 6 x Overall Diameter Mobile Applications: 8 x Overall Diameter |
Maximum Tensile Load | 15 N/mm² |
Maximum Torsion | ±25°/m |
Travel Speed | Festoon systems: up to 200m/min Reeling applications: up to 60m/min horizontal Chain systems: up to 200 N/mm |

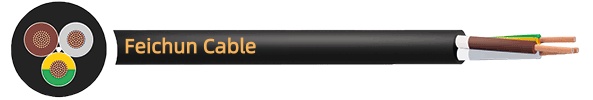

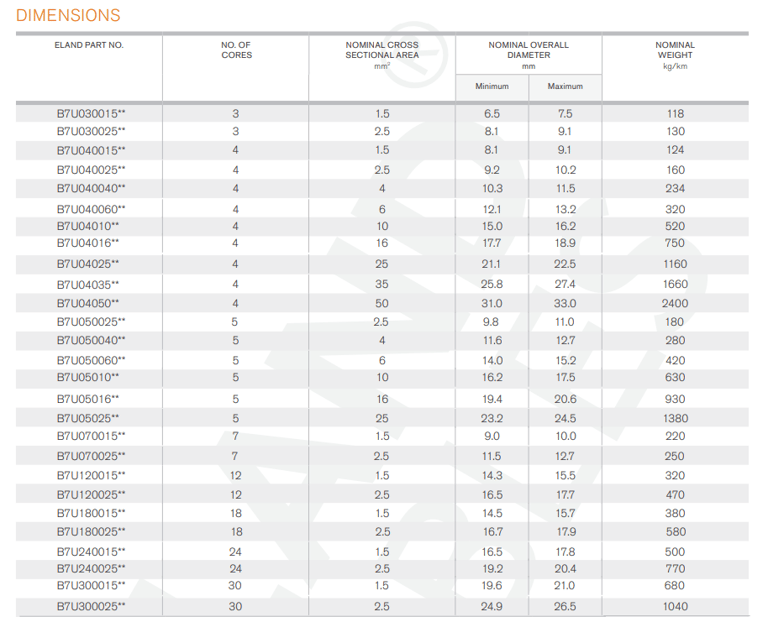

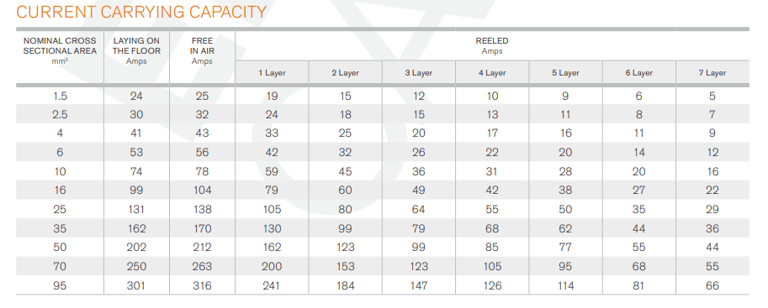

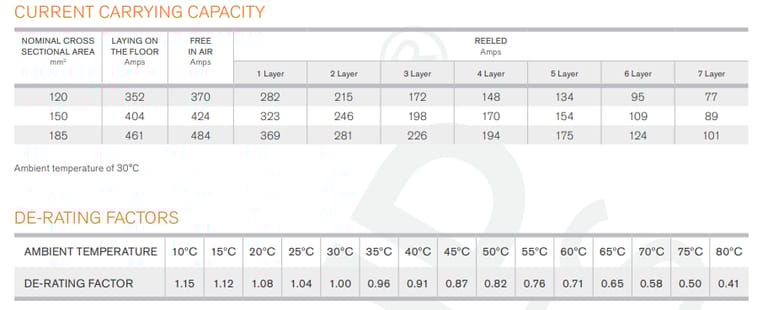

Construction | |
- Conductor | Class 5 flexible stranded tinned copper |
- Insulation | HF (Halogen Free) compound based on polyester |
- Lay Up | Central textile strength member, cores laid up in concentric layers with short length of lay |
- Outer Sheath | PUR HFFR (Polyurethane - Halogen Free, Flame Retardant) |
Core Identification | 3 Core: Green/Yellow, Blue, Brown 4 Core: Green/Yellow, Brown, Black, Grey 5 Core: Green/Yellow, Blue, Brown, Black, Grey From 6 cores: White cores with black numbers |
Sheath Colour | Black, Yellow, or Orange |
Standards | IEC 60228, Generally to IEC 60502, DIN VDE 0472-501, 502, 503, 508, DIN VDE 0472-401, 402, 602, 303, 615, DIN VDE 0250-1, IEC 60502, IEC 60332-1, HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1, DIN VDE 0298-4 |
What is PUR-HF Low Voltage Festoon Cable?
Festoon cables, named for their "festooned" or draped arrangement along moving trolleys, have long been staples in dynamic systems. The PUR-HF variant elevates this concept with cutting-edge materials science. "PUR" refers to the polyurethane outer sheath, renowned for its abrasion resistance, flexibility, and resilience against hydrolysis—a chemical breakdown in moist conditions. The "HF" designation means halogen-free, eliminating toxic gases during fires, aligning with stringent safety standards like those from the International Electrotechnical Commission (IEC).
Rated at 0.6/1kV, the PUR-HF Low Voltage Festoon Cable is ideal for low-voltage applications up to 1,000 volts, powering everything from control circuits to motors. Its primary applications span festoon systems—where cables trail along overhead tracks for cranes and hoists—chain cables in drag chains for robotic arms, and even moderate-stress drum reeling for elevators or stackers. What sets it apart? A special PUR compound jacket that shields against solvents, alkalines, oils, and environmental aggressors, making it a go-to for harsh industrial theaters.
In essence, this cable embodies the fusion of durability and safety. Its flame-retardant (HFFR) properties, combined with low smoke emission, minimize risks in confined spaces, a boon for worker safety. As we explore its specs, you'll see how these features translate to real-world reliability.
Installation Recommendations: Setting the Stage for Success
Installing PUR-HF Low Voltage Festoon Cable demands precision to unlock its potential. Start with site assessment: evaluate travel paths, load dynamics, and environmental factors like dust or chemicals, common in South African mines.
Step-by-Step Guide
Preparation: Unreel slowly to avoid kinks. Use pulleys with radii at least 8x OD for mobile runs. Terminate ends with IP67-rated glands for dust/moisture seals.
Routing: In festoon systems, suspend via trolleys on I-beams or C-rails, ensuring even weight distribution. For chains, bundle loosely (fill factor <60%) to prevent chafing. Reeling drums require even winding, tensioned to avoid slippage.
Fixing and Supports: Secure with strain relief every 1-2m, using non-abrasive clamps. Maintain minimum bend radii—violations accelerate fatigue.
Testing: Post-install, conduct insulation resistance (per DIN VDE 0472-401) and continuity checks. Voltage drop should stay under 3-5% for optimal performance.
Maintenance Recommendations: Prolonging Peak Performance
Maintenance is the cable's best friend, preventing minor wear from escalating. Routine checks—monthly in harsh environs—focus on visuals: inspect for abrasions, cuts, or sheath cracks. Use non-conductive tools; never energize during exams.
Best Practices
Cleaning: Wipe with mild, non-solvent cleaners; PUR resists oils, but avoid harsh chemicals.
Lubrication: For chain applications, apply dry-film lubes sparingly—overuse attracts dust.
Monitoring: Track temperature via thermocouples; exceed +80°C? Investigate overloads.
Replacements: Swap if insulation resistance drops below 100 MΩ/km or visible damage appears.
In reeling setups, balance drums annually to even wear. Digital tools like vibration sensors can predict failures, aligning with Industry 4.0 trends.
Usage Scenarios:
The PUR-HF Low Voltage Festoon Cable shines in motion-heavy realms. In manufacturing, it powers overhead conveyors, snaking through assembly lines at speeds up to 200 m/min. Warehouses deploy it in automated storage cranes, where torsion from pivots tests its ±25°/m limit.
Ports and shipyards favor it for ship-to-shore gantry cranes, reeling under tidal pulls. Mining? It's indispensable for underground hoists and surface stackers, battling dust and damp.
Frequently Asked Questions: Demystifying PUR-HF Festoon Cables
Q: Can PUR-HF cables replace PVC ones in legacy systems?
A: Absolutely—its superior flexibility and chemical resistance make it ideal for upgrades, though check bend radii for compatibility.
Q: How does the halogen-free aspect benefit safety?
A: HF materials emit less smoke and no toxic halogens in fires, crucial for enclosed spaces like mines, per IEC 60332-1.
Q: What's the lifespan in high-torsion apps?
A: Up to 5 million flex cycles with proper install, far outpacing standard cables under ±25°/m twists.
Q: Are custom colors or core counts available?
A: Yes, beyond standard black/yellow/orange sheaths and 3-6+ cores, tailored per DIN VDE 0298-4.
Q: How to handle end-of-life disposal?
A: Recycle copper and PUR via certified programs; HF properties ease environmental compliance.
Q: Is it suitable for outdoor/exposed use in SA climates?
A: Yes—UV-stable PUR withstands +80°C and coastal corrosion, as seen in Durban ports.
The PUR-HF Low Voltage Festoon Cable isn't merely a wire—it's a testament to how material science propels industrial evolution. From its robust specs and layered construction to straightforward installation and vigilant maintenance, it empowers scenarios where motion meets mayhem. South African case studies—from Durban's docks to Rustenburg's depths—illustrate its transformative impact, fostering safer, greener operations.
As industries grapple with electrification and automation, embracing such cables will be key. Whether retrofitting a crane or speccing a new festoon line, the PUR-HF stands ready, bridging power to progress. In a world of constant movement, it's the steady thread holding it all together.
