PUR Sheathed, Halogen Free Data Cable
Application
These halogen free cables are used as drag chain cables for frequent and quick lifting and bending stresses in machine engineering and construction, in robot technology and on permanently moving machine components.
Standards
UL AWM Style 20233
CSA AWM I/II A/B

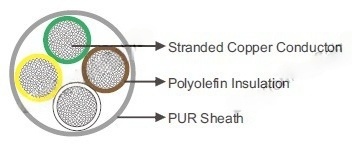

Construction
Conductor | Stranded bare copper, class 6 according to VDE 0295/BS 6360. |
Insulation | Polyolefin. |
Sheath | Full polyurethane sheath TMPU. |
Technical Data
Rated Voltage Uo/U (Um) | 300V |
Operating Temperatures | flexing: -40℃~+80℃; fixed: -50℃~+80℃ |
Minimum Bending Radius | flexing: 5×OD; fixed: 3×OD |
Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
Halogen Free | Yes |
Oil Resistant | Yes |
Ozone, Oxygen Resistant | Yes |
Silicone Free | Yes |
UV Resistant | Yes |
Abrasion Resistance | Yes |
Dimensions and Weight
CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
NO. OF CORES×MM2 | MM | KG/KM |
26AWG | ||
2×0.14 | 3.9 | 22 |
3×0.14 | 4.0 | 24 |
4×0.14 | 4.3 | 29 |
5×0.14 | 4.7 | 33 |
7×0.14 | 5.3 | 47 |
10×0.14 | 6.1 | 57 |
12×0.14 | 6.2 | 63 |
14×0.14 | 6.5 | 72 |
18×0.14 | 7.2 | 80 |
24×0.14 | 8.2 | 110 |
25×0.14 | 8.6 | 115 |
24AWG | ||
2×0.25 | 4.3 | 26 |
3×0.25 | 4.5 | 30 |
4×0.25 | 4.8 | 39 |
5×0.25 | 5.2 | 44 |
7×0.25 | 6.0 | 52 |
10×0.25 | 6.9 | 70 |
12×0.25 | 7.1 | 84 |
14×0.25 | 7.4 | 97 |
18×0.25 | 8.2 | 114 |
24×0.25 | 9.6 | 157 |
25×0.25 | 10.1 | 160 |
22AWG | ||
2×0.34 | 4.6 | 31 |
3×0.34 | 4.8 | 38 |
4×0.34 | 5.2 | 51 |
5×0.34 | 5.6 | 54 |
7×0.34 | 6.5 | 77 |
10×0.34 | 7.5 | 104 |
12×0.34 | 7.7 | 122 |
14×0.34 | 8.1 | 140 |
18×0.34 | 9.2 | 162 |
24×0.34 | 10.7 | 204 |
25×0.34 | 11.2 | 229 |
G: with green-yellow earth core
×: without green-yellow earth core
